- Outlander 400 EFI, 2009
10- Electrical Accessories

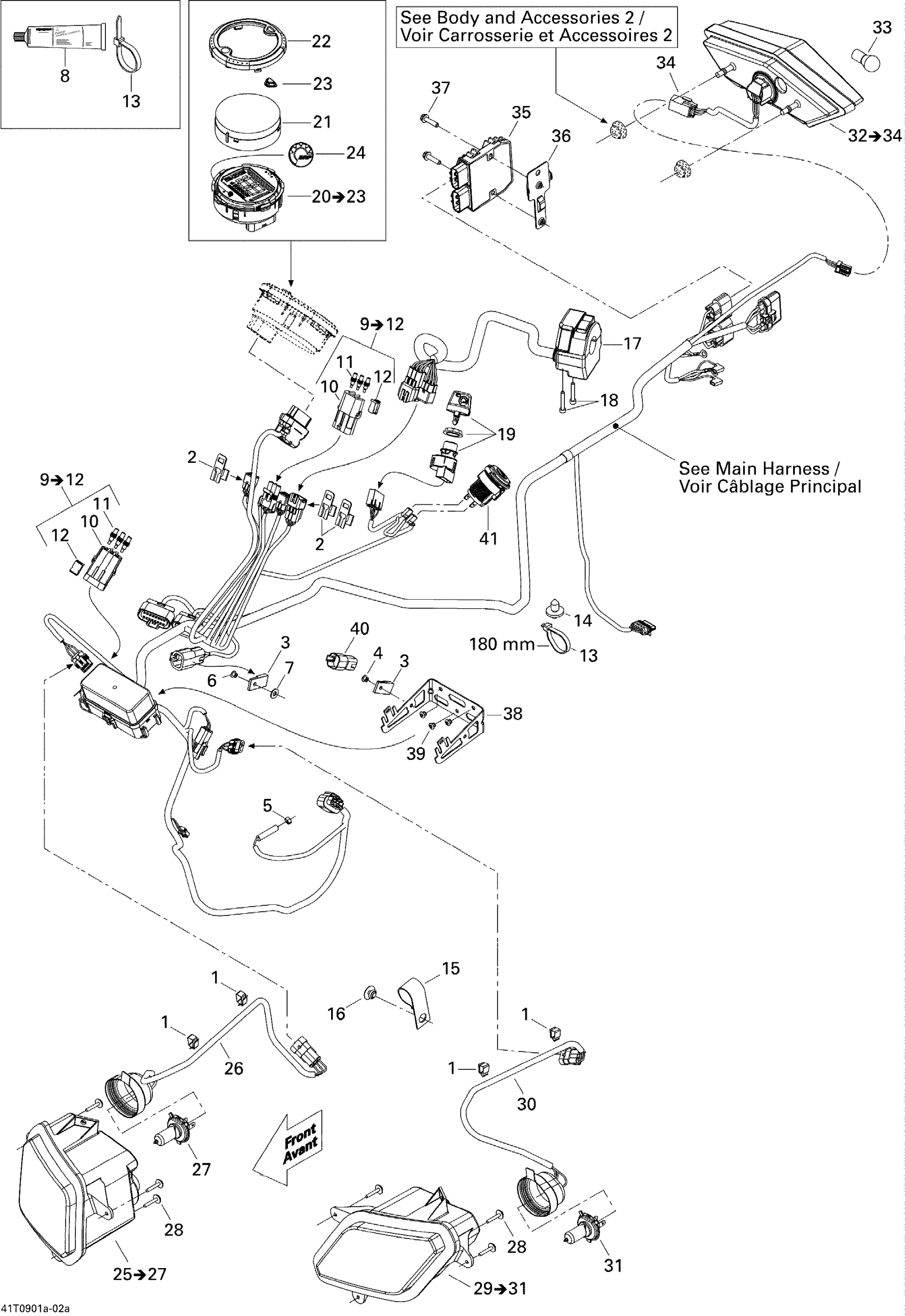

Can-Am Outlander 400 EFI, 2009 10- Electrical Accessories Diagram
#
1
Clip
414227300
Unavailable
2
Housing Support
515175283
Unavailable
3
Clip
270000141
Unavailable
4
Pop Rivet 3/16"
390402300
Unavailable
5
Oetiker Clamp
293650100
Unavailable
6
Pop Rivet 3/16"
390402300
Unavailable
7
Washer
517124300
Unavailable
8
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
9
Connector Ass'y | STD / Includes 7 to 10
710000917
Unavailable
10
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
11
Wire Seal
278000216
Unavailable
12
Clip
710000992
Unavailable
13
Tie Wrap 368 mm
293750008
Unavailable
13
Tie-Rap 180 mm
414115200
Unavailable
13
Tie Wrap 94 mm | 4X4
293750001
Unavailable
14
Mount Dart
293730040
Unavailable
15
CLAMP - Call your local BRP dealership
705600311
Unavailable
16
Pop Rivet 3/16"
390406500
Unavailable
17
Multi-Fonction Handle
710000791
Unavailable
17
Multi function Handle | Europe
710001428
Unavailable
18
Socket Head Screw M5 X 35
205053588
Unavailable
19
Ignition Switch With Key
710002323
Unavailable
20
Speedometer Ass'y | Includes 18 to 21
710003100
Unavailable
21
Lens
415129320
Unavailable
22
Trim Ring
710001416
Unavailable
23
Button
710001473
Unavailable
24
BRP Logo13 mm
704904615
Unavailable
25
RH Headlamp Ass'y | Includes 11 to 13
710000861
Unavailable
25
RH Headlamp Ass'y | Includes 20 to 22
710001496
Unavailable
26
LIGHT HARNESS - Call your local BRP dealership
710000828
Unavailable
27
Bulb, 12V 35/35W
710000871
Unavailable
28
Plastite Screw Type K-40, M4 X 25
250000101
Unavailable
29
LH Headlamp Ass'y | Includes 14 to 16
710000862
Unavailable
29
LH Headlamp Ass'y | Includes 24 to 26
710001497
Unavailable
30
LIGHT HARNESS - Call your local BRP dealership
710000828
Unavailable
31
Bulb, 12V 35/35W
710000871
Unavailable
32
Tail Light Housing Ass'y | Includes 29 to 31
710001203
Unavailable
32
Tail Light Housing Ass'y | Includes 17 to 19
710001204
Unavailable
33
Bulb
520000758
Unavailable
34
Male Housing, 3 Circuits
515175494
Unavailable
35
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
Unavailable
36
RECTIFIER SUPPORT - Call your local BRP dealership
710001262
Unavailable
37
Hexagonal Head Screw
210262050
Unavailable
38
FUSE SUPPORT - Call your local BRP dealership
710002176
Unavailable
39
Pop Rivet 3/16"
390402400
Unavailable
40
Diagnostic Connector
278002704
Unavailable
41
DC Outlet
710001248
Unavailable
