Description

Price

1

Seat Ass'y | Includes 1 to 3, 11, 12, 13

708000753

Unavailable

2

Rubber Stopper

708000759

Unavailable

3

Seat Cover

708000556

Unavailable

4

Bumper Rubber

708000760

Unavailable

5

Latch, Black

708000144

Unavailable

6

Hex. Screw M6 X 110

230061044

Unavailable

7

Spring

708000369

Unavailable

8

Push Nut

732610072

Unavailable

9

Seat Reinforcement

708000629

Unavailable

10

Hex. Flange Screw M6 X 12

210261250

Unavailable

11

REFLECTING SHEET - Call your local BRP dealership

708000650

Unavailable

12

REFLECTING SHEET - Call your local BRP dealership

708000649

Unavailable

13

REFLECTING SHEET - Call your local BRP dealership

708000514

Unavailable

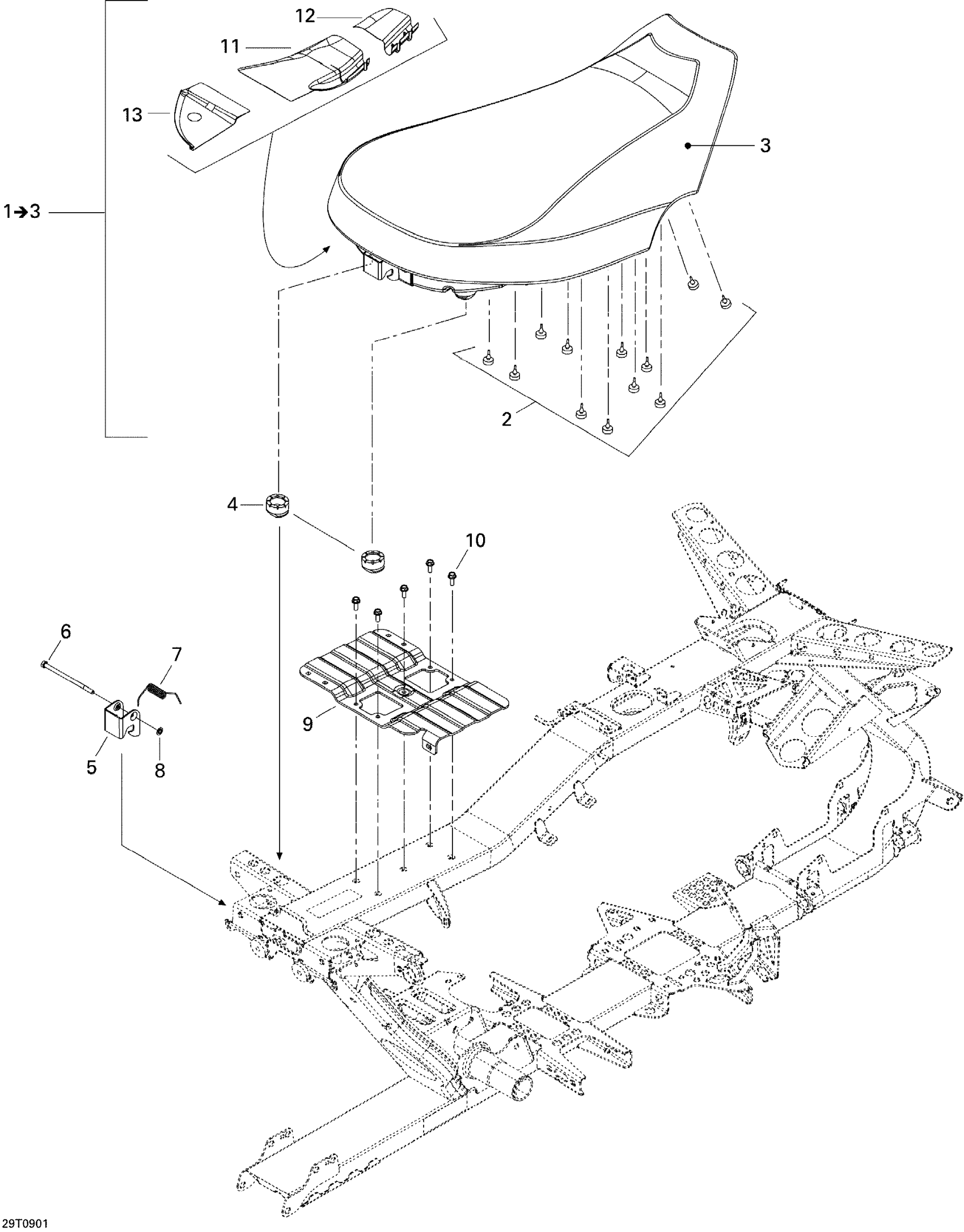

Can-Am Outlander 400 EFI, 2009 09- Seat Diagram

Seat Ass'y | Includes 1 to 3, 11, 12, 13

Rubber Stopper

Seat Cover

Bumper Rubber

Latch, Black

Hex. Screw M6 X 110

Spring

Push Nut

Seat Reinforcement

Hex. Flange Screw M6 X 12

REFLECTING SHEET - Call your local BRP dealership

REFLECTING SHEET - Call your local BRP dealership

REFLECTING SHEET - Call your local BRP dealership
