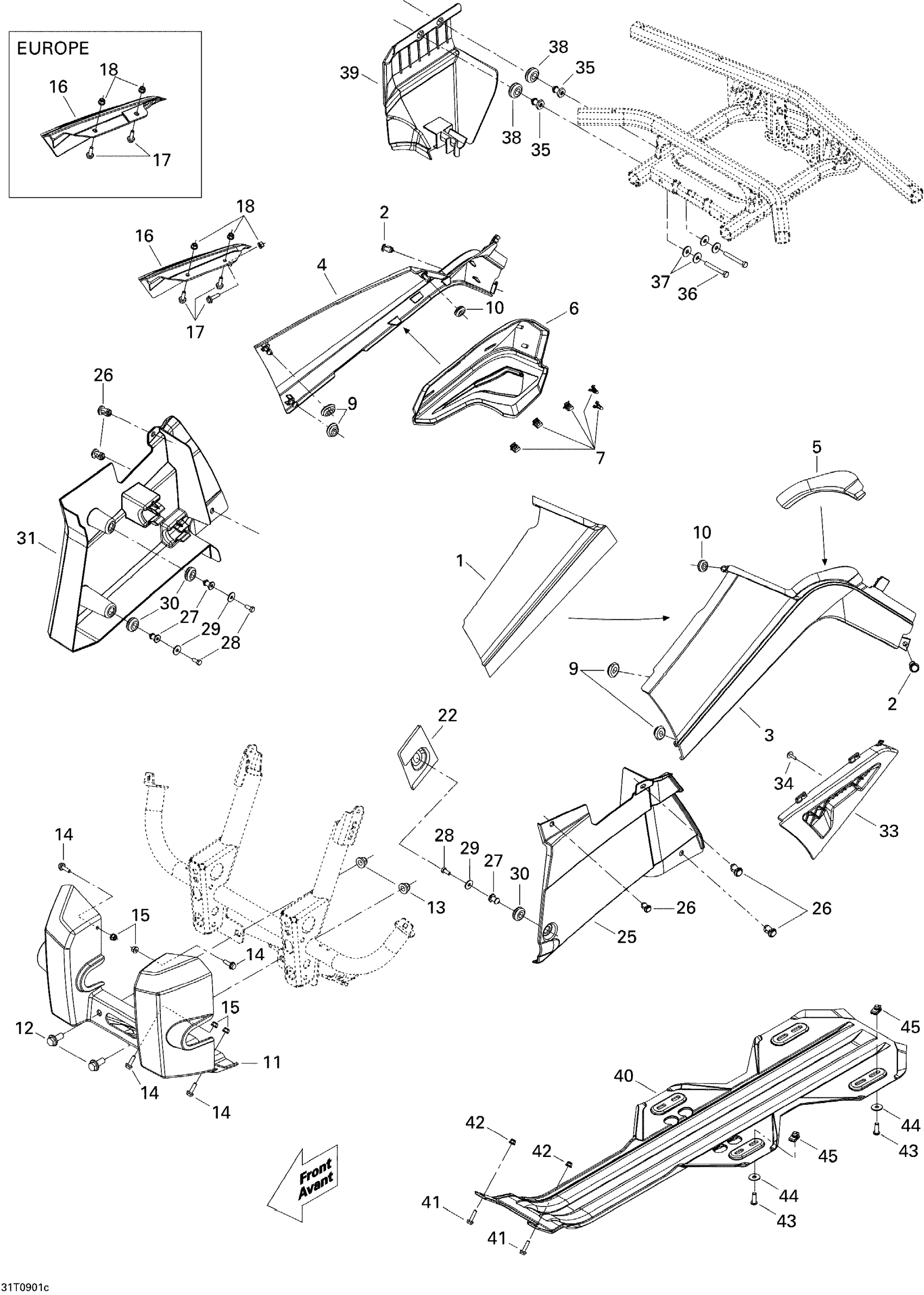

Can-Am Outlander 400 EFI, 2009 09- Body And Accessories 3 Diagram

#

Description
Price

1

REFLECTIVE SHEET - Call your local BRP dealership

705002491

Unavailable

2

Tuflok Plastic Rivet

293150230

Unavailable

3

RED LH SIDE PANEL - Call your local BRP dealership | Viper Red

705003499

Unavailable

3

PANEL_BODY LH B-190 - Call your local BRP dealership | Yellow

705003498

Unavailable

3

LH Side Panel | Black

705003152

Unavailable

4

Red RH Side Panel | Viper Red

705003502

Unavailable

4

PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow

705003501

Unavailable

4

RH SIDE PANEL - Call your local BRP dealership | Black

705003153

Unavailable

5

Reflective Sheet

705002793

Unavailable

6

MUFFLER COVER - Call your local BRP dealership

705002664

Unavailable

7

Edge Clip

517302785

Unavailable

9

Oval Washer

705005156

Unavailable

10

Grommet

705003264

Unavailable

11

GUARD PLATE - Call your local BRP dealership | STD

705003495

Unavailable

12

Hex. Flange Screw M10 X 25

207602544

Unavailable

13

Hex. Flange Elastic Nut M10

233201414

Unavailable

14

Hex. Flange Screw M6 X 20

207662044

Unavailable

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

16

LEVER INDICATOR - Call your local BRP dealership

705001529

Unavailable

16

LEVER INDICATOR - Call your local BRP dealership | Europe

705003028

Unavailable

17

Hex. Flange Screw M6 X 20

207662044

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

22

Reflective Sheet

705003830

Unavailable

25

LH Inner Fender

705000652

Unavailable

26

Tuflok Plastic Rivet

293150230

Unavailable

27

Knob

517303439

Unavailable

28

Torx Screw K50 X 16

250000720

Unavailable

29

Washer | DS 650 X

391301600

Unavailable

30

Grommet

709000582

Unavailable

31

INNER FENDER - Call your local BRP dealership

705002640

Unavailable

33

CONSOLE CAP - Call your local BRP dealership

705002493

Unavailable

34

Screw M4 X 16

250000725

Unavailable

35

Knob

517303439

Unavailable

36

Hex. Screw K50 X 45

241154540

Unavailable

37

Washer | DS 650 X

391301600

Unavailable

38

Grommet

709000582

Unavailable

39

Thread Cover

705004036

Unavailable

40

PLATE_SKID CTRL. KIT - Call your local BRP dealership

715000688

Unavailable

41

Hex. Flange Screw M6 X 25

207662544

Unavailable

42

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

43

Torx Screw M8 X 25, Scotch Grip

250000283

Unavailable

44

Flat Washer 8 mm

234082410

Unavailable

45

Panel Nut M8

250100111

Unavailable
