- Outlander 400 EFI, 2009
09- Body And Accessories 2

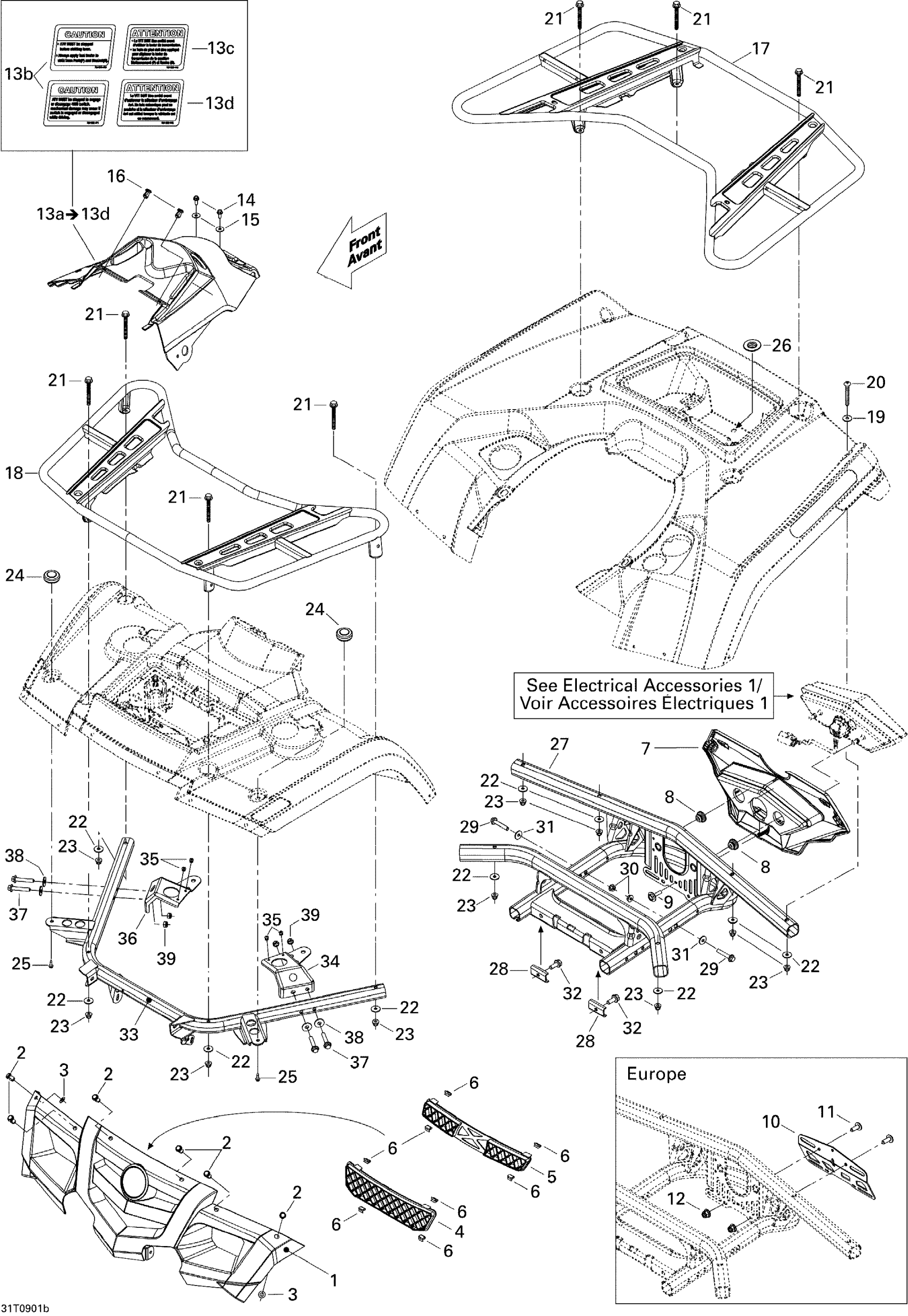

Can-Am Outlander 400 EFI, 2009 09- Body And Accessories 2 Diagram
#
1
FRONT FASCIA, RED - Call your local BRP dealership | Viper Red
705001313
Unavailable
1
FRONT FASCIA, YELLOW - Call your local BRP dealership | Yellow
705001991
Unavailable
1
FRONT FASCIA, BLACK - Call your local BRP dealership | Black
705003198
Unavailable
2
Tuflok Plastic Rivet
293150230
Unavailable
3
Washer
506151252
Unavailable
4
LOWER GRILL - Call your local BRP dealership
705001679
Unavailable
5
UPPER GRILL - Call your local BRP dealership
705001901
Unavailable
6
Clip | Europe Models
517306751
Unavailable
7
Rear Facia
705003840
Unavailable
8
Stopper Rubber
705014429
Unavailable
9
Screw M4 X 16
250000725
Unavailable
10
SUPPORT - Call your local BRP dealership | Europe
705002499
Unavailable
11
Torx Screw M6 X 16
250000755
Unavailable
12
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
13a
BLACK DASH-BOARD KIT - Call your local BRP dealership | Includes 13a to 13d
715000789
Unavailable
13b
Caution Decal, Lever And 4wd Switch | English Version
704900434
Unavailable
13c
Caution Decal, Shifting Lever | French Version
704900475
Unavailable
13d
CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership | French Version
704900476
Unavailable
14
Hex. Flange Screw M6 X 16
210261650
Unavailable
15
Flat Washer
250200082
Unavailable
16
Tuflok Plastic Rivet
293150230
Unavailable
17
Rear Luggage Rack
705002617
Unavailable
18
Front Luggage Rack
705002616
Unavailable
19
Flat Washer
250200040
Unavailable
20
Torx Truss Screw M6 X 50
250000749
Unavailable
21
Hex. Flange Screw M6 X 50
207665044
Unavailable
22
Flat Washer
224061201
Unavailable
23
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
24
RUBBER CAP - Call your local BRP dealership
705002042
Unavailable
25
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
26
CAP - Call your local BRP dealership
414859400
Unavailable
27
Rear Support
705003656
Unavailable
28
U Reinforcement
705003647
Unavailable
29
Hex. Flange Screw M8 X 50
207685044
Unavailable
30
Hex. Flange Elastic Nut M8
233281414
Unavailable
31
Flat Washer 8 mm
234082410
Unavailable
32
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
33
FRONT SUPPORT - Call your local BRP dealership
705003655
Unavailable
34
LH ANCHOR PLATE - Call your local BRP dealership
705002995
Unavailable
35
Pop Rivet 3/16"
390402300
Unavailable
36
RH Anchor Plate
705002997
Unavailable
37
Hex. Flange Screw M8 X 45
207684544
Unavailable
38
Flat Washer 8 mm
234082410
Unavailable
39
Hex. Elastic Stop Nut M8
232581414
Unavailable
