- Outlander 400 EFI, 2009
06- Hydraulic Brakes

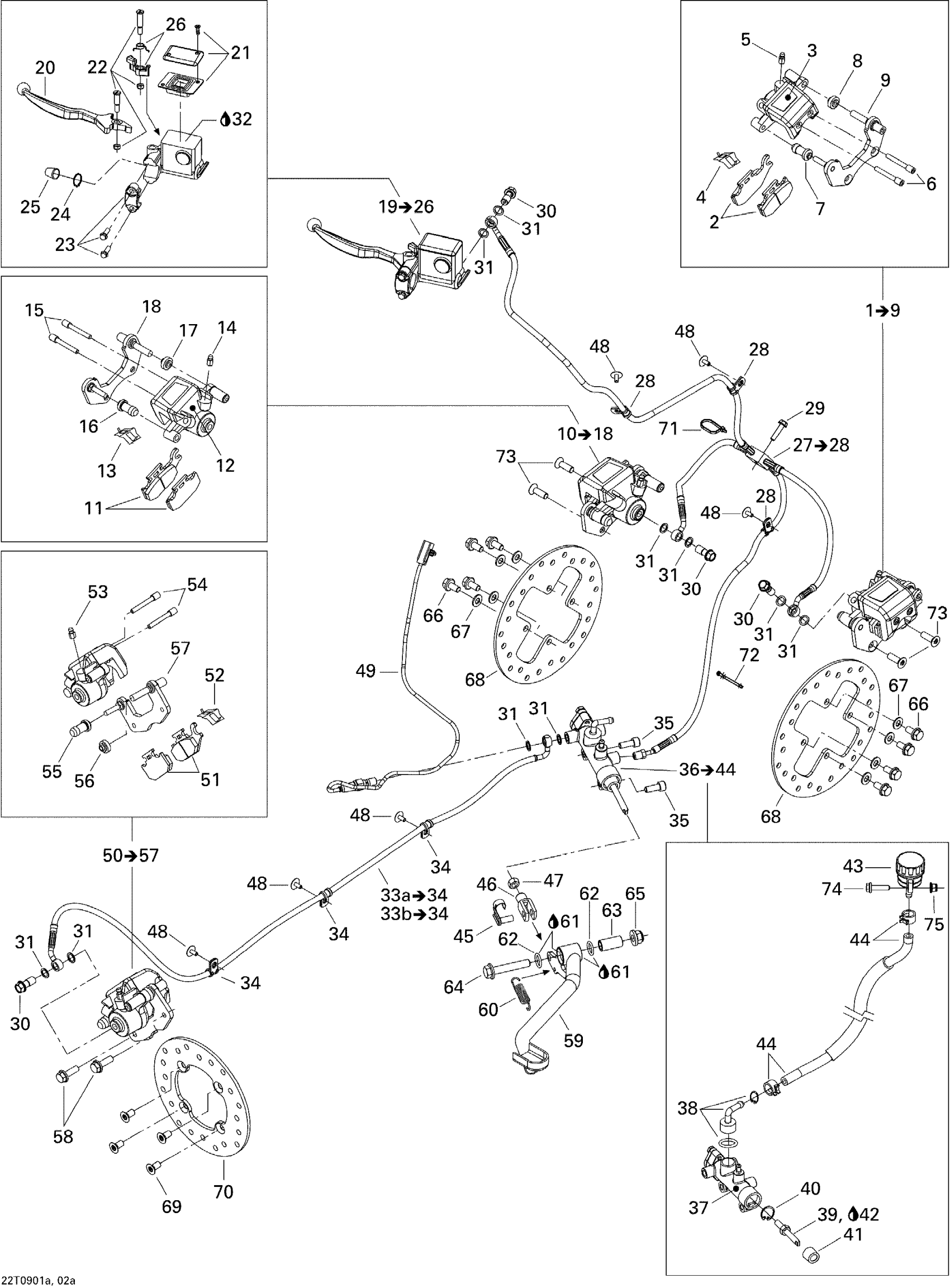

Can-Am Outlander 400 EFI, 2009 06- Hydraulic Brakes Diagram
#
1
RH Caliper | Includes 1 to 9
705600575
Unavailable
2
Brake Pad Kit
705600350
Unavailable
3
Piston Set
705600078
Unavailable
4
Spring
705600079
Unavailable
5
Bleeding Screw
705600080
Unavailable
6
Pin Set (2)
705600081
Unavailable
7
Compression Boot
705600082
Unavailable
8
Compression Boot
705600083
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
LH Caliper | Includes 10 to 18
705600576
Unavailable
11
Brake Pad Kit
705600349
Unavailable
12
Piston Set
705600078
Unavailable
13
Spring
705600079
Unavailable
14
Bleeding Screw
705600080
Unavailable
15
Pin Set (2)
705600081
Unavailable
16
Compression Boot
705600082
Unavailable
17
Compression Boot
705600083
Unavailable
18
LH Caliper Support
705600297
Unavailable
19
Front Master Cylinder | Includes 19 to 26
705600844
Unavailable
20
Lever Arm
705600243
Unavailable
21
Cap Set
705600084
Unavailable
22
Brake Lever Bolt Kit
705600246
Unavailable
23
BRACKET KIT - Call your local BRP dealership
705600087
Unavailable
24
CIRCLIP - Call your local BRP dealership
705600088
Unavailable
25
COMPRESSION BOOT - Call your local BRP dealership
705600089
Unavailable
26
PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership
705600477
Unavailable
27
Front Hose | Includes 28 to 29
705600925
Unavailable
28
Clamp
293650256
Unavailable
29
Hexagonal Head Screw
210262050
Unavailable
30
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
31
Copper Washer
705601628
Unavailable
32
HYDRAULIC OIL - Call your local BRP dealership
293600131
Unavailable
33a
Rear Hose | Includes 34 to 35
705600929
Unavailable
33b
REAR HOSE - Call your local BRP dealership | Includes 34 to 35
705600581
Unavailable
34
Clamp
293650256
Unavailable
35
Socket Head Screw M8 X 20, Scotch Grip
250000136
Unavailable
36
MASTER CYLINDER - Call your local BRP dealership | Includes 37 to 45
705600543
Unavailable
37
Piston Set
705600255
Unavailable
38
PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership
705600064
Unavailable
39
Not Available As Spare Part - Friction Washer
Unavailable
40
Circlip
705600068
Unavailable
41
Compression Boot
705600090
Unavailable
42
Not Available As Spare Part - Friction Washer
Unavailable
43
Oil Tank, Brake Fluid Reservoir
705600182
Unavailable
44
OIL HOUSING HOSE - Call your local BRP dealership
705600262
Unavailable
45
Pin Kit
219702305
Unavailable
46
Yoke
705600100
Unavailable
47
Hex. Nut M8
232081414
Unavailable
48
Pop Rivet 3/16"
390406500
Unavailable
49
Switch
710003837
Unavailable
50
Rear Caliper | Includes 48 to 56
705600577
Unavailable
51
LH Brake Pad Kit
705600398
Unavailable
52
Spring
705600079
Unavailable
53
Bleeding Screw
705600080
Unavailable
54
Pin Set (2)
705600081
Unavailable
55
Compression Boot
705600082
Unavailable
56
Compression Boot
705600083
Unavailable
57
LH CALIPER SUPPORT - Call your local BRP dealership
705600298
Unavailable
58
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
Unavailable
59
BRAKE PEDAL, BLACK - Call your local BRP dealership
705601154
Unavailable
60
BREAK PEDAL SPRING - Call your local BRP dealership
705600098
Unavailable
61
Synthetic Grease, 400 G
293550010
Unavailable
62
O-RING - Call your local BRP dealership
293300053
Unavailable
63
SPACER - Call your local BRP dealership
705600283
Unavailable
64
Hex. Flange Screw M10 X 55
207605544
Unavailable
65
Hex. Flange Elastic Nut M10
233201414
Unavailable
66
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
67
Conical Spring Washer M8
234281474
Unavailable
68
Disk Brake
705600603
Unavailable
69
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
70
Disk Brake
705600604
Unavailable
71
Tie Wrap 142 mm
293750002
Unavailable
72
Tie-Rap 180 mm
414115200
Unavailable
73
Torx Screw M8 X 25, Scotch Grip
250000143
Unavailable
74
Hex. Flange Screw M6 X 25
207662544
Unavailable
75
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
