10- Main Harness

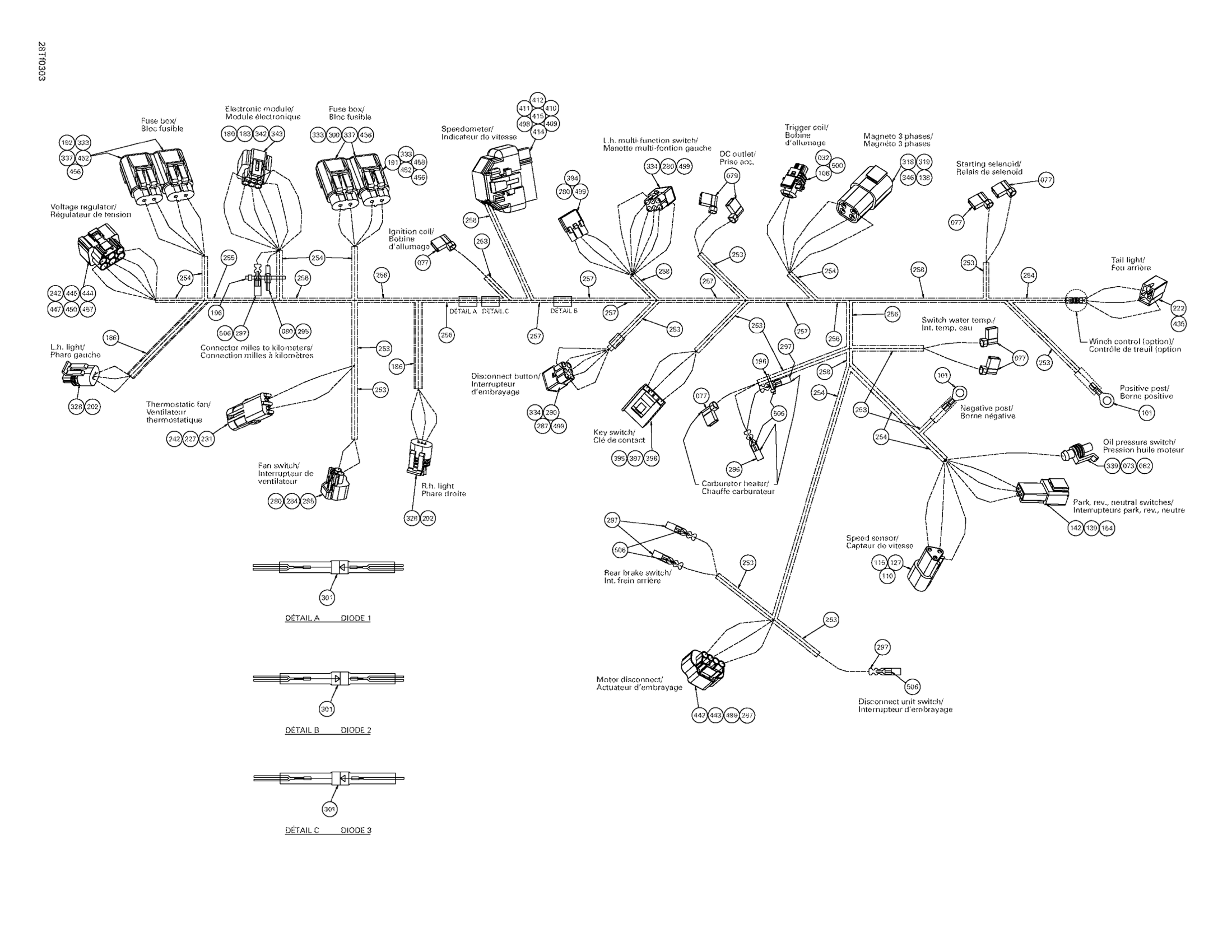

Can-Am Outlander 400, 2003 10- Main Harness Diagram
#
1
Harness ass'y | Includes 1 - 506.
710000265
Unavailable
32
Female Terminal
278000998
Unavailable
62
Female Terminal
278001014
Unavailable
73
Wire Seal
278001013
Unavailable
77
Female Terminal
409010300
Unavailable
79
Female Terminal
710000038
Unavailable
80
Male Terminal
278000230
Unavailable
101
Open Barrel Terminal
278001392
Unavailable
106
Male Housing, 2 Circuits
278001005
Unavailable
110
Male Terminal
278000631
Unavailable
115
Male Housing
278002378
Unavailable
127
Male Lock, 3 Circuits
409207600
Unavailable
138
Sealing Cap
293000052
Unavailable
139
MALE TERMINAL - Call your local BRP dealership
409014800
Unavailable
142
MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership
710000044
Unavailable
154
MALE LOCK, 3 CIRCUITS - Call your local BRP dealership
710000043
Unavailable
180
FEMALE TERMINAL - Call your local BRP dealership
278001638
Unavailable
183
WIRE SEAL - Call your local BRP dealership
710000189
Unavailable
186
Vinyl Tubing, Low Temp 3000Mm Long
219704424
Unavailable
191
Fuse, 30 Amperes
410917200
Unavailable
192
Fuse, 20 Amperes
409003900
Unavailable
196
Tie Wrap 142 mm
293750002
Unavailable
202
Female Terminal
278001114
Unavailable
218
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
222
Female Housing
409204300
Unavailable
227
Male Terminal
409004300
Unavailable
231
Female Housing, 2 Circuits
278000217
Unavailable
242
Wire Seal
278000218
Unavailable
253
Tubing 6 Mm 3000Mm Long
219704425
Unavailable
254
Was 409901700 Tubing (9 mm)
219704399
Unavailable
255
Was 409901800 Tubing (13 mm)
219704400
Unavailable
256
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
257
Was 409901600 Tubing 19mm
219704398
Unavailable
258
Tubing 10 MM 1000MM Long
219704407
Unavailable
280
Female Terminal
409012100
Unavailable
284
Seal
409012300
Unavailable
285
HOUSING-TAB - Call your local BRP dealership
710000078
Unavailable
287
Cap
710000080
Unavailable
295
Insulated Sheath
278001008
Unavailable
296
Insulated Sheath
278000770
Unavailable
297
Insulated Sheath
278001007
Unavailable
300
Fuse, 15 Amperes
278000343
Unavailable
301
Not Available As Spare Part - Friction Washer
Unavailable
318
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
278001477
Unavailable
319
Male Terminal
515175568
Unavailable
328
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
278001467
Unavailable
333
Fuse Holder
278001325
Unavailable
334
Female Housing, 6 Circuits
710000081
Unavailable
337
Female Terminal
710000113
Unavailable
339
Male Housing, 1 Circuit
278001012
Unavailable
342
FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710000190
Unavailable
343
LOCK, 6 CIRCUITS - Call your local BRP dealership
710000191
Unavailable
346
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
278001478
Unavailable
394
Female Terminal Housing, 3 Circuits
710000275
Unavailable
395
Female Terminal
710000274
Unavailable
396
Female Terminal Housing, 4 Circuits
710000272
Unavailable
397
Lock, 4 Circuits
710000273
Unavailable
409
Plug
515175812
Unavailable
410
Female Housing, 24 Circuits
515175801
Unavailable
411
Retainer Block
515175802
Unavailable
412
Wire Seal
515175803
Unavailable
414
LOCK - Call your local BRP dealership
515175805
Unavailable
415
Female Terminal
515175806
Unavailable
435
Not Available As Spare Part - Friction Washer
Unavailable
442
Male Housing, 4 Circuits
710000329
Unavailable
443
Female Terminal
710000335
Unavailable
444
MALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership
710000336
Unavailable
445
JOINT SEAL - Call your local BRP dealership
710000337
Unavailable
447
SECONDARY LOCK - Call your local BRP dealership
710000339
Unavailable
450
CAP - Call your local BRP dealership
710000343
Unavailable
452
HOUSING COVER - Call your local BRP dealership
710000342
Unavailable
456
Cushion
278000805
Unavailable
457
FEMALE TERMINAL - Call your local BRP dealership
710000356
Unavailable
458
Female Terminal
710000357
Unavailable
498
Female Housing
710000399
Unavailable
499
Wire Seal
710000402
Unavailable
500
WIRE SEAL - Call your local BRP dealership
710000403
Unavailable
506
Female Terminal
710000421
Unavailable
