09- Body And Accessories, Rear View

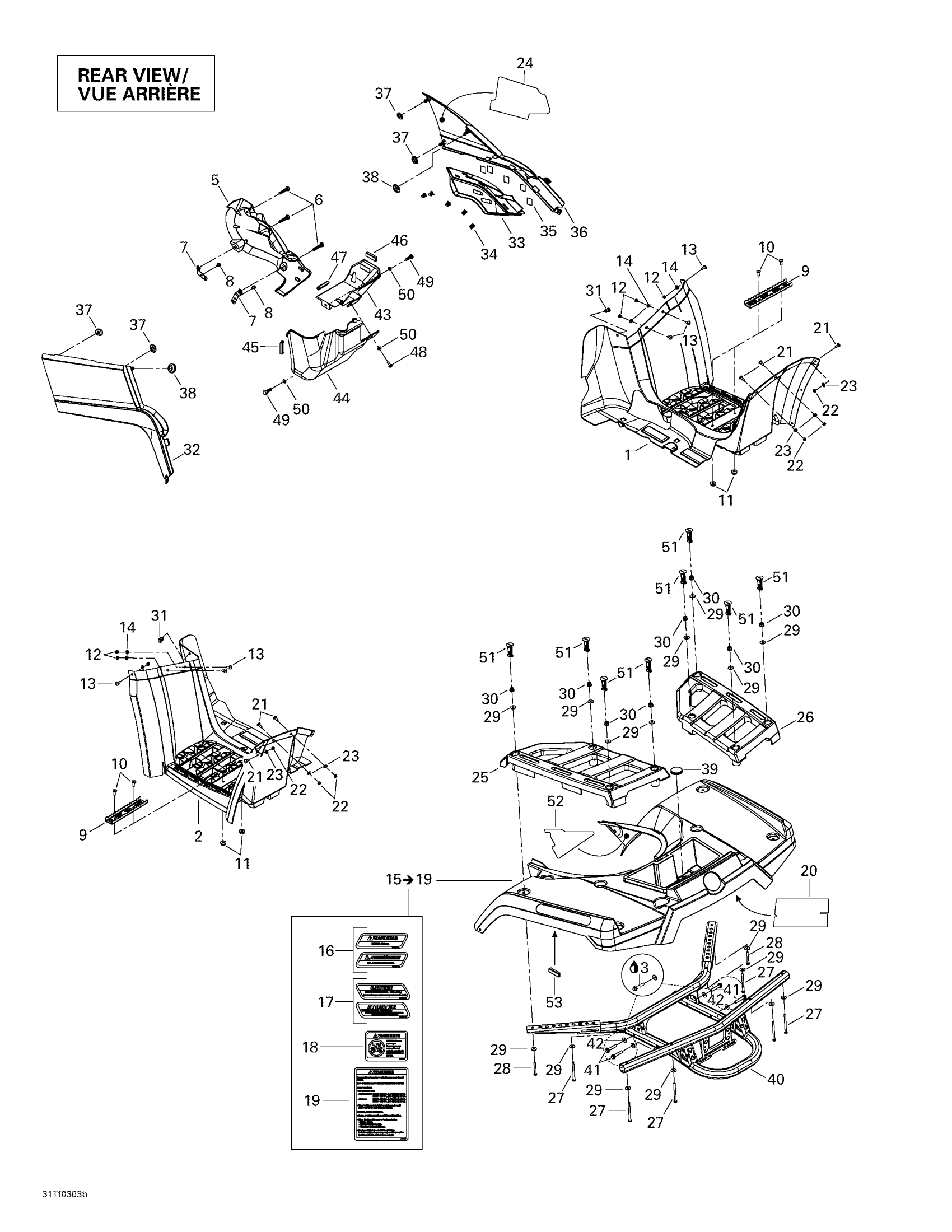

Can-Am Outlander 400, 2003 09- Body And Accessories, Rear View Diagram
#
1
RH Footboard
705000417
Unavailable
2
LH Footboard
705000427
Unavailable
3
Loctite 243, 10 ml
293800060
Unavailable
4
Warning label, Tire pressure | Tire pressure (english)
704900472
Unavailable
5
Engine Cover
705000514
Unavailable
6
Hex. Flange Screw M6 X 16
210261650
Unavailable
7
Engine Cover Support
705003646
Unavailable
8
Hex. Forming Screw M6 X 10
210261050
Unavailable
9
Footrest
705003648
Unavailable
10
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
11
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
12
Elastic Stop Nut M6
232561414
Unavailable
13
TRUSS PHILLIPS SCREW M6 X 16 - Call your local BRP dealership
211000121
Unavailable
14
Flat Washer
250200082
Unavailable
15
REAR FENDER KIT, RED - Call your local BRP dealership | Includes 27 to 36 / Viper Red
703500272
Unavailable
16
Warning Decal,, Do Not Sit | English Version
704900483
Unavailable
17
Warning Decal, Load | English Version
704901089
Unavailable
18
WARNING DECAL, PASSENGER - Call your local BRP dealership
704900005
Unavailable
19
Warning label, Tire pressure | Tire pressure (english)
704900472
Unavailable
20
Reflective Sheet
705000715
Unavailable
21
TRUSS PHILLIPS SCREW M6 X 16 - Call your local BRP dealership
211000121
Unavailable
22
Elastic Stop Nut M6
232561414
Unavailable
23
Flat Washer
250200082
Unavailable
24
REFLECTIVE SHEET - Call your local BRP dealership
705000750
Unavailable
25
LH REAR LUGGAGE RACK - Call your local BRP dealership
705000434
Unavailable
26
RH REAR LUGGAGE RACK - Call your local BRP dealership
705000435
Unavailable
27
Hex. Screw M6 X 80
207168044
Unavailable
28
HEX. SCREW M6 X 50 - Call your local BRP dealership
207165044
Unavailable
29
Flat Washer
224061201
Unavailable
30
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
31
Tuflok Plastic Rivet
293150230
Unavailable
32
RED LH SIDE PANEL - Call your local BRP dealership | Viper Red
705003499
Unavailable
33
Muffler Cover
705000689
Unavailable
34
Edge Clip
517302785
Unavailable
35
Heat Shield | Europe
517305451
Unavailable
36
Red RH Side Panel | Viper Red
705003502
Unavailable
37
Oval Washer
705005156
Unavailable
38
Grommet
709000582
Unavailable
39
Rubber Cover
570041600
Unavailable
40
Rear support
705000442
Unavailable
41
Hex. Flange Screw M8 X 45
207684544
Unavailable
42
Flat Washer 8 mm
234082410
Unavailable
43
RH TANK PROTECTOR - Call your local BRP dealership
705000554
Unavailable
44
LH Tank Protector
705000555
Unavailable
45
Was 293200017 Neoprene Seal
219704365
Unavailable
46
Was 293200017 Neoprene Seal
219704365
Unavailable
47
Was 293200017 Neoprene Seal
219704365
Unavailable
48
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
49
Hex. Flange Screw M6 X 16
210261650
Unavailable
50
Flat Washer
250200082
Unavailable
51
Protection Plug
705000656
Unavailable
52
Reflective Sheet
705000714
Unavailable
53
Was 293200017 Neoprene Seal
219704365
Unavailable
