09- Body And Accessories, Front View

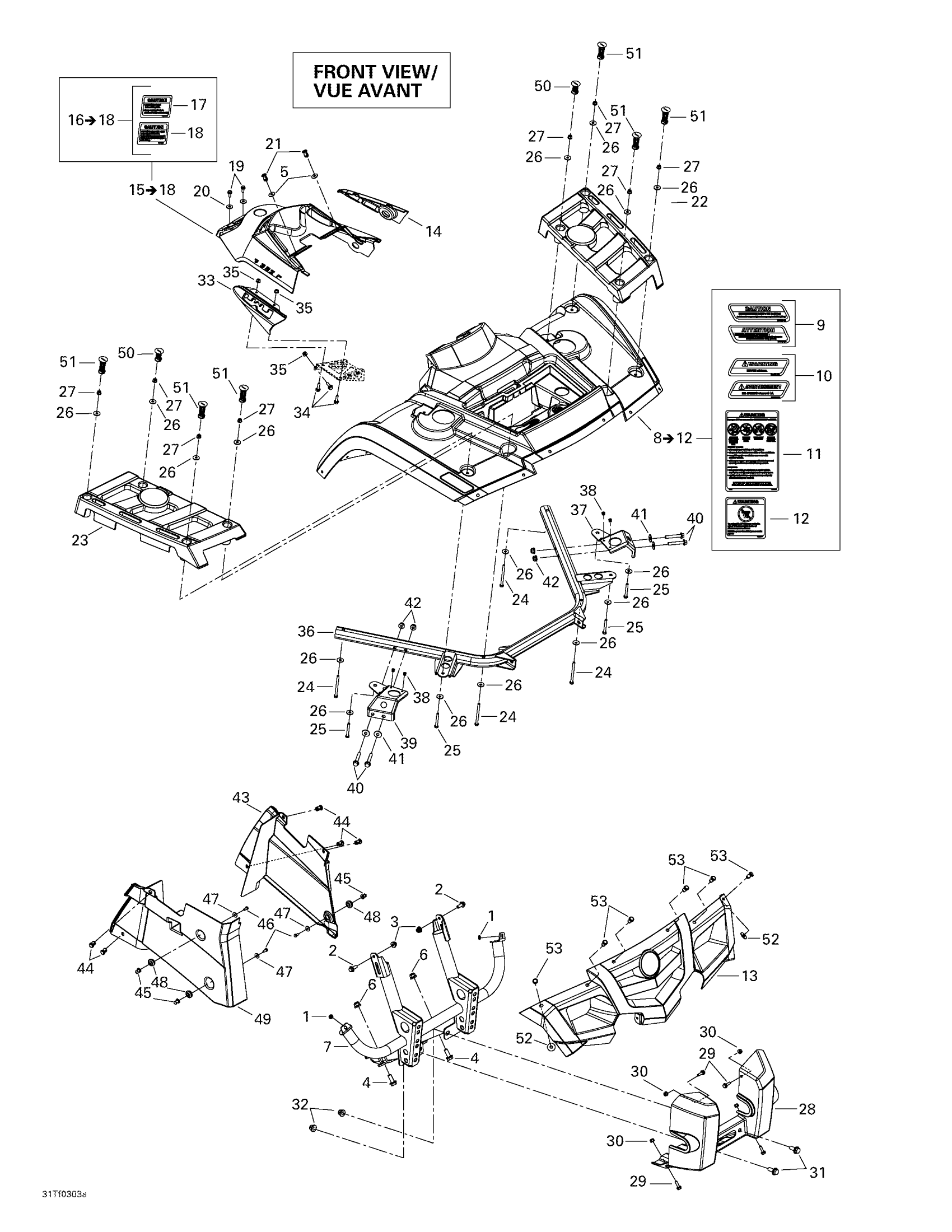

Can-Am Outlander 400, 2003 09- Body And Accessories, Front View Diagram
#
1
Push Nut
732610072
Unavailable
2
Hex. Flange Screw M8 X 20
207682044
Unavailable
3
Hex. Flange Elastic Nut M8
233281414
Unavailable
4
Hex. Flange Screw M10 X 25
207602544
Unavailable
5
Flat Washer 8 mm
234082410
Unavailable
6
Hex. Flange Elastic Nut M10
233201414
Unavailable
7
BUMPER F KIT - Call your local BRP dealership
715900097
Unavailable
8
RED FRONT FENDER KIT - Call your local BRP dealership
715002318
Unavailable
9
Warning Decal,, Do Not Sit | English Version
704900483
Unavailable
10
Warning Decal, Load | English Version
704901089
Unavailable
11
Warning Decal, Death And Injuries | English version
704900001
Unavailable
12
Warning Decal, Under 16 Years Old
704900011
Unavailable
13
Front Fascia, Viper Red | Viper Red
705000432
Unavailable
14
Valve Support
705000654
Unavailable
15
Console, Viper Red | Includes 4 to 7 / Viper Red
703500266
Unavailable
16
Caution Decal, Lever And 4wd Switch | English Version
704900434
Unavailable
17
Caution Decal, Lever And 4wd Switch | English Version
704900434
Unavailable
18
Caution Decal, Lever And 4wd Switch | English Version
704900434
Unavailable
19
Hex. Flange Screw M6 X 16
210261650
Unavailable
20
Flat Washer
250200082
Unavailable
21
Tuflok Plastic Rivet
293150230
Unavailable
22
LH FRONT LUGGAGE RACK - Call your local BRP dealership
705000436
Unavailable
23
RH FRONT LUGGAGE RACK - Call your local BRP dealership
705000437
Unavailable
24
Hex. Screw M6 X 80
207168044
Unavailable
25
HEX. SCREW M6 X 50 - Call your local BRP dealership
207165044
Unavailable
26
Flat Washer
224061201
Unavailable
27
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
28
GUARD PLATE - Call your local BRP dealership | STD
705003495
Unavailable
29
Hex. Flange Screw M6 X 20
207662044
Unavailable
30
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
31
Hex. Flange Screw M10 X 25
207602544
Unavailable
32
Hex. Flange Elastic Nut M10
233201414
Unavailable
33
LEVER INDICATOR - Call your local BRP dealership
705001529
Unavailable
34
Hex. Flange Screw M6 X 20
207662044
Unavailable
35
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
36
Front support
705000496
Unavailable
37
LH ANCHOR PLATE - Call your local BRP dealership
705000692
Unavailable
38
Pop Rivet 3/16" | DS 650 X
390402000
Unavailable
39
RH Anchor Plate
705002997
Unavailable
40
Hex. Flange Screw M8 X 45
207684544
Unavailable
41
Flat Washer 8 mm
234082410
Unavailable
42
Hex. Elastic Stop Nut M8
232581414
Unavailable
43
LH Inner Fender
705000652
Unavailable
44
Tuflok Plastic Rivet
293150230
Unavailable
45
Knob
517303439
Unavailable
46
Hex. Screw M5 X 12
207151244
Unavailable
47
Washer | DS 650 X
391301600
Unavailable
48
Grommet
709000582
Unavailable
49
INNER FENDER - Call your local BRP dealership
705002640
Unavailable
50
PROTECTION PLUG - Call your local BRP dealership
705000655
Unavailable
51
Protection Plug
705000656
Unavailable
52
Flat Washer 8 mm
234082410
Unavailable
53
Tuflok Plastic Rivet
293150230
Unavailable
