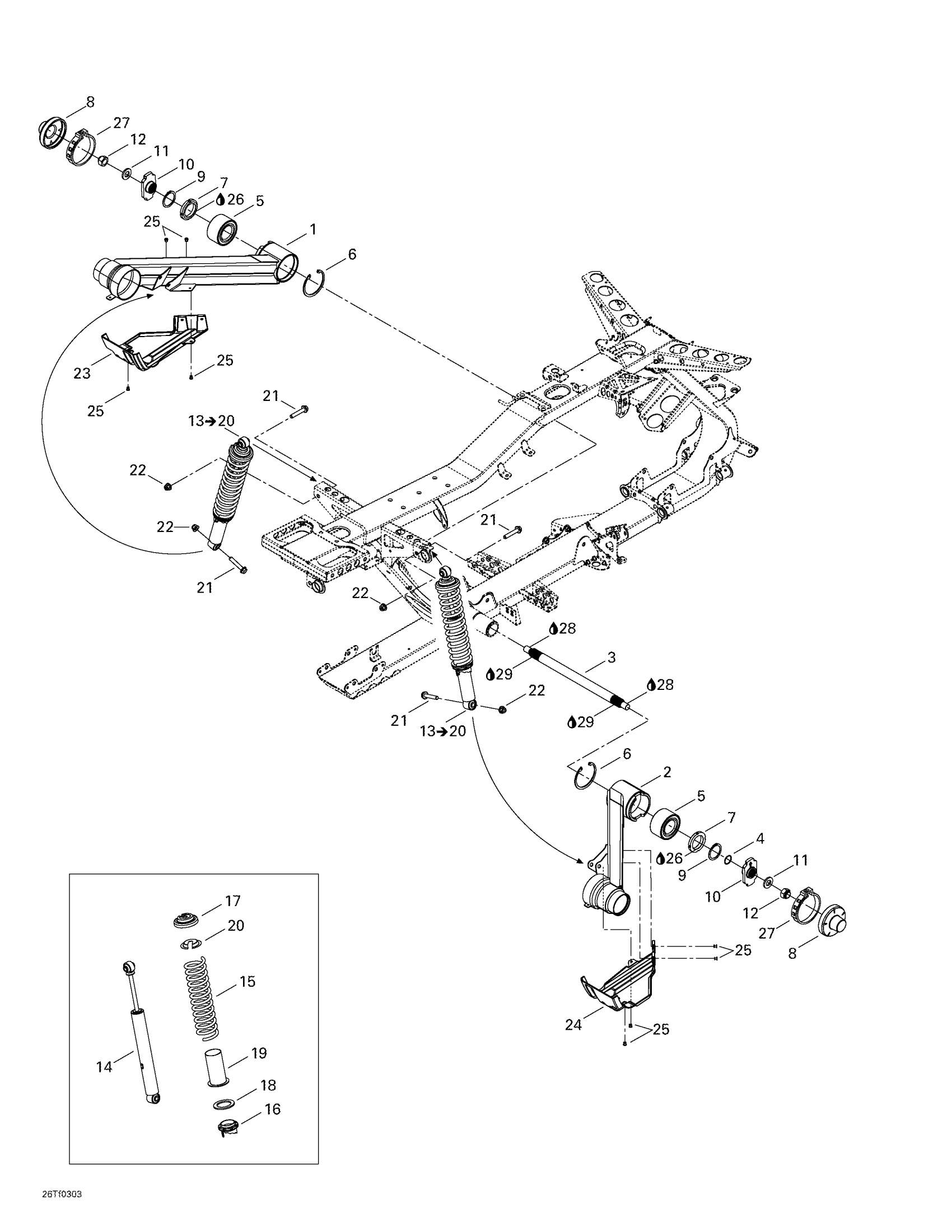

Can-Am Outlander 400, 2003 Rear Suspension Diagram

#

Description
Price

1

LH swing arm

706000277

Unavailable

2

RH swing arm

706000282

Unavailable

3

Sway Bar

706001077

$110.74

4

Retaining Ring

706000251

$6.45

5

Ball Bearing

293350037

$128.43

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Nut

706000221

$23.05

8

Cover

706000749

$15.35

9

Circlip 45 mm

293370027

$4.98

10

Lever

706000548

$36.89

11

WASHER - Call your local BRP dealership

250200019

Unavailable

12

Elastic Stop Nut M18

232591414

$3.48

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Rear Shock

706000391

$171.51

15

SPRING_COMPRESSION B-211 PAINTED - Call your local BRP dealership

706000245

Unavailable

16

Adjuster Ring

706002356

$17.66

17

Spring Stopper

706200881

$10.30

18

SPRING SEAT - Call your local BRP dealership

706000533

Unavailable

19

PROTECTOR - Call your local BRP dealership

503139800

Unavailable

20

Cap

706200785

$4.42

21

Hex. Flange Screw M10 X 55

207605544

$2.78

22

Hex. Flange Elastic Nut M10

233201414

$1.26

23

LH PROTECTOR - Call your local BRP dealership

706000170

Unavailable

24

RH Protector

706000171

Unavailable

25

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

26

Loctite 243, 10 ml

293800060

$20.77

27

Oetiker Clamp

293650162

$8.45

28

Loctite 51211, Maxi-coat, aerosol 12 oz

293800105

Unavailable

29

Synthetic Grease, 400 G

293550010

Unavailable
