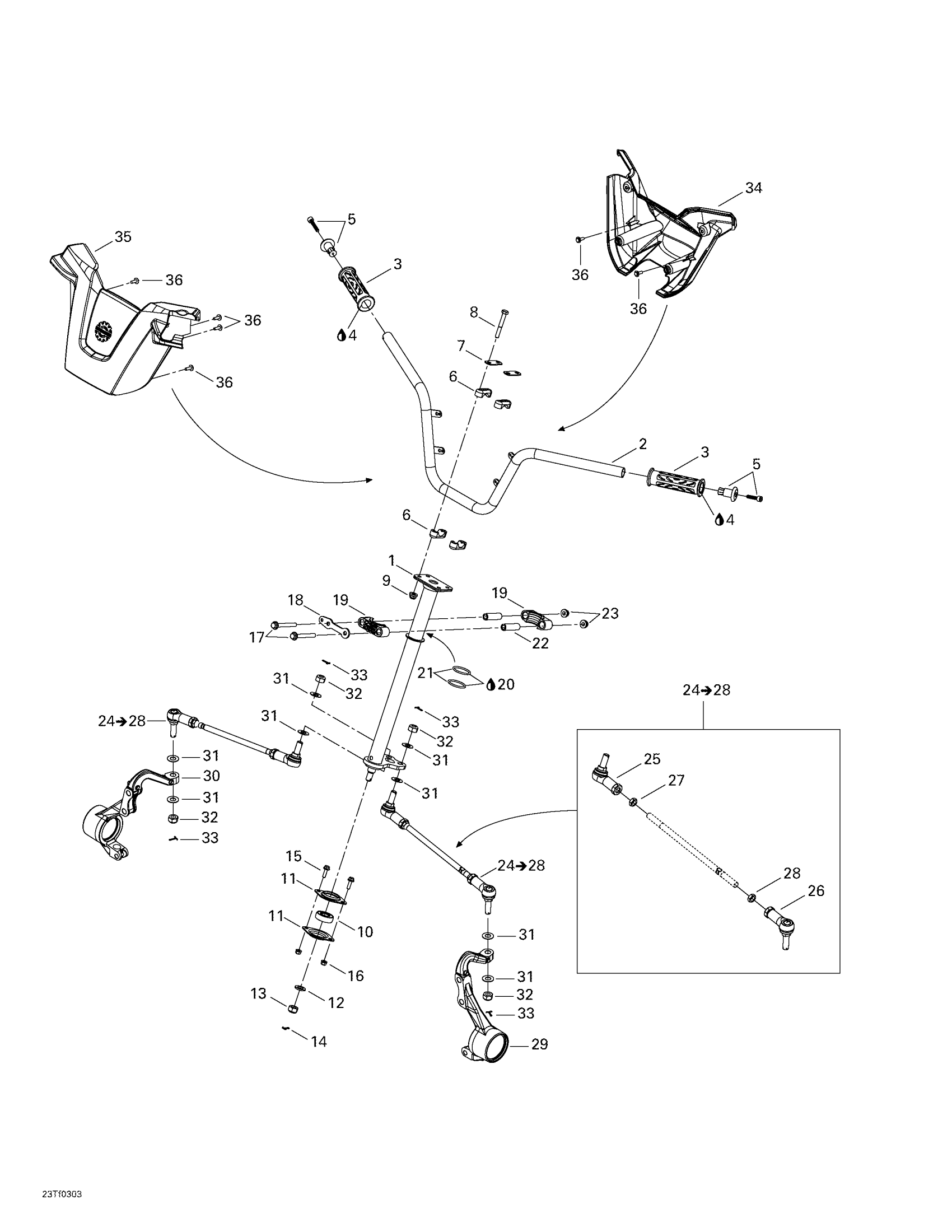

Can-Am Outlander 400, 2003 Steering System Diagram

#

Description
Price

1

Main Tube

709401056

$119.97

2

Steering | STD

709401237

$64.58

3

Handle Grip

709400493

$14.75

4

Loctite 406, 7 Oz

293800100

$36.99

5

END-PIECE - Call your local BRP dealership | DS 650

709400189

Unavailable

6

Steering Support

709400919

$20.74

7

Stiffner

709400509

$4.43

8

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

Unavailable

9

Hex. Flange Elastic Nut M8

233281414

$1.14

10

Ball Bearing

709400439

$18.43

11

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

12

Flat Washer 12 mm

234021410

$0.68

13

Hex. Flange Elastic Nut M12

250000047

$1.56

14

Cotter Pin

211400017

$0.25

15

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

17

Hex. Flange Screw M8 X 70

207687044

$6.11

18

STOPPER PLATE - Call your local BRP dealership

709400053

Unavailable

19

Half Bushing

709400471

$13.59

20

Synthetic Grease, 400 G

293550010

Unavailable

21

O-Ring

293300068

$5.29

22

BUSHING - Call your local BRP dealership

709400072

Unavailable

23

Hex. Flange Elastic Nut M8

233281414

$1.14

24

Tie Rod Ass'y | Includes 21 to 23

709400190

Unavailable

25

Ball Joint, RH Threads

709400487

$50.34

26

LH Ball Joint

709402303

$35.14

27

Nut Hexagonal RH.

232026414

$1.48

28

LH HEX. JAM NUT M12 - Call your local BRP dealership

732610020

Unavailable

29

LH KNUCKLE - Call your local BRP dealership | 4X4

709400132

Unavailable

30

RH KNUCKLE - Call your local BRP dealership | 4X4

709400133

Unavailable

31

Hardened Washer

706200281

$2.34

32

Hex. Flange Elastic Nut M12

250000047

$1.56

33

Cotter Pin

211400013

$0.32

34

Rear Steering Cover

709400204

Unavailable

35

Front Steering Cover

709400205

Unavailable

36

Hex. Plastic Screw M4.8 X 16

243141630

$1.74
