05- Gear Shift

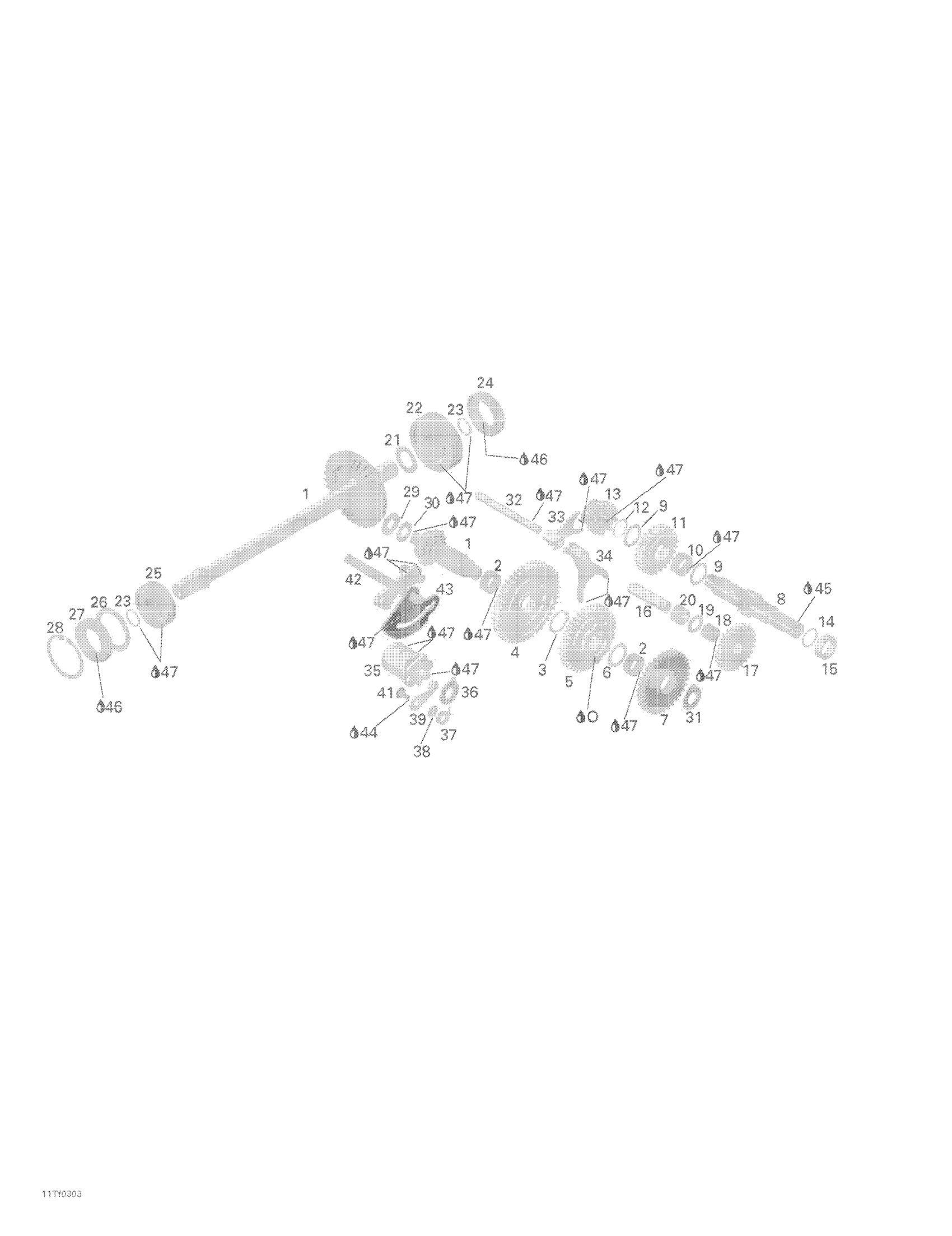

Can-Am Outlander 400, 2003 05- Gear Shift Diagram
#
1
Drive Ass'y | 400HO, Includes 1a to 20
420684220
Unavailable
1
BEVEL GEAR ASS?Y - Call your local BRP dealership
420296535
Unavailable
2
Gear Wheel Set | 400HO, Includes 2a to 7
420281285
Unavailable
2
Needle Bearing
420632070
Unavailable
3
Retaining Ring
420245850
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
COUNTERSHAFT ASS'Y, 11 TEETH - Call your local BRP dealership | 400HO, Includes 8a to 15
420620440
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Circlip
420445302
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
O-Ring
420630040
Unavailable
15
Distance Ring
420247110
Unavailable
16
INTERMEDIATE GEAR SHAFT ASS'Y - Call your local BRP dealership | Includes 16a to 20
420635673
Unavailable
16
Needle Pin
420229600
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Washer Thrust Set
420281300
Unavailable
22
Ball Bearing 6405
420632280
Unavailable
23
O-Ring
420430373
Unavailable
24
Oil Seal
420650682
Unavailable
25
Ball Bearing
420932822
Unavailable
26
DISTANCE RING - Call your local BRP dealership
420247250
Unavailable
27
Oil Seal
420650682
Unavailable
28
RETAINING RING - Call your local BRP dealership
420445070
Unavailable
29
Thrust Washer Set, MAG Side
420281306
Unavailable
30
Axial Needle Bearing
420632300
Unavailable
31
Thrust Washer Set, CVT Side
420281302
Unavailable
32
Pin
420229540
Unavailable
33
Shift Fork
420257332
Unavailable
34
Shift Fork
420257342
Unavailable
35
Shift Drum Ass'y
420257325
Unavailable
36
ISOLATING WASHER - Call your local BRP dealership
420627780
Unavailable
37
Index Spring
420238290
Unavailable
38
BUSHING - Call your local BRP dealership
420227710
Unavailable
39
Index Lever Kit
703500254
Unavailable
39
Index Lever Ass'y
420248328
Unavailable
40
Index Spring
420238290
Unavailable
41
Torx Screw M6 X 16
420241529
Unavailable
42
Shift Shaft Ass'y
420620136
Unavailable
43
Parking Lock Lever
420257316
Unavailable
44
Loctite 243, 10 ml
293800060
Unavailable
45
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
46
Grease, Super Lube
293550030
Unavailable
47
Not Available As Spare Part - Friction Washer
Unavailable
