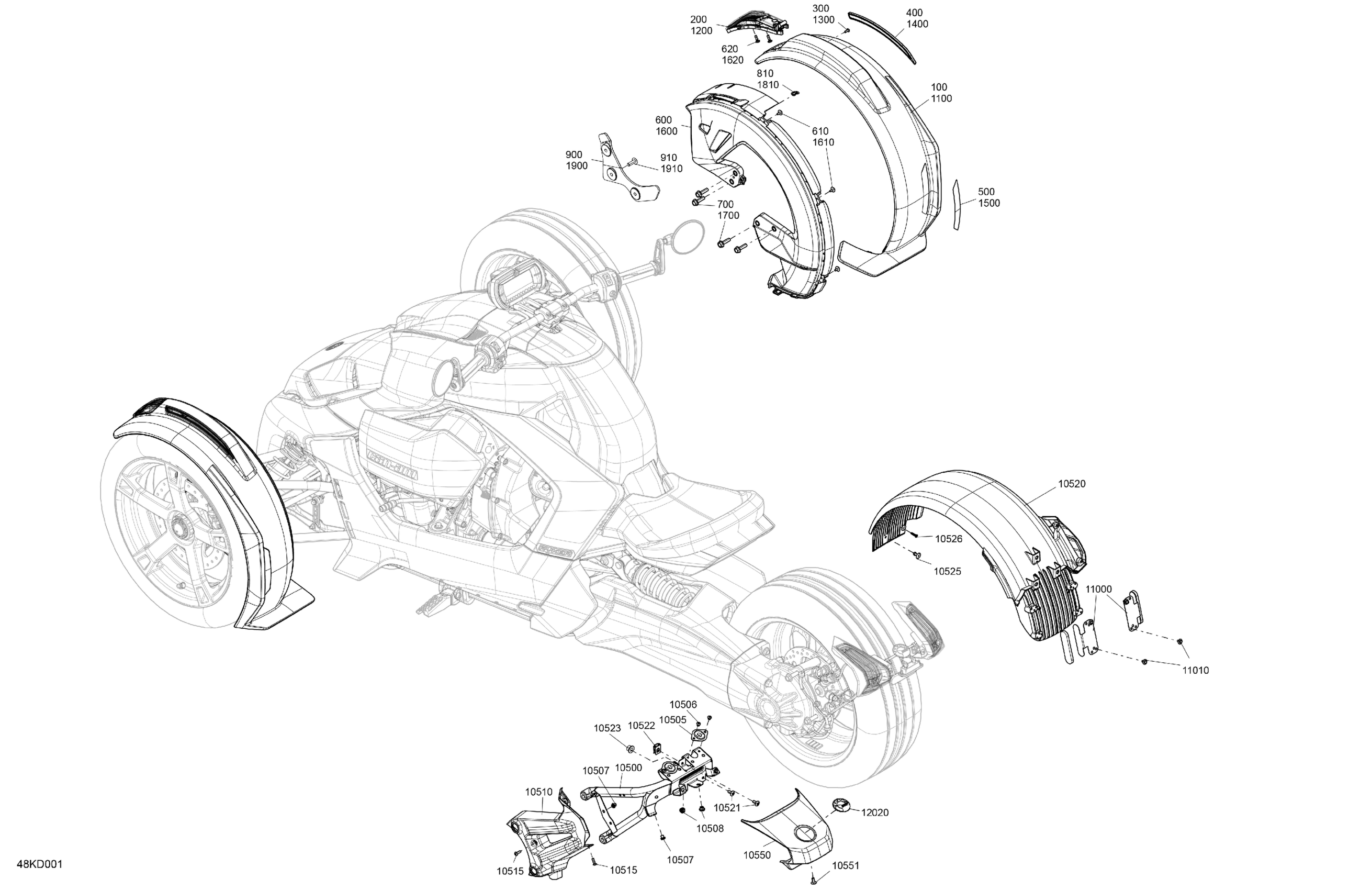

Can-Am RYKER 600 ACE - F1RA - STD - Deep Black, 2024 Body - Fender Kit Diagram

LH Front Fender

705010755

$205.00

LH Front Position Light

710007008

$120.00

Torx Truss PT K40 x 12

250001131

$1.74

Yellow, LH Reflector

705012404

$18.00

Rear Reflector, Front Fender

705012406

$5.00

LH Front Fender Support

705017326

$115.00

Plastite Screw M4 X 10

250000805

$1.74

Torx Screw K50 X 16

250000720

$1.39

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

Clip Bracket Connector (edge)

409210100

$2.00

LH Front Fender Trim

705018433

$8.00

Torx Truss PT K40 x 12

250001131

$1.74

RH Front Fender

705010756

$140.00

RH Front Position Light

710007009

$120.00

Torx Truss PT K40 x 12

250001131

$1.74

Yellow, RH Reflector

705012405

$18.00

Rear Reflector, Front Fender

705012406

$5.00

RH Front Fender Support

705017327

$115.00

Plastite Screw M4 X 10

250000805

$1.74

Torx Screw K50 X 16

250000720

$1.39

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

Clip Bracket Connector (edge)

409210100

$2.00

RH Front Fender Trim

705018434

$8.00

Torx Truss PT K40 x 12

250001131

$1.74

Rear Fender Support

705013304

$115.00

Grommet Ass'y

705005055

$13.00

Rivet 3/16"

293150102

$0.71

Insert M5 - 0.8

293450267

$4.22

Insert Half Hex Body M6 x 1.0

250100199

$2.54

LH Fender Trim Support

705013305

$18.00

Torx Truss Screw M5 X 16, T25

250000578

$1.74

Deep Black, Rear Fender

705011162

$205.00

Torx Truss M6X14

250000789

$4.41

Panel Nut M6 X 1.0

250100208

$1.07

Hex. Flange Nut M6

233061414

$1.34

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

Screw 8-32

250001097

$3.00

Rear Fender Trim

706003151

$15.00

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

License Plate Support Ass'y

706005433

$38.00

Screw M4 X 16

250000725

$2.87

BRP Logo Emblem 48 MM UV

704909040

$12.87
