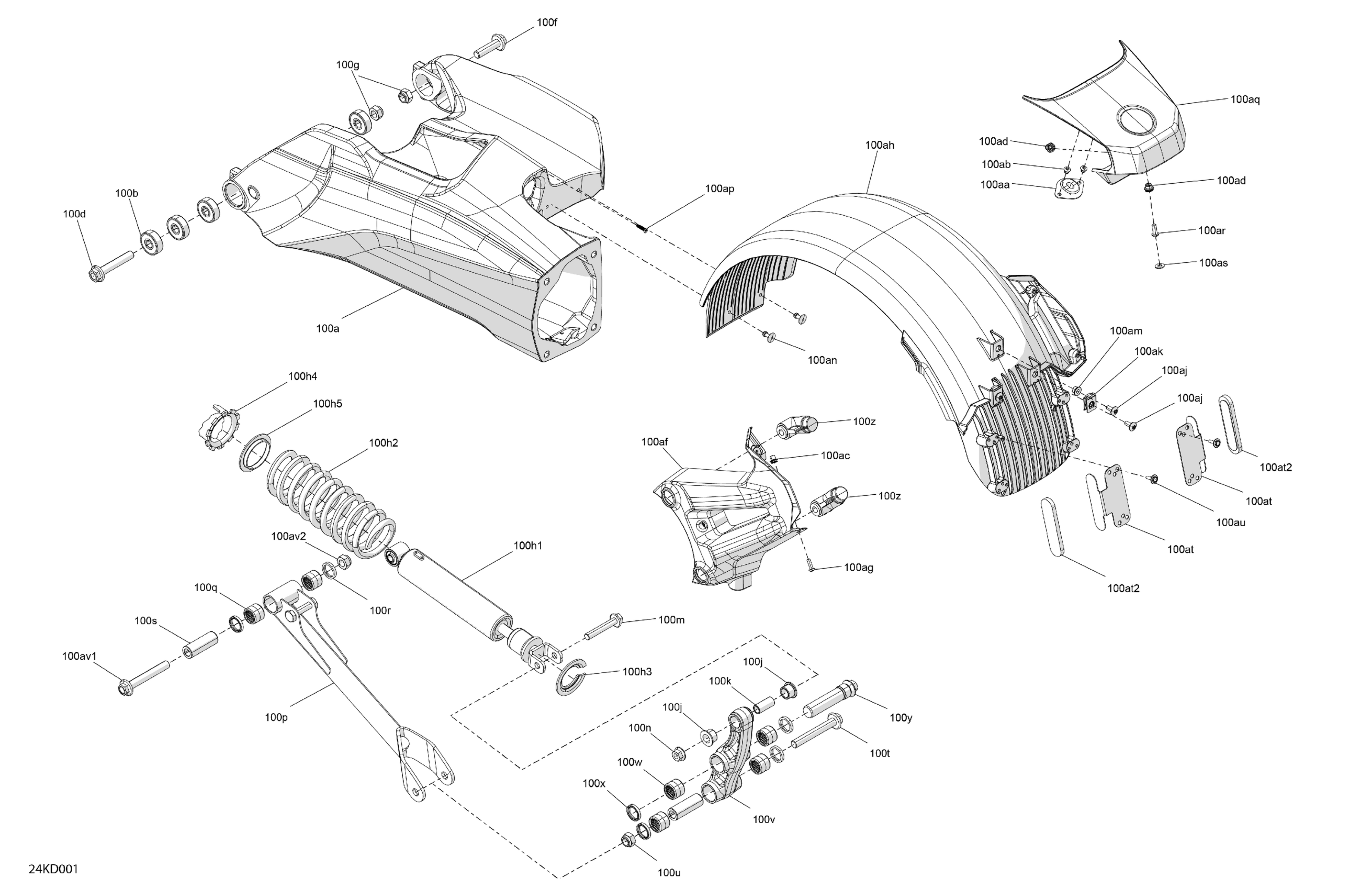

Can-Am RYKER 600 ACE - F1RA - STD - Deep Black, 2024 Suspension - Rear Diagram

Hex. Flange Screw M12 X 85, Scotch Grip

207528556

$7.00

Elastic Stop Nut M12

232521416

$1.40

Swing Arm

706004488

$657.00

Ball Bearing, ID 12, OD 37, L 12

706002649

$15.00

Hex. Flange Screw M12 X 70

250000858

$3.11

Hex. Flange Screw M12 X 45, Scotch Grip

207524556

$8.00

Elastic Stop Nut M12

232521416

$1.40

Rear Shock Absorber

706002531

$137.00

Carbon Black, Compression Spring

706005270

$51.00

Spring Stopper

706203670

$3.00

Cam Adjustment

706003123

$8.29

Spring Guide

706004247

$7.72

Urethane Bushing

503189117

$6.88

Spacer

706002678

$4.00

Hex. Flange Screw M10 X 60, Scotch Grip

207506056

$5.00

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$1.74

Suspension Arm Lever, Primary

706002533

$159.00

Bearing, Needles

706002965

$13.00

Seal, Single Lip ID 19.4 OD 26

706000448

Unavailable

Axle, Suspenion Arm

706002534

$21.00

Hex. Flange Screw M12 X 85, Scotch Grip

207528556

$7.00

Elastic Stop Nut M12

232521416

$1.40

Suspension Arm Lever, Secondary

706202664

$159.00

Bearing, Needles

706002965

$13.00

Seal, Single Lip ID 19.4 OD 26

706000448

Unavailable

Pin Threaded M25 X 1.5 S.Grip, Lever

706002961

$37.00

Rear Fender Support

705013304

$115.00

Grommet Ass'y

705005055

$13.00

Rivet 3/16"

293150102

$0.71

Insert M5 - 0.8

293450267

$4.22

Insert Half Hex Body M6 x 1.0

250100199

$2.54

LH Fender Trim Support

705013305

$18.00

Torx Truss Screw M5 X 16, T25

250000578

$1.74

Deep Black, Rear Fender

705011162

$205.00

Torx Truss M6X14

250000789

$4.41

Panel Nut M6 X 1.0

250100208

$1.07

Hex. Flange Nut M6

233061414

$1.34

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

Screw 8-32

250001097

$3.00

Rear Fender Trim

706003151

$15.00

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

Flat Washer

224061121

$0.44

License Plate Support Ass'y

706005433

$38.00

Red, Reflector

705015551

$8.26

Screw M4 X 16

250000725

$2.87
