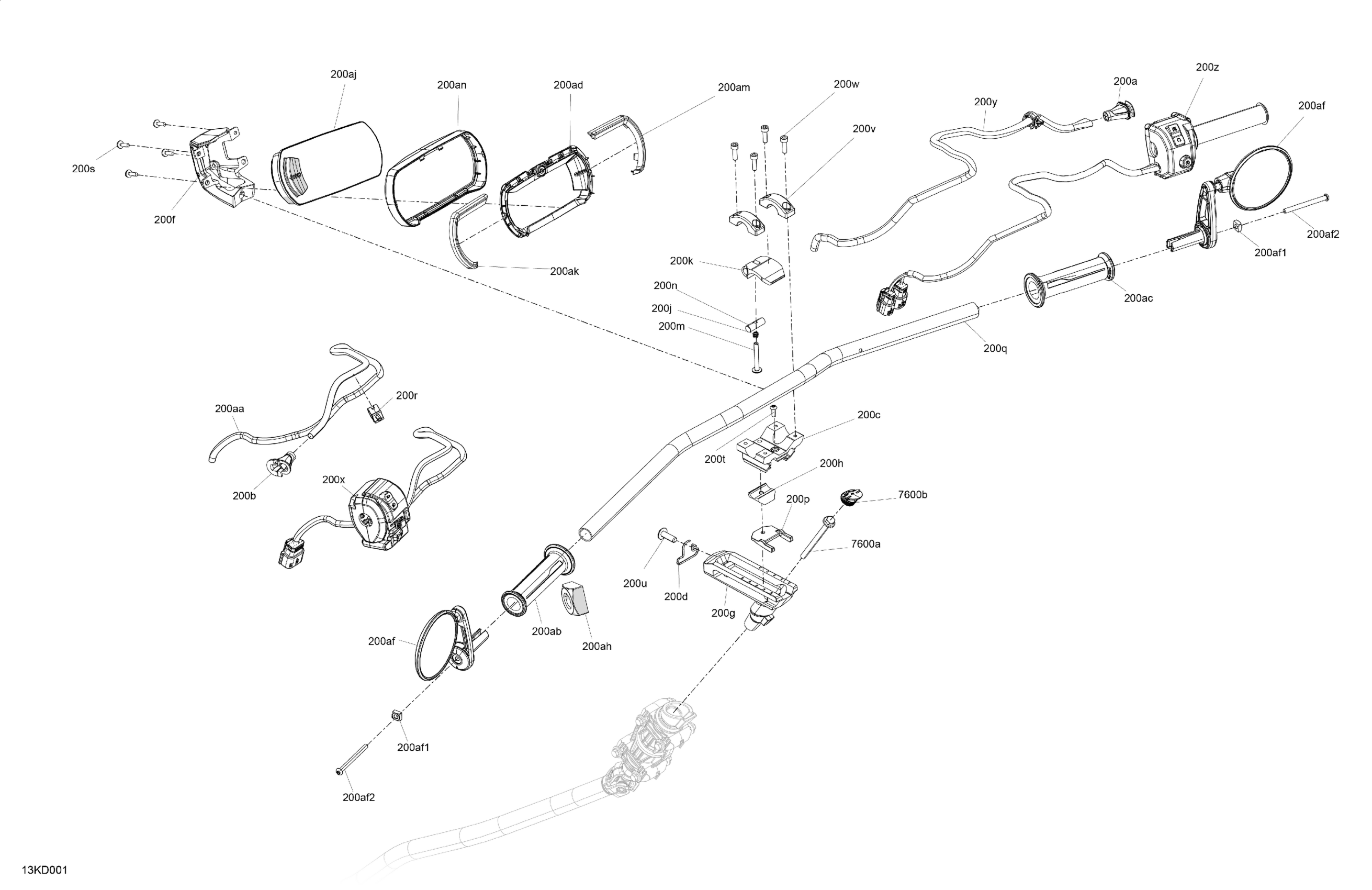

Can-Am RYKER 600 ACE - F1RA - STD - Deep Black, 2024 Mechanic - Handlebar Diagram

Description

Price

200a

Fairlead

709402502

$3.00

200b

Fairlead

709402513

$3.00

200c

Slide

709402452

$34.00

200d

Steel Cable Support

709402267

$15.00

200f

Deep Black, Cluster Support

709402243

$34.00

200g

Deep Black, Stem

709402683

$130.00

200h

Adjuster Block

506153164

$1.00

200j

Compression Spring

709402427

$5.00

200k

Deep Black, Release Lever

709402279

$24.00

200m

Torx-Truss Screw M6 X 45

709402444

$5.00

200n

Pin Lever

709402454

$9.00

200p

Rocker Arm

709402273

$14.00

200q

Carbon Black, Handle Bar

709402265

$41.00

200r

Fairlead

709402707

$3.00

200s

Torx Screw K50 X 16

250000720

$1.39

200t

Screw-Torx Button Head M5 X 14

235551454

$7.31

200u

Torx Truss M8 X 25

250000874

$1.74

200v

Deep Black, Handle Bar Clamp

709402255

$5.00

200w

Socket Head Screw M6 X 20 S.Grip

205562054

$1.85

200x

LH Multifunction Switch

710007370

$148.00

200y

Braided Sleeve

415130141

$56.12

200z

RH Multifunction Switch & Twist Throttle

710007369

$265.00

200aa

Braided Sleeve

415130141

$56.12

200ab

LH Handle Grip

709401984

$20.00

200ac

RH Handle Grip

709401985

$20.00

200ad

Gauge Trim

709402742

$12.68

200af

Rear-View Mirror Ass'y

705018904

$19.00

200af1

Square Nut M6

232862412

$1.18

200af2

Torx Screw Button Head M6 X 70

235567084

$7.28

200ah

Square Nut M6

232862412

$1.18

200aj

Multifunction Compact Gauge

710008298

$364.58

200ak

Deep Black, LH Trim Gauge

709402210

$27.54

200am

Deep Black, RH Trim Gauge

709402211

$27.66

200an

Rear Cluster Cap

709402092

$13.83

7600a

Hex. Flange Screw DIN.6921 S.GRIP

207589554

$12.00

7600b

Cap

709402276

$1.00
