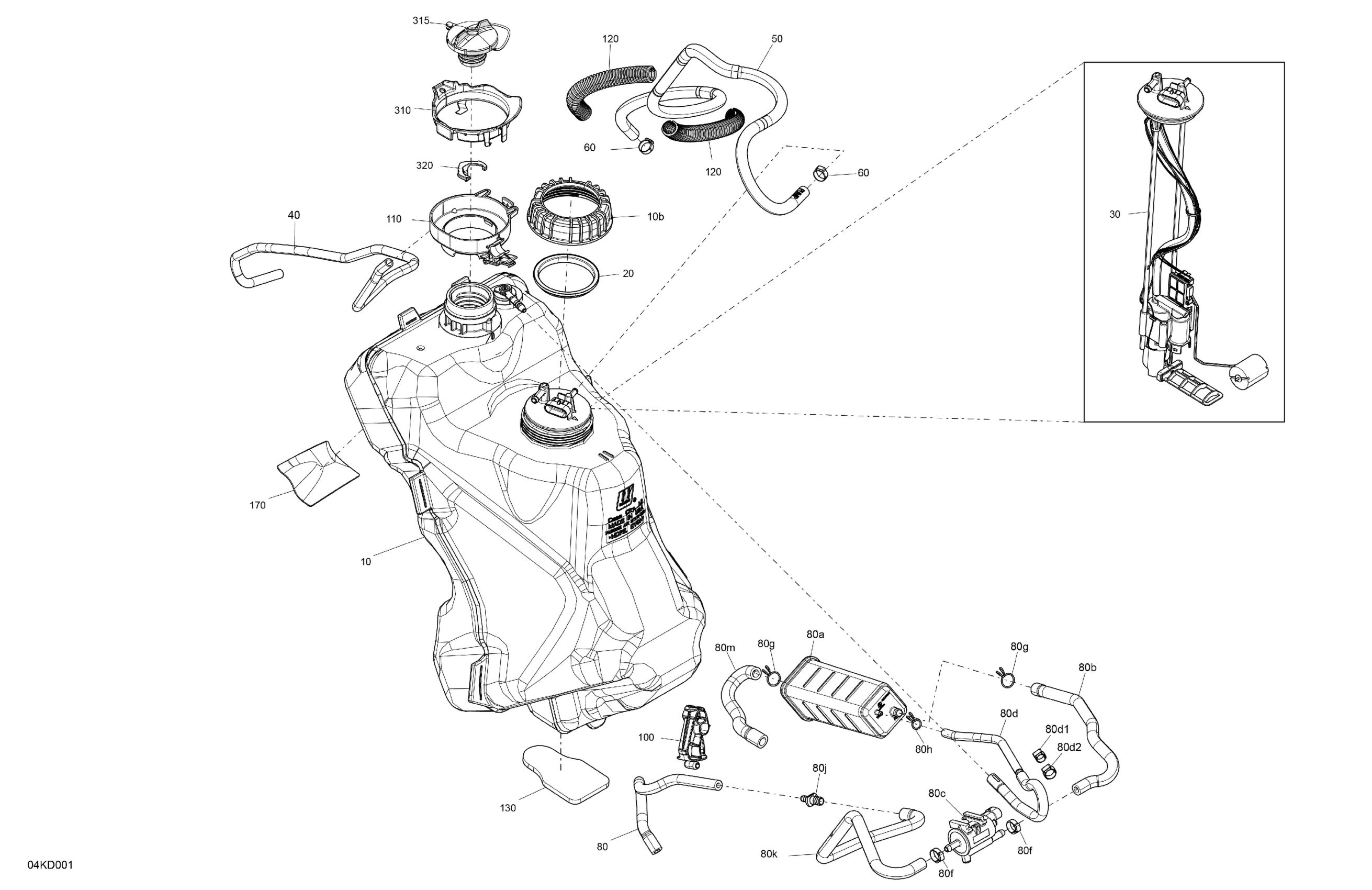

Can-Am RYKER 600 ACE - F1RA - STD - Deep Black, 2024 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001436

$409.99

10b

Fuel Pump Module Nut

709000328

$12.43

20

Seal

709000208

$12.16

30

Fuel Pump Module 2021-2026 | Includes 400c to 400c1

709001261

$340.99

30a

Prefilter Fuel Pump Kit 125mm Long | Not shown

715900677

$73.85

40

Polyurethane Hose 1000Mm Long

219704391

Unavailable

50

Hose

709001138

$46.49

60

Crimp Clamp, 15.3-706R

293650047

$3.03

80

Hose Fuel Vapor

709001053

$33.99

80a

Vapor Canister

709001217

$90.27

80b

Hose Fuel Vapor

709000861

$33.99

80c

Bleed Selenoid Valve

709000991

Unavailable

80d

Hose Fuel Vapor Ass'y | Includes 400j4 to 400j4f

709001006

$40.99

80d1

Oetiker Clamp | Europe

293650044

$4.67

80d2

Oetiker Gear Clamp

293650025

$2.82

80k

Hose Fuel Vapor

709000863

$35.99

80f

Crimp Clamp, 15.3-706R

293650047

$3.03

80g

Hose Clamp 15.5mm-17.5mm (Spring Type)

293650294

$11.28

80h

Hose Clamp 9.8mm-11.5mm (Spring Type)

293650295

$11.28

80m

Hose Fuel Vapor

709000959

$15.99

80j

Flow Reducer

709000705

$6.09

100

Hose Support

709001408

$13.49

110

Anchorage Support

709001275

$15.49

120

Tubing 16 Mm 1000Mm Long

219704408

$7.15

130

Rubber Pad

709001087

$14.23

170

Tank Protector

709001115

$4.39

310

Trim

709001202

$15.49

315

Fuel Tank Cap

709001460

$27.49

320

Deflector

709001263

$15.99
