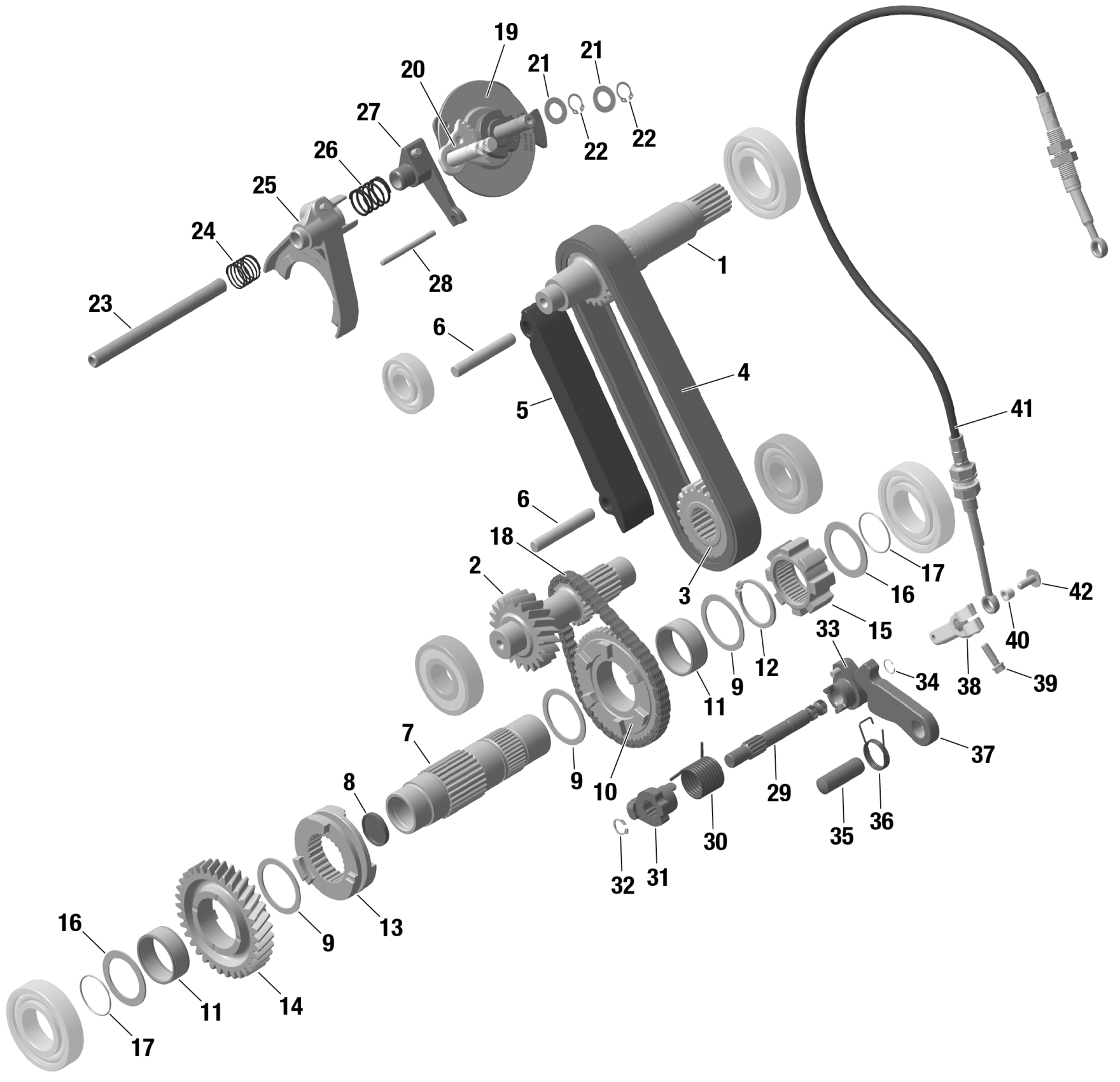

Can-Am RYKER 600 ACE - F1RA - STD - Deep Black, 2024 ROTAX - GearBox Diagram

#

Description
Price

1

Counter Shaft

420637332

$206.00

2

Intermediate Shaft Ass'y

420637727

$206.00

3

Not Available As Spare Parts

XXX

Unavailable

4

Hyvo Chaine

420297087

$120.00

5

Chain Guide

420936030

$16.00

6

Needle Pin

420229475

$12.29

7

Main Shaft Ass'y

420637819

$990.00

8

Cover

420427150

$27.00

9

Thrust Washer

420244381

$7.37

10

Gear Pinion 49T

420637841

$79.20

11

Needle Cage

420632892

$18.43

12

Retaining Ring

420845656

$6.00

13

Main Shaft Ass'y

420637819

$990.00

14

Main Shaft Ass'y

420637819

$990.00

15

Gear

420634946

$52.00

16

Thrust Washer

420927407

$7.00

17

O-Ring

420950845

$1.00

18

Chain

420898532

$93.57

19

Shift Gate

420637939

$79.00

20

Shift shaft Ass'y

420637975

$99.00

21

Thrust Washer

420827261

$6.18

22

Retaining Ring

420945470

$5.52

23

Fork Spindle

420637920

$32.00

24

Spring

420638070

Unavailable

25

Gearshift Fork

420637906

$64.00

26

Spring

420638075

$3.08

27

Shifting Block

420637916

$26.00

28

Dowel Pin

420354435

$1.00

29

Shift Shaft

420637860

$41.00

30

Hairpin Spring

420638171

$13.00

31

Hub

420637880

$20.00

32

Retaining Ring

420945470

$5.52

33

Shift Cam Ass'y

420637875

$23.00

34

Snap Ring

420245440

$3.00

35

Dowel Pin

420220965

$7.00

36

Coil Spring

420638180

$8.00

37

Parking Lock Lever

420257635

$24.00

38

Shifting Lever

420848056

$43.00

39

Torx Flange Screw M6 X 20

420440207

$2.54

40

Sleeve

420647295

$8.00

41

Bowden Cable

420945896

$106.00

42

Torx Screw M6 X 16

420241522

$1.56
