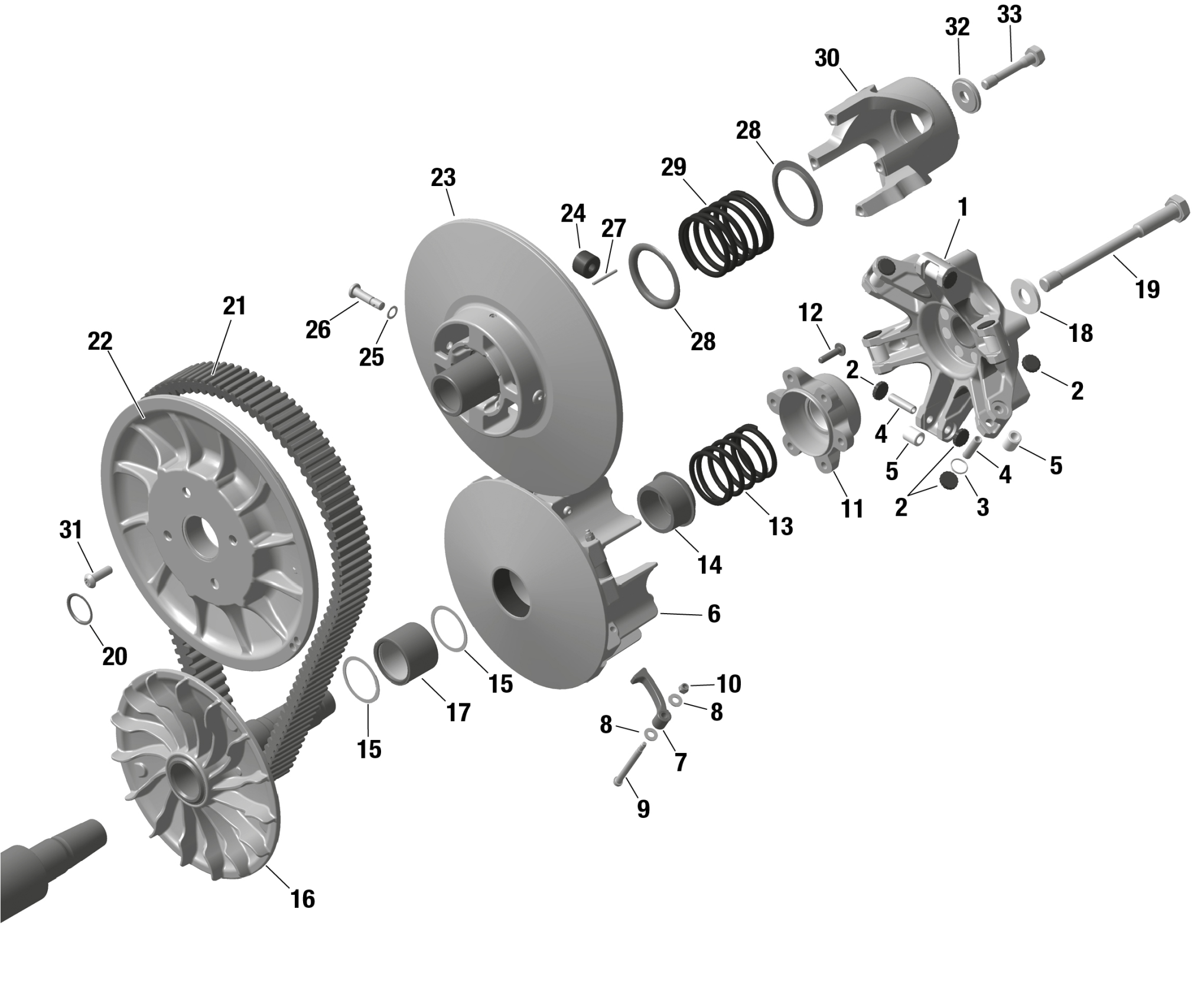

Can-Am RYKER 600 ACE - F1RA - STD - Deep Black, 2024 ROTAX - CVT Diagram

#

Description
Price

1

Governor Cup Ass'y

420280729

$380.00

2

Slider Shoe Set 1 SET= 12PC

420281297

$74.00

3

O-Ring

420230456

$1.54

4

Roller Axle

417223257

$7.74

5

Roller Thrust

420229991

$18.43

6

Outer Half Ass'y

420280609

$198.43

7

Lever Set | Except North America

420248687

$159.00

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Not Available As Spare Parts

XXX

Unavailable

11

Bearing Cover

420280616

$66.49

12

Torx Flange Screw M6 X 25

420841549

$1.97

13

Compression Spring

420638112

$29.00

14

Spring Retainer

420427211

$18.43

15

Washer

420427220

$4.60

16

Inner Half Ass'y

420280596

$179.97

17

Needle Roller Bearing With Sleeves

420832351

$46.12

18

Washer

420245690

$4.60

19

Hexagonal Screw M14X 165

420841161

$27.66

20

Distance Ring

420647263

$27.66

21

Drive Belt

422280656

$166.24

22

Inner Half Ass'y

420280635

$166.12

23

Outer Half Pulley Ass'y

420280692

$390.00

24

Pulley Roller

417127016

$23.05

25

Lock Washer 8 mm

250200009

$2.06

27

Dowel Pin

420629200

$2.31

28

Swivel Abutment

417127116

$8.06

29

Spring

420638164

$14.00

30

Cam 48-60

420280752

$153.00

31

Binding Head Screw M8X25

420441981

$16.19

32

Collar Washer

420427243

$15.35

33

Hexagonal Screw M10X 61

420441990

$18.43
