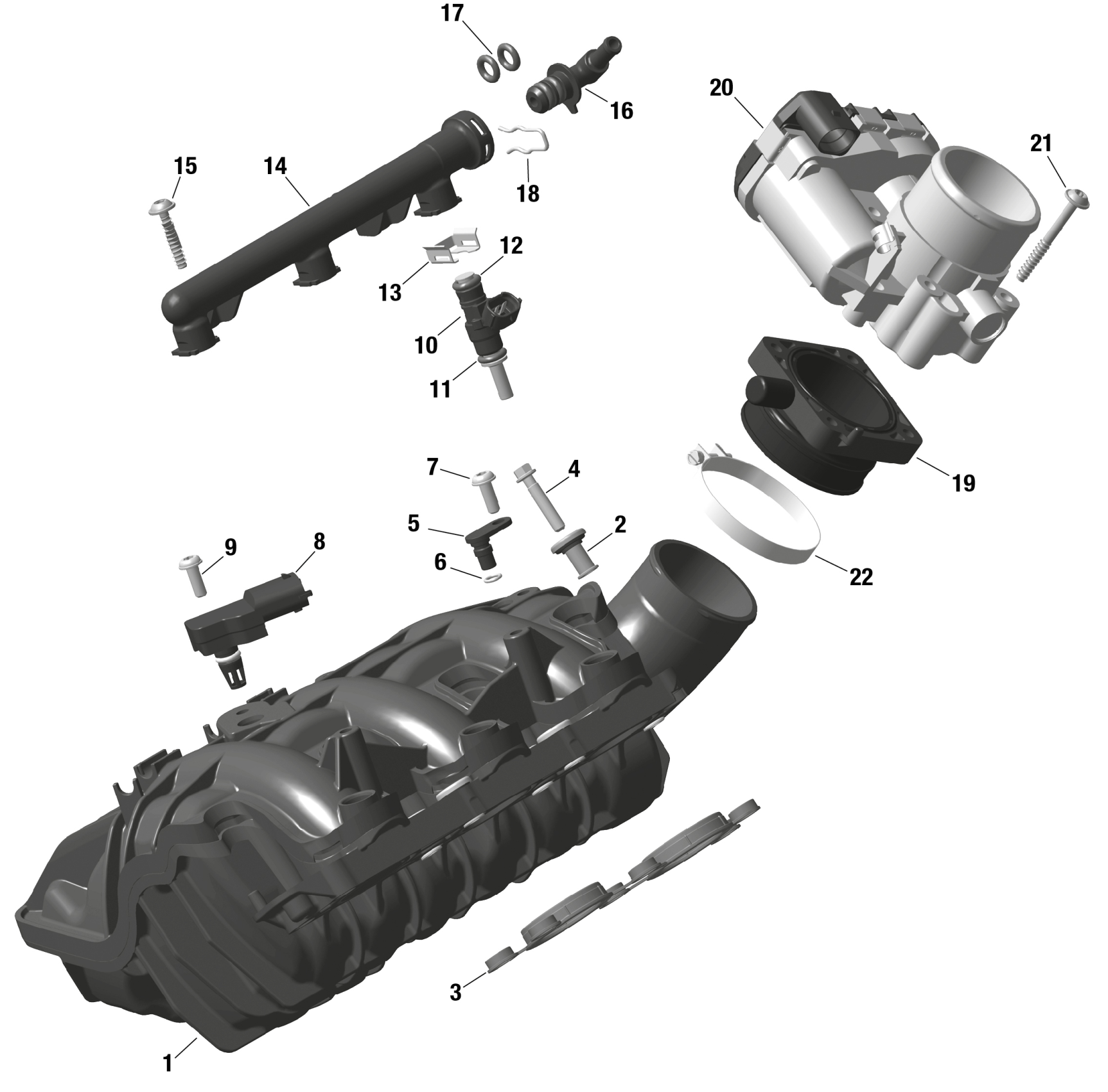

Can-Am RYKER 600 ACE - F1RA - STD - Deep Black, 2024 ROTAX - Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Airbox Ass'y

420867000

$199.99

2

Distance Sleeve

420629175

$19.99

3

Gasket

420450515

$30.49

4

Torx Flange Screw M6 X 30

420440647

$2.00

5

Plug

420201052

$2.24

6

O-Ring

420230530

$3.17

7

Torx Flange Screw M6 X 16

420641588

$2.11

8

Pressure And Temperature Sensor

420874658

$119.99

9

Torx Flange Screw M6 X 16

420641588

$2.11

10

Injection Valve

420874855

$169.49

11

O-Ring

420831050

$20.49

12

O-Ring

420430775

$4.29

13

Injector Clip

420853030

$3.09

14

Fuel Rail

420875000

$18.99

15

Torx Screw 6X30

420441575

$3.06

16

Fuel Connector

420875010

$7.69

17

O-Ring

420430775

$4.29

18

Spring Clip

420939350

$2.42

19

Intake Neck

420267216

$38.99

20

Throttle Body

420893149

$646.49

21

Torx Flange Screw M6 X 50

420441588

$4.44

22

Hose Clamp 60-80

420251832

$15.27
