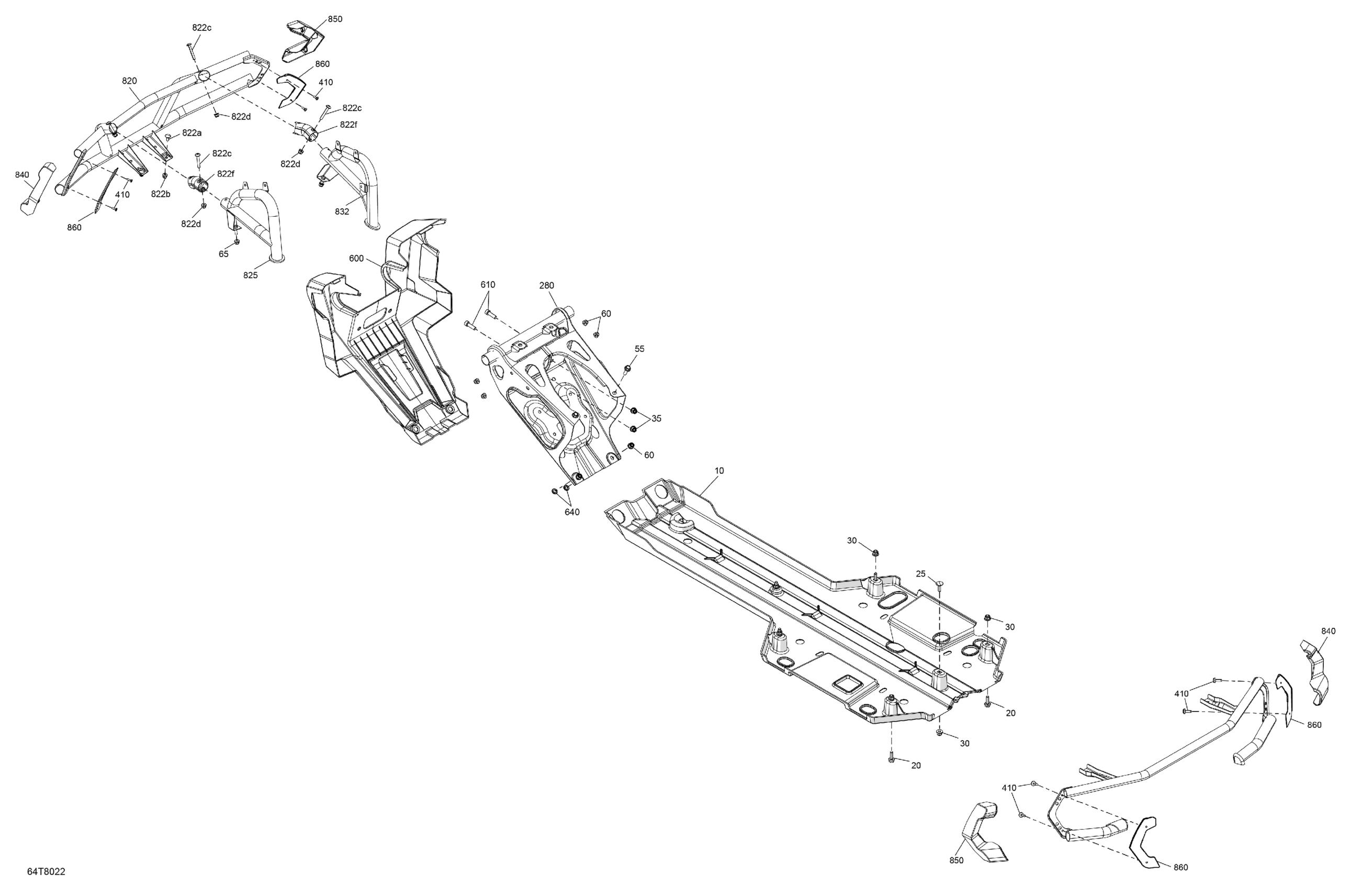

Can-Am OUTLANDER - 4X4 - XMR - 650 EFI - 5EJA - Can-Am Red, 2018 Body - Skid Plate and Bumper Diagram

Protective Plate Kit

715002374

$59.67

Hex. Flange Screw M6 X 20

207662054

$0.96

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.45

Flange Elastic Nut M6

233261434

$4.15

Hex. Flange Elastic Nut M8

233281434

$2.00

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

Hex. Flange Elastic Nut M8

233281434

$2.00

Elastic Flange Nut M8

233281464

$0.96

Front Bumper Support

705016893

$314.90

Hex. Flange Screw M6 X 10

210261040

$1.43

Torx Screw K50 X 16

250000720

$1.60

Front Guard Plate | North America, International

705006299

$46.24

Hex. Screw M8 X 20

236282054

$1.40

Ring

705004497

$3.87

Can-Am Red, Front Bumper | P-XMR White/Red/Black

705014575

$259.67

Carriage Bolt, M8 X 20

207782044

$1.79

Hex. Flange Elastic Nut M8

233281414

$1.31

Torx Screw M8 X 55

250000535

$3.01

Elastic Flange Nut M8

233281464

$0.96

Red, Upper Bracket

705009891

$42.51

Red, LH Bracket | P-XMR White/Red/Black

705013934

$223.10

Red, RH Rad Bracket | P-XMR White/Red/Black

705013935

$223.10

Cap (Front LH) (Rear RH) | XT

705004409

$6.76

Cap (Front RH) (Rear LH) | XT

705004410

$6.76

Bracket Cover | XT

705004987

$4.25
