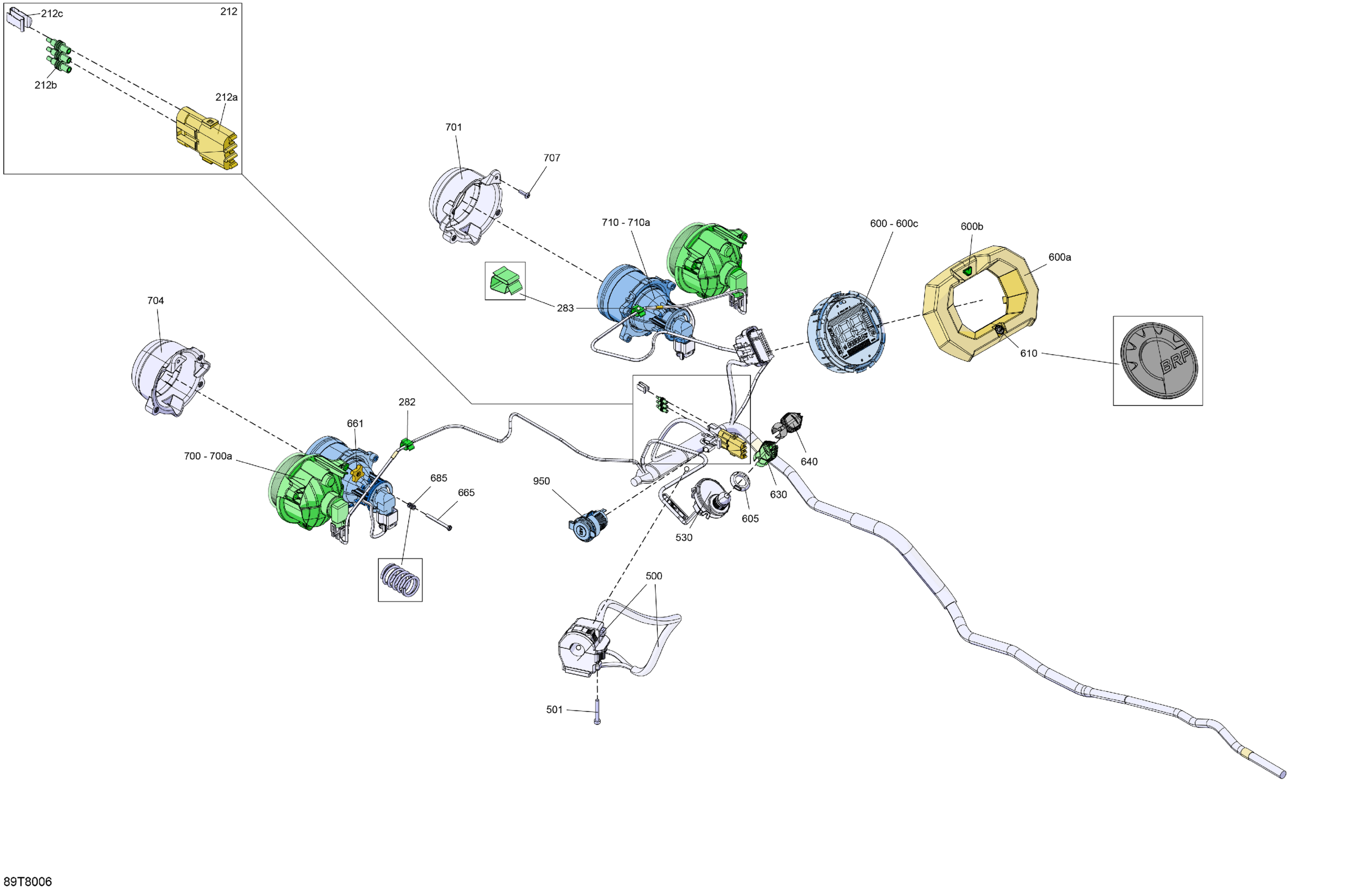

Can-Am OUTLANDER - 4X4 - STD - 650 EFI - 2NJB - Viper Red - CALI, 2018 Electric - Front Section Diagram

Description

Price

203

DPS Connector Cap | Not Shown

710005760

$15.22

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.91

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

212b

Wire Seal

278000216

$2.55

212c

Clip

710000992

$4.00

282

Clip

414227300

$1.45

283

Clip

414227300

$1.45

500

Multi-Function Handle | Except Model Europe, Except T3

710005072

$64.58

501

Socket Head Screw M5 X 35

205053588

$1.56

530

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

600

Speedometer Ass'y | Includes 600 to 600c

710005599

$313.49

600a

Trim Ring

710002092

$8.98

600b

Button

710001473

$12.68

600c

Lens

415129320

$23.05

605

Safety Nut (DESS Switch)

278002963

$2.72

610

BRP Logo13 mm

704904615

$9.66

630

Green Key RFID | Except Model Europe, Except T3

710005232

$55.35

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

661

Handle

572106600

$9.31

665

Hex. Screw K40 X 45

250000718

$1.74

685

Spring

517168600

$6.91

700

Low Beam | Includes 54 to 55

710006177

$113.99

700a

Bulb 12V 55W

715900141

$39.42

701

RH High Front Housing

710002291

$27.54

704

LH High Front Housing

710002292

$21.37

707

Phillips Screw K40 X 16

250000723

$0.81

710

High Beam Ass'y | Includes 11 to 12

710002525

$113.99

710a

Halogen Bulb

415129249

$39.97

950

DC Outlet

710001248

$31.17
