1997 Kawasaki Ninja® ZX™-7RR Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 1997 Kawasaki Ninja® ZX™-7RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

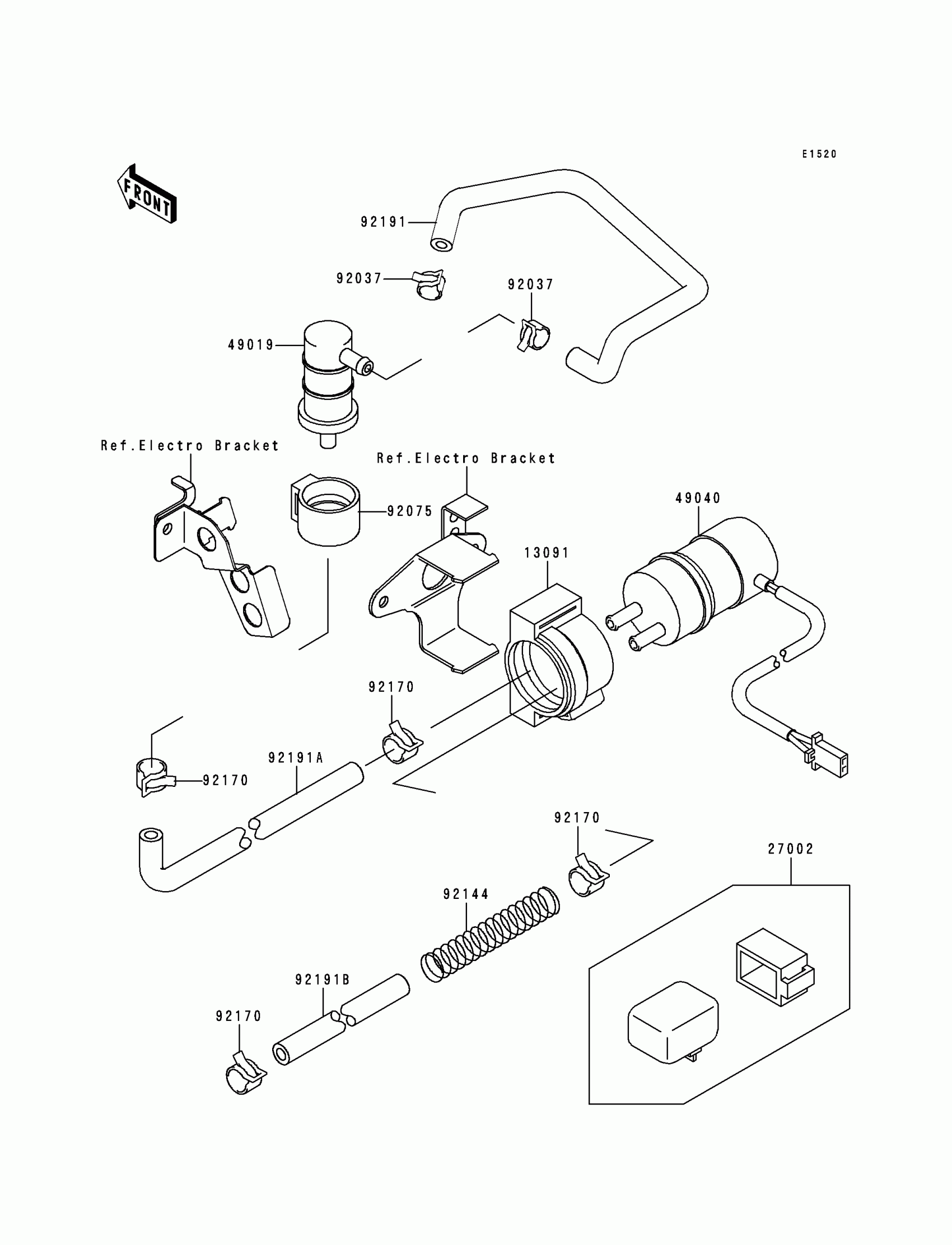

1997 Kawasaki Ninja® ZX™-7RR Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,FUEL PUMP

13091-1738

1
Out of stock

27002

RELAY-ASSY

27002-1065

1
Out of stock

49019

FILTER-FUEL

49019-1081

1
Out of stock

49040

PUMP-FUEL

49040-1061

1
Out of stock

92037

CLAMP,HOSE CLIP

92037-1181

1
Out of stock

92075

DAMPER,FUEL FILTER

92075-1853

1
Out of stock

92144

SPRING,HOSE PROTECTOR

92144-1746

1
Out of stock

92170

CLAMP

92170-1118

1

$5.93

In stock

92191

TUBE

92191-1018

1
Out of stock

92191A

TUBE

92191-1059

1
Out of stock

92191B

TUBE,9.5X15.5X300

92191-1081

1
Out of stock
