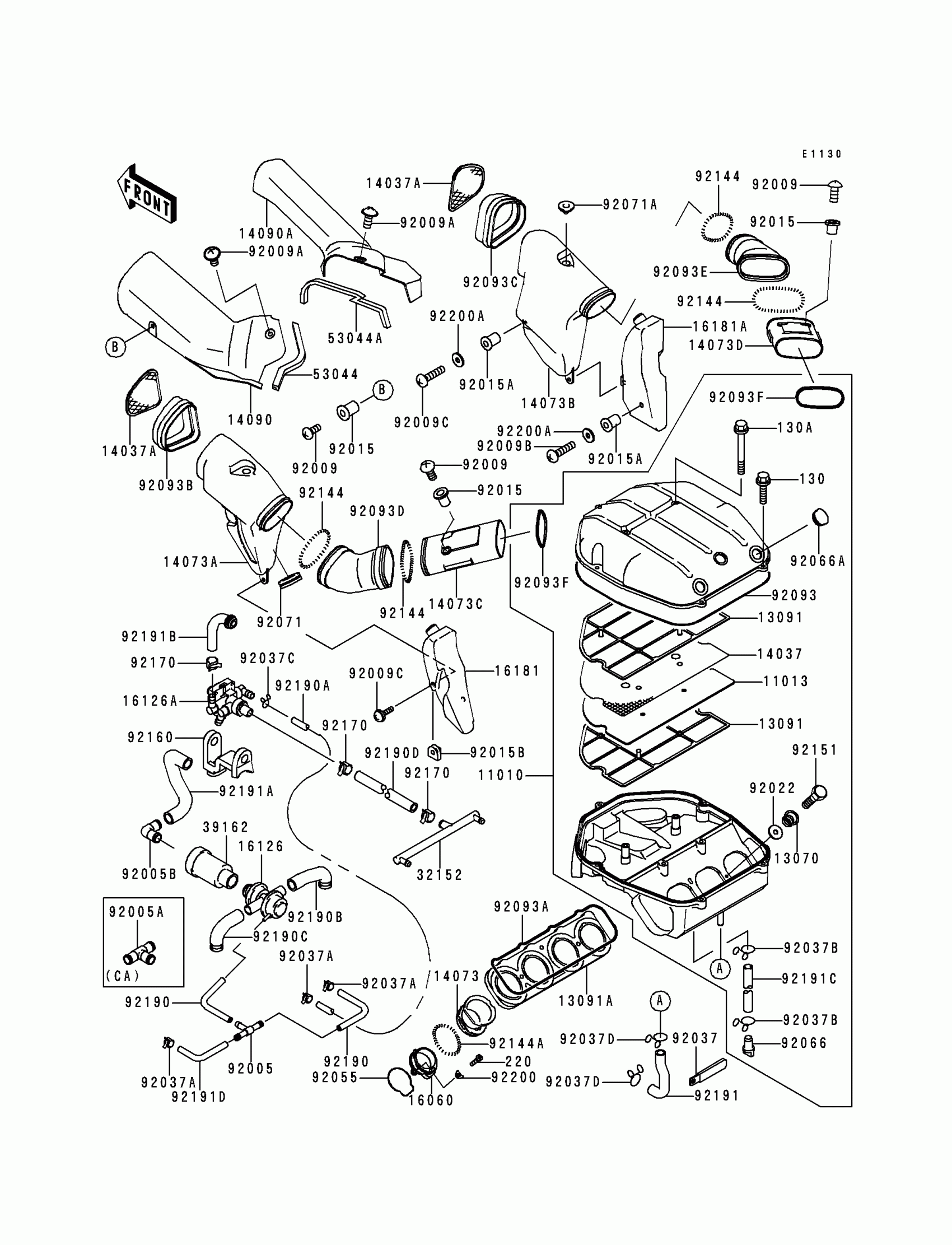

Kawasaki Ninja® ZX™-7RR Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-1563

$354.97

11013

ELEMENT-AIR FILTER

11013-1244

$16.20

13070

GUIDE

13070-1300

$9.25

13091

HOLDER,ELEMENT

13091-1933

$25.00

13091A

HOLDER

13091-1935

$90.05

14037

SCREEN,AIR FILTER

14037-1212

$18.78

14037A

SCREEN,FILTER

14037-1213

$45.89

14073

DUCT

14073-1641

Unavailable

14073A

DUCT,LH,#1

14073-1643

$131.03

14073B

DUCT,RH,#1

14073-1644

$131.03

14073C

DUCT,LH,#2

14073-1645

$51.81

14073D

DUCT,RH,#2

14073-1646

$51.81

14090

COVER,LH

14090-1644

$34.33

14090A

COVER,RH

14090-1645

$39.25

16060

PIPE-INTAKE

16060-1069

$21.38

16126

VALVE,AIR SWITCH

16126-1104

$197.28

16126A

VALVE

16126-1305

Unavailable

16181

TANK-RESONATOR,LH

16181-1085

$55.45

16181A

TANK-RESONATOR,RH

16181-1086

$55.45

32152

PIPE

32152-1042

$34.62

39162

SILENCER-INTAKE

39162-1084

Unavailable

53044

TRIM,AIR DUCT COVER

53044-1265

$11.49

53044A

TRIM

53044-1296

$11.49

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92005B

FITTING

92005-1309

$11.19

92009

SCREW,6X18,BLACK

92009-1181

$1.98

92009A

SCREW,6X10

92009-1402

$1.73

92009B

SCREW,6X16

92009-1621

Unavailable

92009C

SCREW,5X20,BLACK

92009-1656

$3.03

92015

NUT

92015-1700

$6.55

92015A

NUT,WELL,5MM

92015-1757

$5.58

92015B

NUT,CLIP,6MM

92015-1904

$4.93

92022

WASHER,6.5X20X1.6

92022-1557

$1.08

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,TUBE

92037-1461

$2.93

92037B

CLAMP,TUBE

92037-147

$5.61

92037C

CLAMP

92037-1712

$3.81

130

BOLT-FLANGED,6X25

130H0625

Unavailable

130A

BOLT-FLANGED

130H0670

$3.51

220

SCREW PAN HEAD 5X8

220B0508

Unavailable

92037D

CLAMP,TUBE

92037-213

$3.29

92055

RING-O

92055-1492

$4.50

92066

PLUG,DRAIN

92066-1211

$6.48

92066A

PLUG

92066-1389

$3.25

92071

GROMMET,AIR FILTER

92071-1013

$5.61

92071A

GROMMET

92071-1222

$5.85

92093

SEAL,AIR FILTER CASE

92093-1396

Unavailable

92093A

SEAL

92093-1397

$7.51

92093B

SEAL,DUCT,LH

92093-1398

$25.00

92093C

SEAL,DUCT,RH

92093-1399

$20.54

92093D

SEAL,LH

92093-1400

$41.56

92093E

SEAL,RH

92093-1401

$41.56

92093F

SEAL,AIR FILTER

92093-1402

$13.39

92144

SPRING,DUCT

92144-1563

$10.05

92144A

SPRING

92144-1564

$11.77

92151

BOLT,6X20

92151-1094

$4.17

92160

DAMPER

92160-1666

$18.78

92170

CLAMP

92170-1118

$5.69

92190

TUBE,4X9X220

92190-1091

$14.40

92190A

TUBE,L=550

92190-1405

$16.29

92190B

TUBE,HEAD COVER-VALVE

92190-1543

$11.36

92190C

TUBE

92190-1544

$10.41

92190D

TUBE,CARBURETOR-PUMP

92190-1545

$5.15

92191

TUBE,BREATHER

92191-1024

$11.29

92191A

TUBE

92191-1025

Unavailable

92191B

TUBE,AIR FILTER-VALVE

92191-1026

Unavailable

92191C

TUBE,7X10X500

92191-1028

$10.75

92191D

TUBE

92191-1060

$3.64

92200

WASHER,DUCT

92200-1058

$3.55

92200A

WASHER,5.3X15X1.5

92200-1281

$2.68
