1997 Kawasaki Ninja® ZX™-7RR Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1997 Kawasaki Ninja® ZX™-7RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

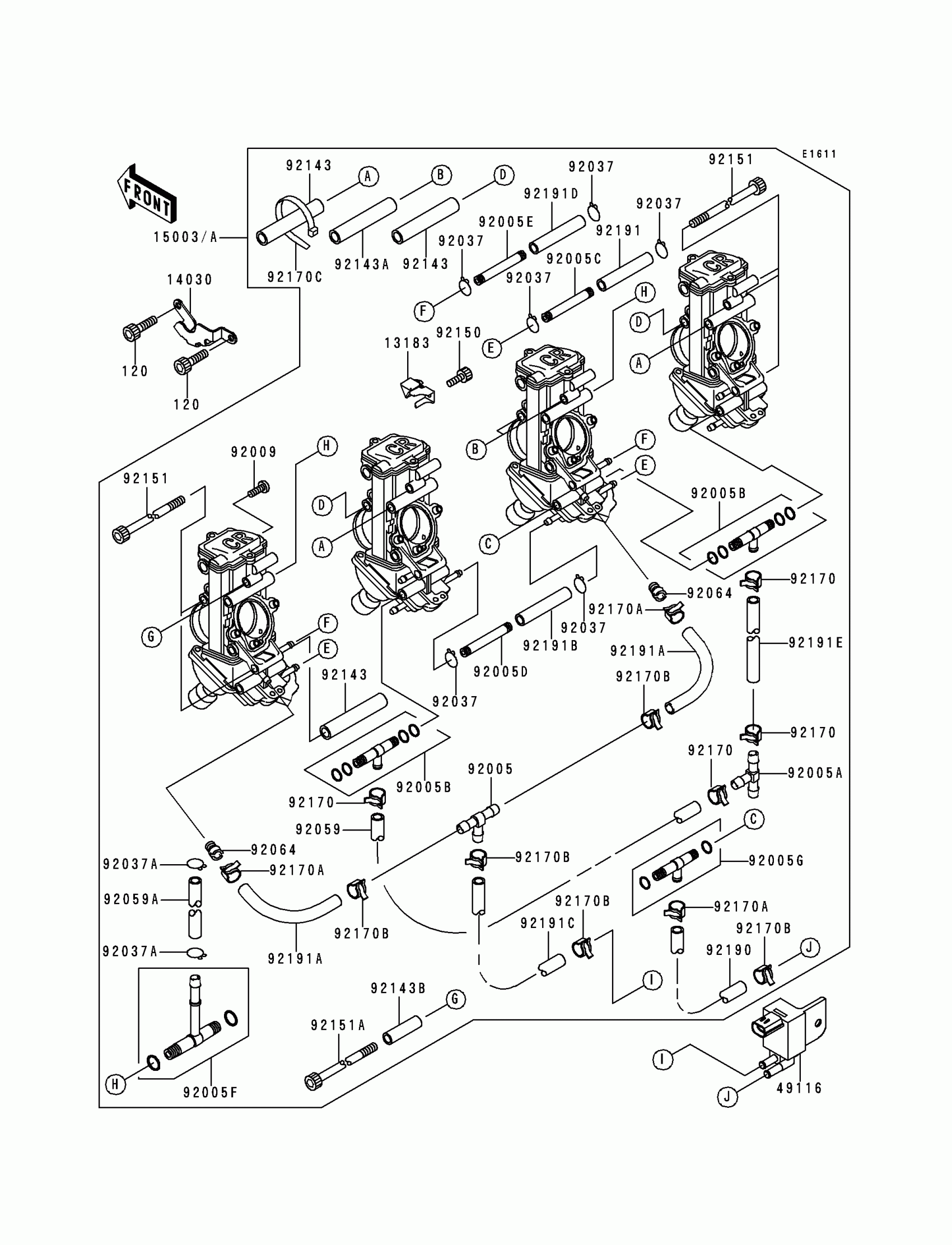

1997 Kawasaki Ninja® ZX™-7RR Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET

120P0508

1
Out of stock

13183

PLATE,STARTER CABLE

13183-1744

1
Out of stock

14030

COVER-CARBURETOR

14030-1055

1
Out of stock

15003A

CARBURETOR-ASSY

15003-1269

1
Out of stock

49116

VALVE-ASSY

49116-1086

1
Out of stock

92005

FITTING,FUEL,T-TYPE

92005-1112

1
Out of stock

92005A

FITTING,T-TYPE

92005-1272

1
Out of stock

92005B

FITTING

92005-1288

1
Out of stock

92005C

FITTING

92005-1320

1
Out of stock

92005D

FITTING

92005-1321

1
Out of stock

92005E

FITTING

92005-1322

1
Out of stock

92005F

FITTING

92005-1323

1
Out of stock

92005G

FITTING

92005-1324

1
Out of stock

92009

SCREW

92009-1771

1
Out of stock

92037

CLAMP,TUBE

92037-1396

1

$4.37

In stock

92037A

CLAMP,TUBE

92037-1531

1

$4.37

In stock

92059

1

$31.15

In stock

92059A

TUBE,7X11X55

92059-1612

1

$24.19

In stock

92064

JET-PILOT,#70

92064-1164

1
Out of stock

92143

COLLAR

92143-1870

1
Out of stock

92143A

COLLAR

92143-1871

1
Out of stock

92143B

COLLAR

92143-1873

1
Out of stock

92150

BOLT,SOCKET,4X8

92150-1440

1
Out of stock

92151

BOLT,5X105

92151-1098

1
Out of stock

92151A

BOLT,5X140

92151-1099

1
Out of stock

92170

CLAMP,TUBE

92170-1051

1

$8.75

In stock

92170A

CLAMP

92170-1205

1
Out of stock

92170B

CLAMP

92170-1281

1
Out of stock

92170C

CLAMP

92170-1708

1
Out of stock

92190

TUBE,4.5X8.5X150

92190-1267

1

$12.76

In stock

92191

TUBE,L=51

92191-1091

1

$7.51

In stock

92191A

TUBE,4.5X8.5X105

92191-1092

1
Out of stock

92191B

TUBE,L=60

92191-1093

1
Out of stock

92191C

TUBE,4.5X8.5X110

92191-1094

1
Out of stock

92191D

TUBE,L=46

92191-1095

1
Out of stock

92191E

TUBE,7.3X12.5X60

92191-1113

1
Out of stock
