Description

Price

11047

BRACKET,REFLECTOR

11047-1470

$29.64

14090

COVER,REFLECTOR

14090-1117

Unavailable

21007

ROTOR,LOCK,TANK CAP

21007-5016

$60.27

27004

SWITCH-ASSY

27004-5412

Unavailable

27005

SWITCH-ASSY-IGNITION

27005-1161

Unavailable

27008

KEY-LOCK,BLANK

27008-1105

Unavailable

27010

SWITCH,BRAKE LAMP

27010-1093

$27.22

27010A

SWITCH,SIDE STAND

27010-1223

$73.52

27016

LOCK-ASSY,HELMET

27016-5181

Unavailable

27016A

LOCK-ASSY,PAD

27016-5182

$74.62

28012

REFLECTOR-REFLEX

28012-1003

$20.69

28012A

REFLECTOR-REFLEX,RR

28012-1054

$20.82

28012B

REFLECTOR-REFLEX,RR

28012-1066

$36.58

92002

BOLT,6X12

92002-1132

$1.32

92002A

BOLT,TORX,6X16

92002-1333

$2.15

92009

SCREW,5X20

92009-1459

$3.92

92009A

SCREW,5X12

92009-1540

$3.53

92015

NUT,FLANGED,5MM

92015-1259

$3.12

92015A

NUT,FLANGED,6MM

92015-1367

$2.93

92081

SPRING,BRAKE LAMP SWITCH

27011-011

$6.75

92143

COLLAR,22.2X28X2

92143-1489

Unavailable

92160

DAMPER,REFLECTOR

92160-1288

Unavailable

235

SCREW-PAN-WP-CROS,6X20

235C0620

Unavailable

411

WASHER-PLAIN,6MM

411E0600

$1.19

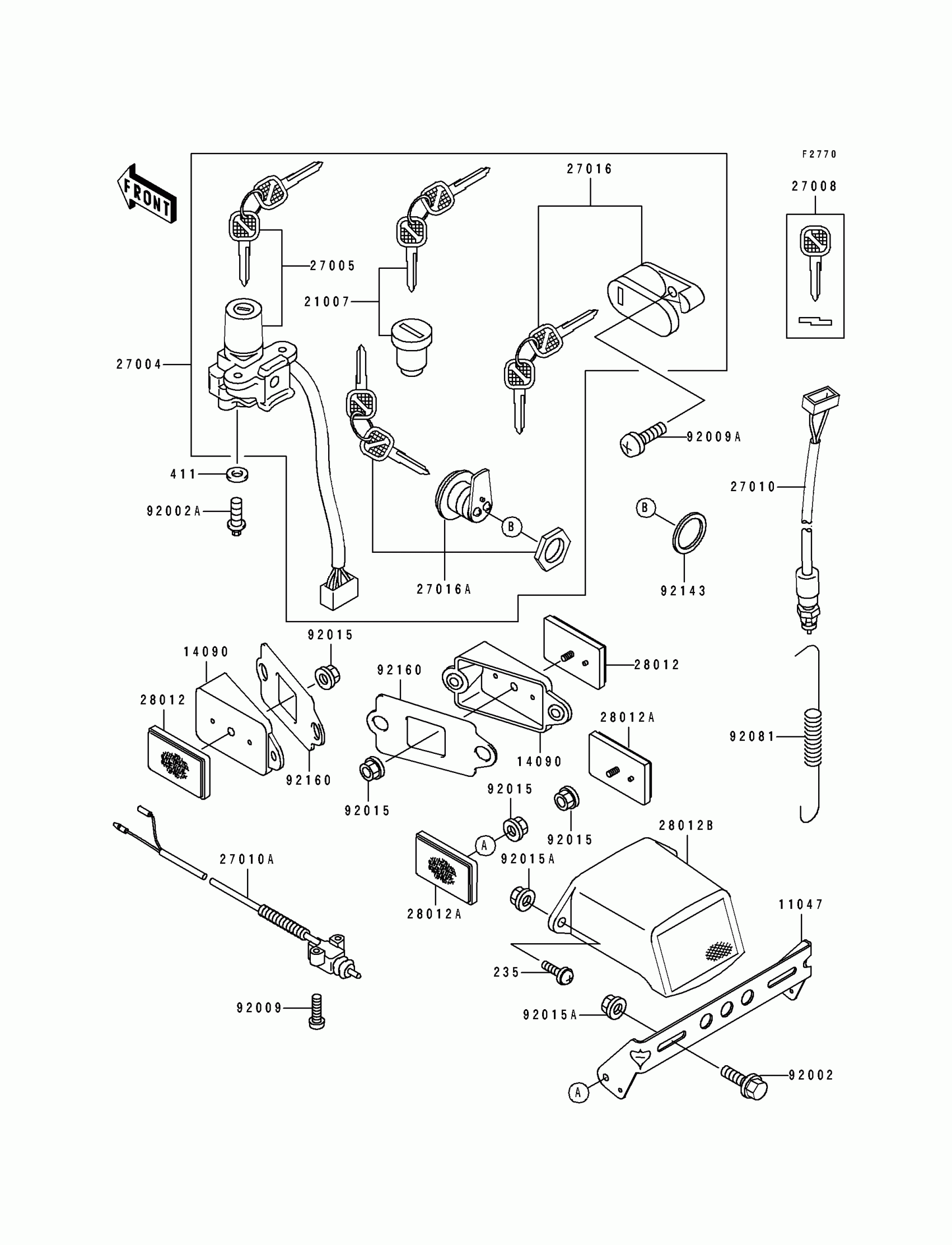

Kawasaki Ninja® ZX™-7R Ignition Switch Diagram

COVER,REFLECTOR

SWITCH-ASSY

SWITCH-ASSY-IGNITION

KEY-LOCK,BLANK

LOCK-ASSY,HELMET

COLLAR,22.2X28X2

DAMPER,REFLECTOR

SCREW-PAN-WP-CROS,6X20
