1989 Kawasaki Ninja® ZX™-7 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1989 Kawasaki Ninja® ZX™-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

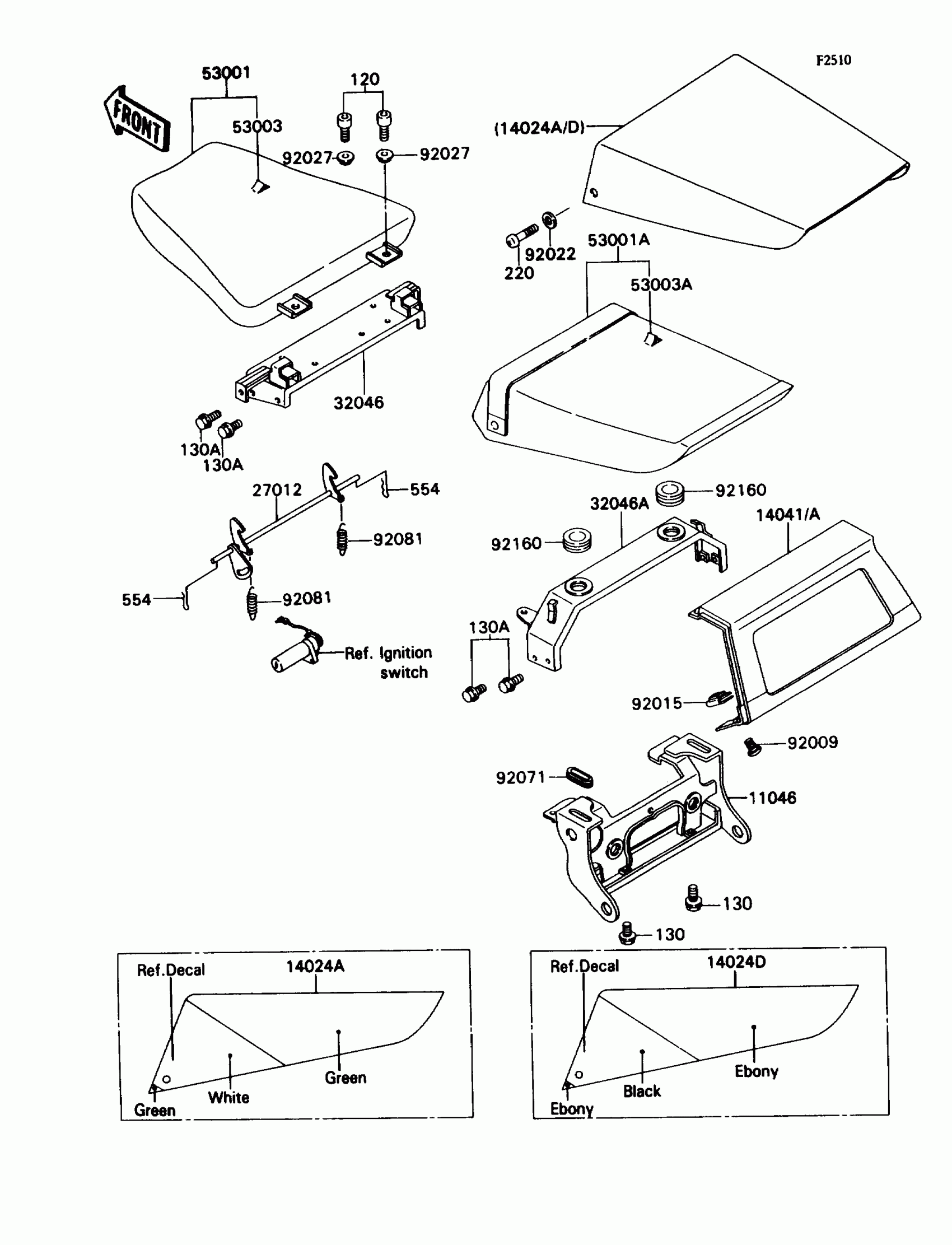

1989 Kawasaki Ninja® ZX™-7 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11046

BRACKET,SEAT COVER

11046-1539

1
Out of stock

14024A

COVER,SINGLE SEAT,L.GREEN

14024-5155-7F

1
Out of stock

14024D

COVER,SINGLE SEAT,EBONY

14024-5158-H8

1
Out of stock

14041

COVER-COMP,SEAT,EBONY

14041-1094-H8

1

$110.41

In stock

14041A

COVER-COMP,SEAT,L.GREEN

14041-1094-7F

1
Out of stock

27012

HOOK,SEAT

27012-1400

1
Out of stock

32046

BRACKET-SEAT,CNT

32046-1325

1
Out of stock

32046A

BRACKET-SEAT,RR

32046-1326

1
Out of stock

53001

SEAT-ASSY,FR,BLACK

53001-1573-MA

1

$362.92

In stock

53001A

1

$362.92

In stock

53003

LEATHER,FRONT SEAT,BLACK

53003-1218-MA

1

$142.46

In stock

53003A

LEATHER,REAR SEAT,BLACK

53003-1219-MA

1

$103.90

In stock

92009

SCREW,5X16,BLACK

92009-1301

1
Out of stock

92015

NUT,5MM

92015-1573

1
Out of stock

92022

WASHER-PLAIN

92022-183

1
Out of stock

92027

COLLAR,L=6.5

92027-252

1
Out of stock

92071

GROMMET

92071-1187

1
Out of stock

92081

SPRING,HOOK RETURN

92081-1580

1
Out of stock

92160

DAMPER

92160-1012

1
Out of stock

120

BOLT-SOCKET,6X16

120S0616

1
Out of stock

130

BOLT-FLANGED,6X12

130H0612

1
Out of stock

130A

BOLT-FLANGED,6X14

130H0614

1
Out of stock

220

SCREW-PAN-CROS,6X10,BLACK

220C0610

1
Out of stock

554

PIN,SNAP

554A0600

1
Out of stock
