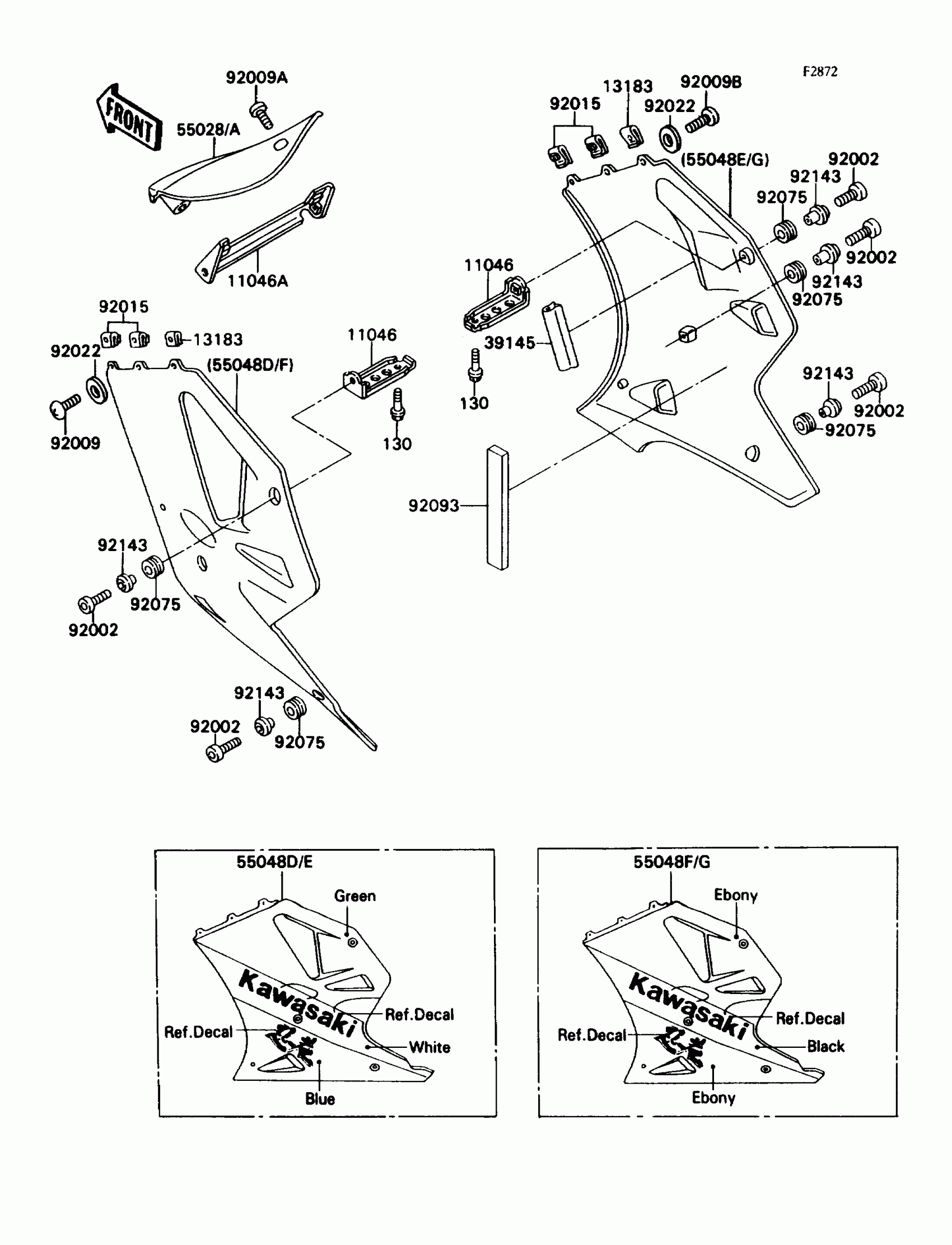

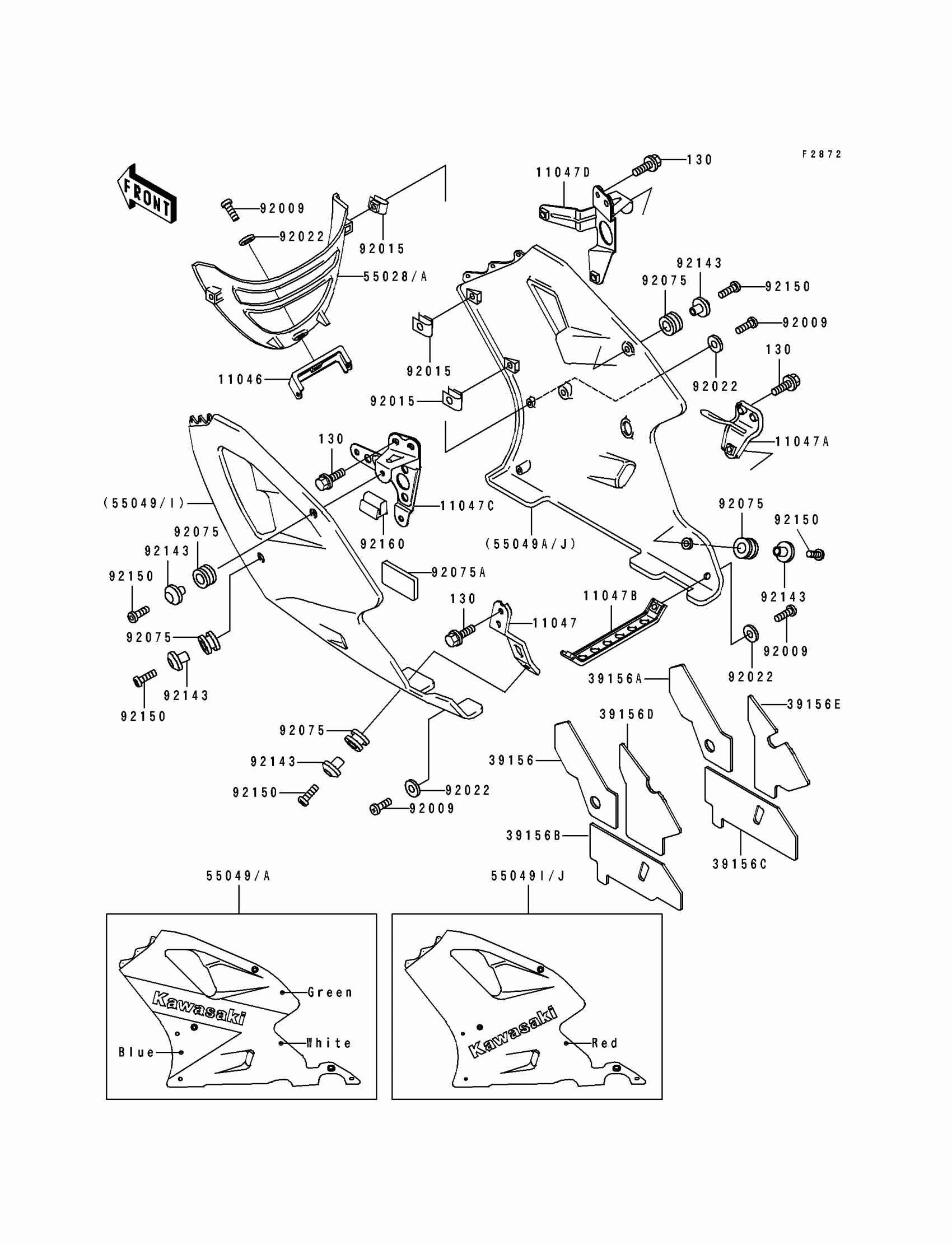

Kawasaki Ninja® ZX™-7 Cowling Lowers Diagram

Description

Price

11046

BRACKET

11046-1512

Unavailable

11046A

BRACKET,LWR COWLING

11046-1516

Unavailable

13183

PLATE

13183-1474

Unavailable

39145

TRIM-SEAL,L=175

39145-1055

$13.17

55028

COWLING,LWR,FR,BLUE 24

55028-1236-DB

Unavailable

55028A

COWLING,LWR,FR,EBONY

55028-1236-H8

$50.75

55048D

COWLING.,SIDE,LH,GREEN/BLUE

55048-5186-DY

$917.88

55048E

COWLING.,SIDE,RH,GREEN/BLUE

55048-5187-DY

$771.94

55048F

COWLING.,SIDE,LH,EBONY

55048-5189-H8

$771.94

55048G

COWLING.,SIDE,RH,EBONY

55048-5190-H8

$736.37

92002

BOLT,SOCKET,6X18,BLACK

92002-1514

$4.67

92009

SCREW,5X16,BLACK

92009-1301

$2.17

92009A

SCREW,5X14,BLACK

92009-1383

$3.03

92009B

SCREW,5X20,BLACK

92009-1453

$3.03

92015

NUT,5MM

92015-1710

$4.67

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$2.99

92075

DAMPER

92075-1634

$3.57

92093

SEAL

92093-1277

Unavailable

92143

COLLAR,BLACK

92143-1226

$9.13

130

BOLT-FLANGED,6X8

130J0608

Unavailable
