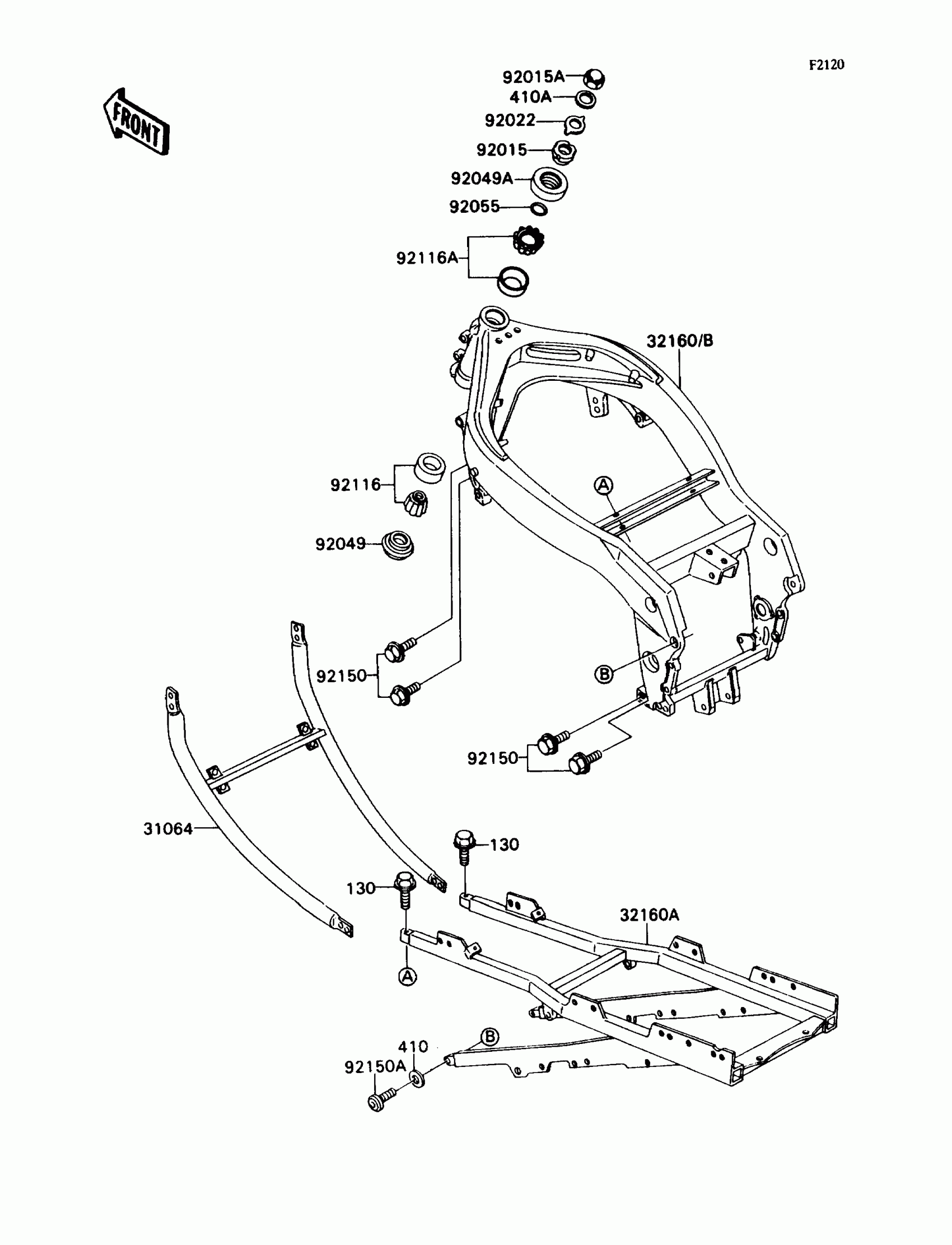

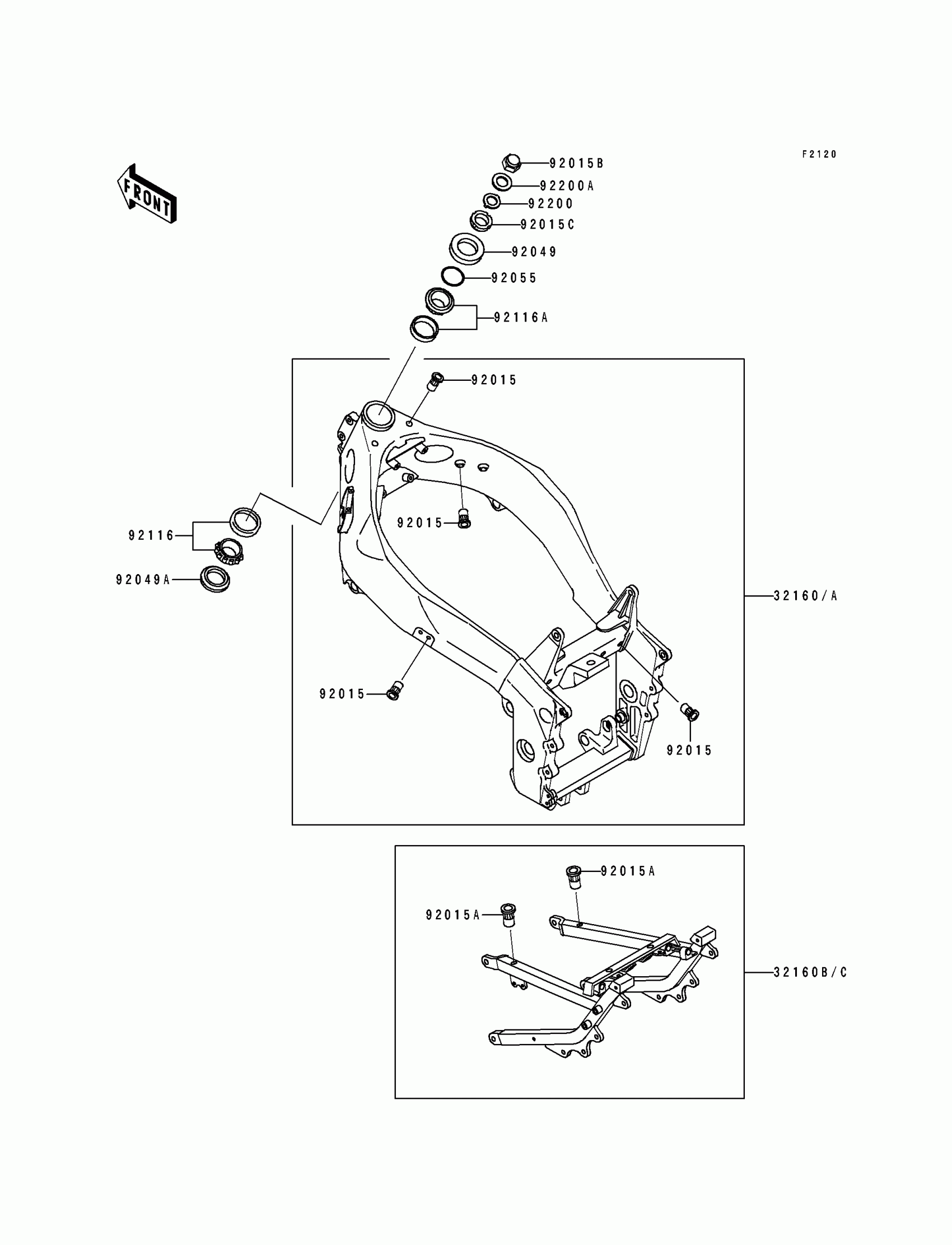

Kawasaki Ninja® ZX™-7 Frame Diagram

Description

Price

31064

PIPE-COMP

31064-1108

$364.46

32160

FRAME-COMP,AL,FR

32160-1054

$1,985.12

32160A

FRAME-COMP,AL,RR

32160-1059

$1,283.92

32160B

FRAME-COMP,AL,FR

32160-1101

$1,985.12

92015

NUT,25MM,T=12

92015-1546

$19.66

92015A

NUT,CAP,18MM

92015-1736

Unavailable

92022

WASHER,CLAW,18.5X30X2.3

92022-1555

$7.49

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

$7.08

92049A

SEAL-OIL,XMH33 70 6.4J-A

92049-1313

$21.61

92055

RING-O,ID=24.5

92055-1459

$3.60

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

$32.44

92116A

BEARING-ROLLER,HI-CAP32005JR-1

92116-1056

$43.76

92150

BOLT,FLANGED,10X30

92150-1174

$4.37

92150A

BOLT,SOCKET,10X23

92150-1221

$4.18

130

BOLT-FLANGED,8X40

130J0840

Unavailable

410

WASHER PLAIN 10MM

410B1000

Unavailable

410A

W-PLAN-S,18MM

410D1800

$1.35
