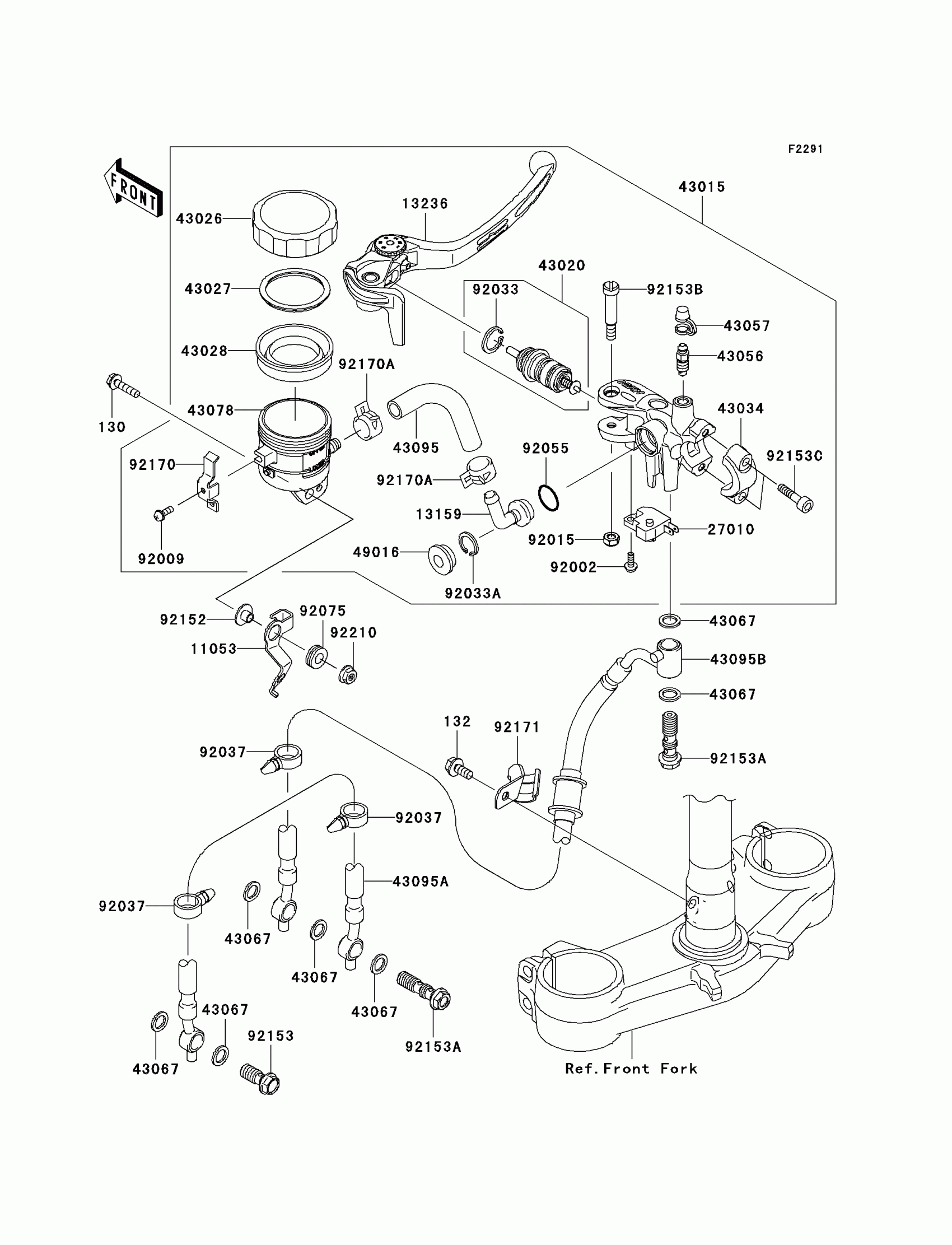

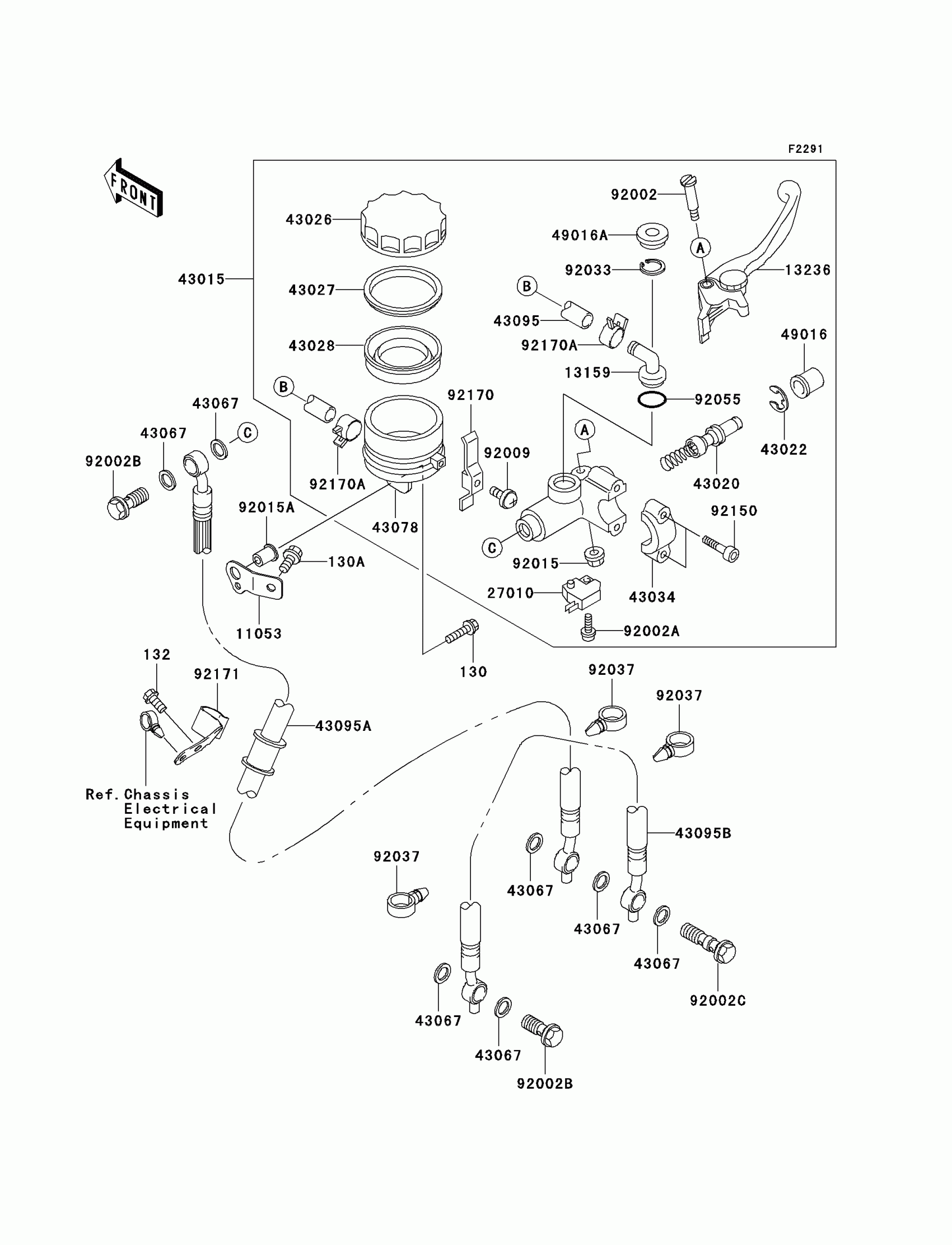

Kawasaki Ninja® ZX™-6RR Front Master Cylinder Diagram

#

Description
Price

130

BOLT-FLANGED

130J0520

Unavailable

130A

BOLT-FLANGED,6X12

130J0612

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

11053

BRACKET,RESERVOIR TANK

11053-0293

$4.41

13159

CONNECTOR

13159-1061

$9.85

13236

LEVER-COMP,FRONT BRAKE

13236-0024

$79.72

27010

SWITCH,BRAKE

27010-1170

$32.62

43015

CYLINDER-ASSY-MASTER,FR

43015-1702

Unavailable

43020

PISTON-COMP-BRAKE,FR

43020-1056

$58.51

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0002

$22.81

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43078

RESERVOIR

43078-1099

$28.99

43095

HOSE-BRAKE,FR MASTER CYLINDER

43095-0027

$18.06

43095A

HOSE-BRAKE,FR

43095-1283

$99.26

43095B

HOSE-BRAKE,FR

43095-1284

Unavailable

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

49016A

COVER-SEAL

49016-1147

$4.72

92002

BOLT,LEVER SET,BLACK

92002-1322

$8.91

92002A

BOLT,SCREW,4X12

92002-1323

$2.99

92002B

BOLT,OIL,L=23

92002-1888

$4.15

92002C

BOLT,OIL,L=37

92002-1909

$9.00

92009

SCREW

92009-1570

$2.49

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92015A

NUT,WELL,5MM

92015-1757

$5.58

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP,HOSE

92037-1827

$5.69

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92150

BOLT

92150-1328

$4.59

92170

CLAMP

92170-1090

$13.69

92170A

CLAMP,HOSE

92170-1091

$3.81

92171

CLAMP,BRAKE HOSE

92171-1546

Unavailable
