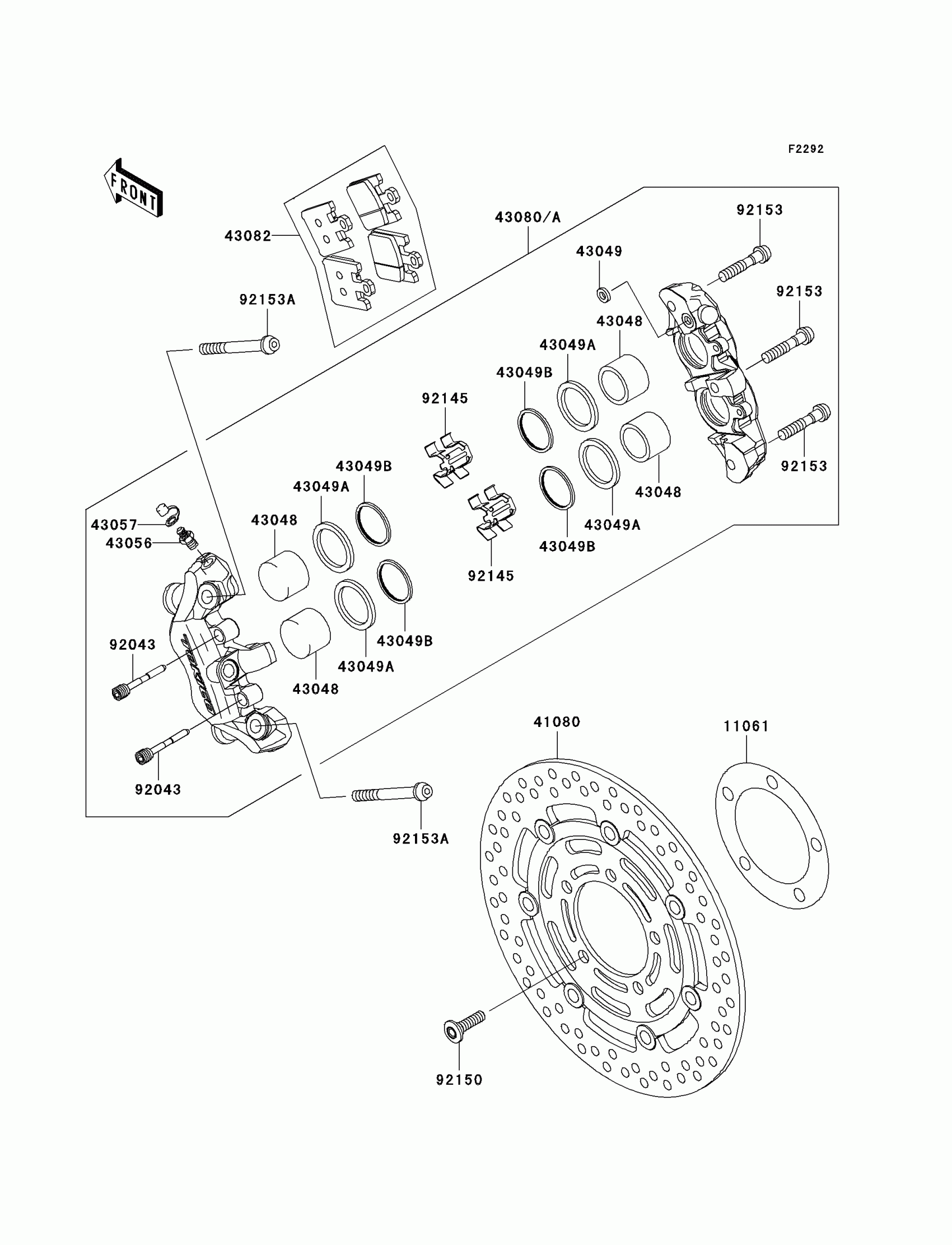

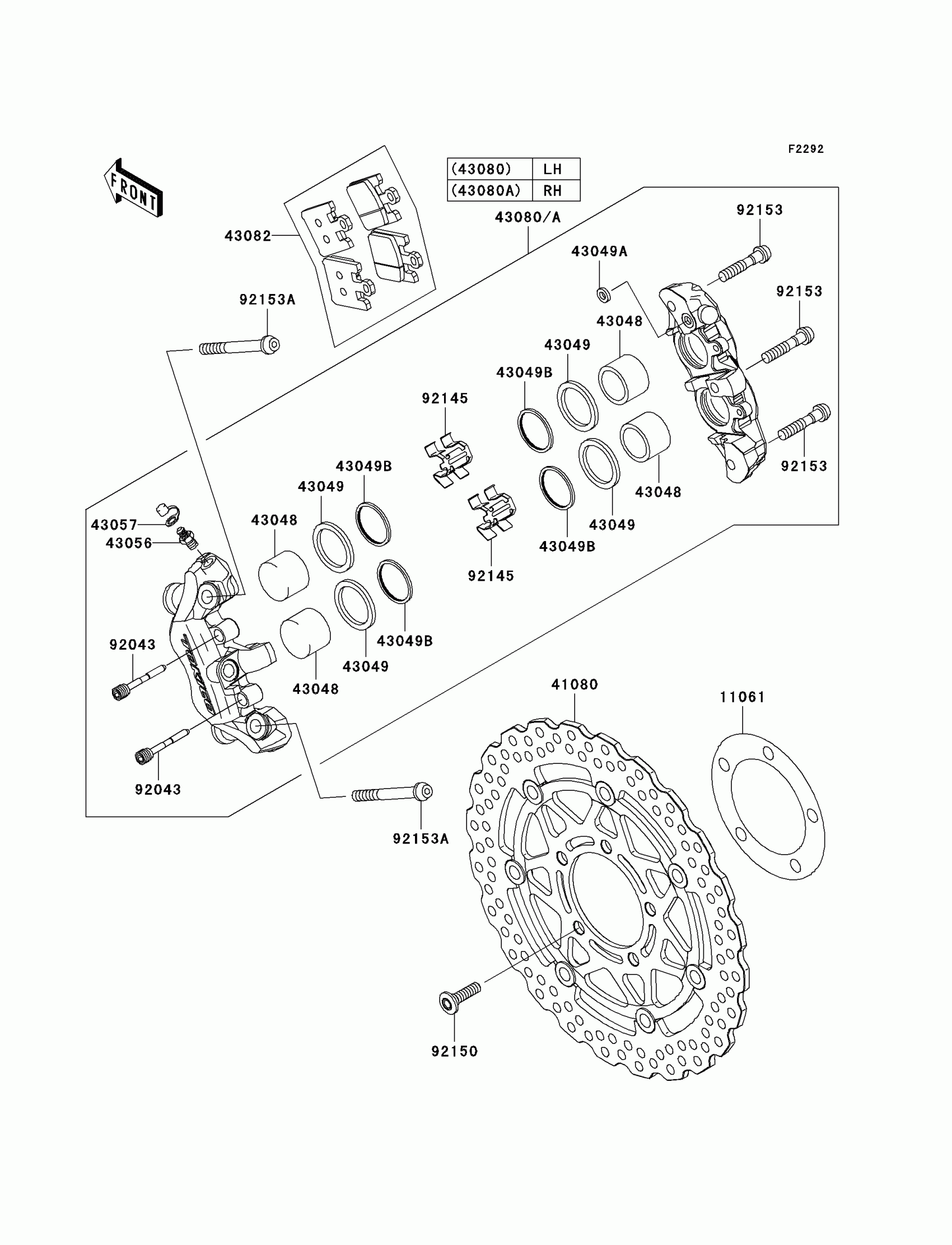

2003 Kawasaki Ninja® ZX™-6RR Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2003 Kawasaki Ninja® ZX™-6RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Kawasaki Ninja® ZX™-6RR Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,DISC PLATE

11061-0029

1
Out of stock

41080

DISC,FR,HOUSING GLD+DISC SIL

41080-1529-488

1
Out of stock

43048

PISTON-CALIPER

43048-1100

1
Out of stock

43049

PACKING,SEAL,6.5X11.5X2.2

43049-1004

1
Out of stock

43049A

PACKING,PISTON

43049-1106

1
Out of stock

43049B

PACKING,WIPER

43049-1107

1
Out of stock

43056

BREATHER-BRAKE

43056-1054

1
Out of stock

43057

CAP-BREATHER

43057-003

1
Out of stock

43080

CALIPER-SUB-ASSY,FR,LH,R.GOLD

43080-0003-483

1
Out of stock

43080A

CALIPER-SUB-ASSY,FR,RH,R.GOLD

43080-0004-483

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-1293

1
Out of stock

92043

PIN,PAD

92043-1709

1
Out of stock

92145

SPRING,PAD

92145-1568

1
Out of stock

92150

BOLT,SOCKET,8X30

92150-1771

1
Out of stock

92153

BOLT,SOCKET,8X40

92153-0360

1
Out of stock

92153A

BOLT,SOCKET,10X60

92153-1247

1
Out of stock
