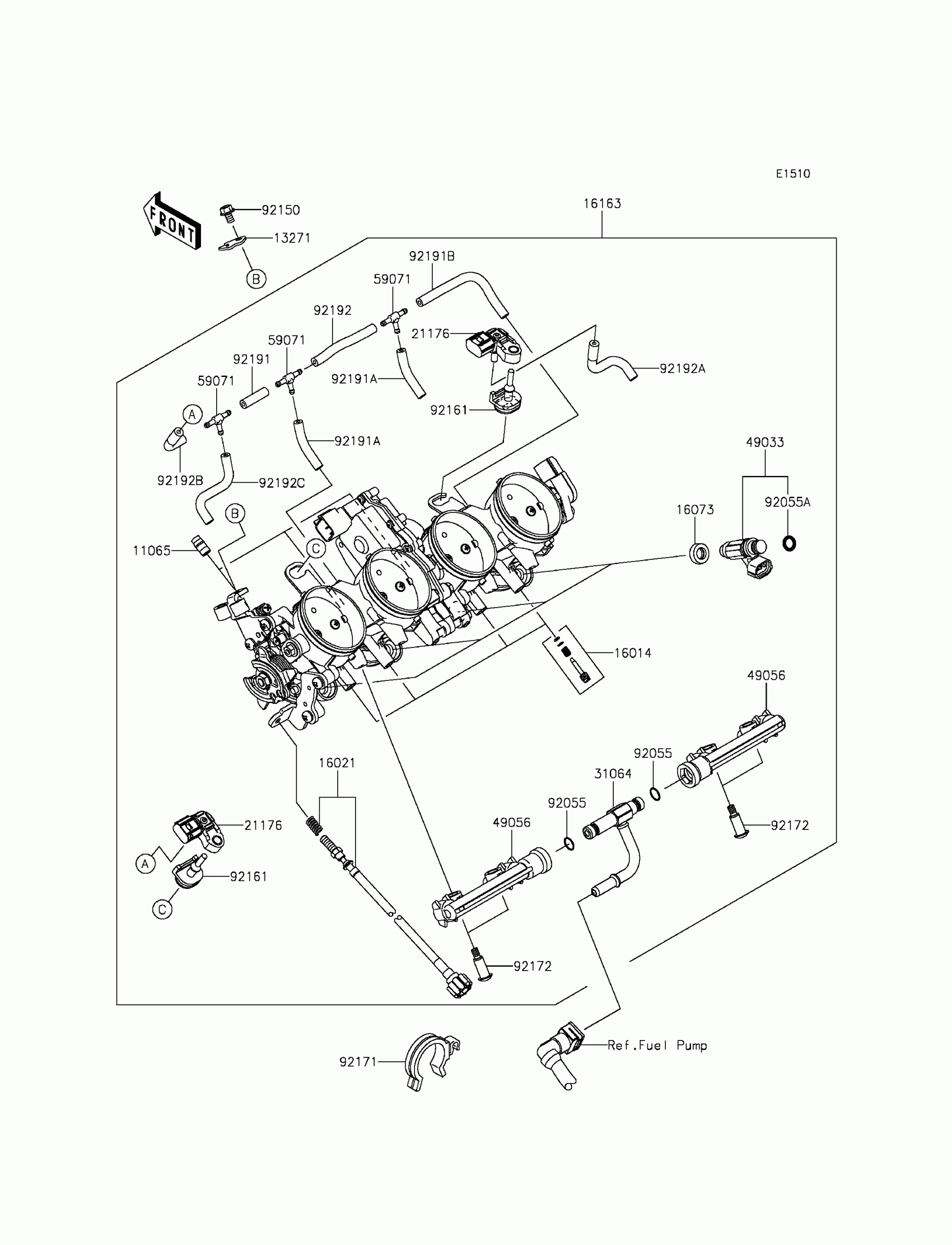

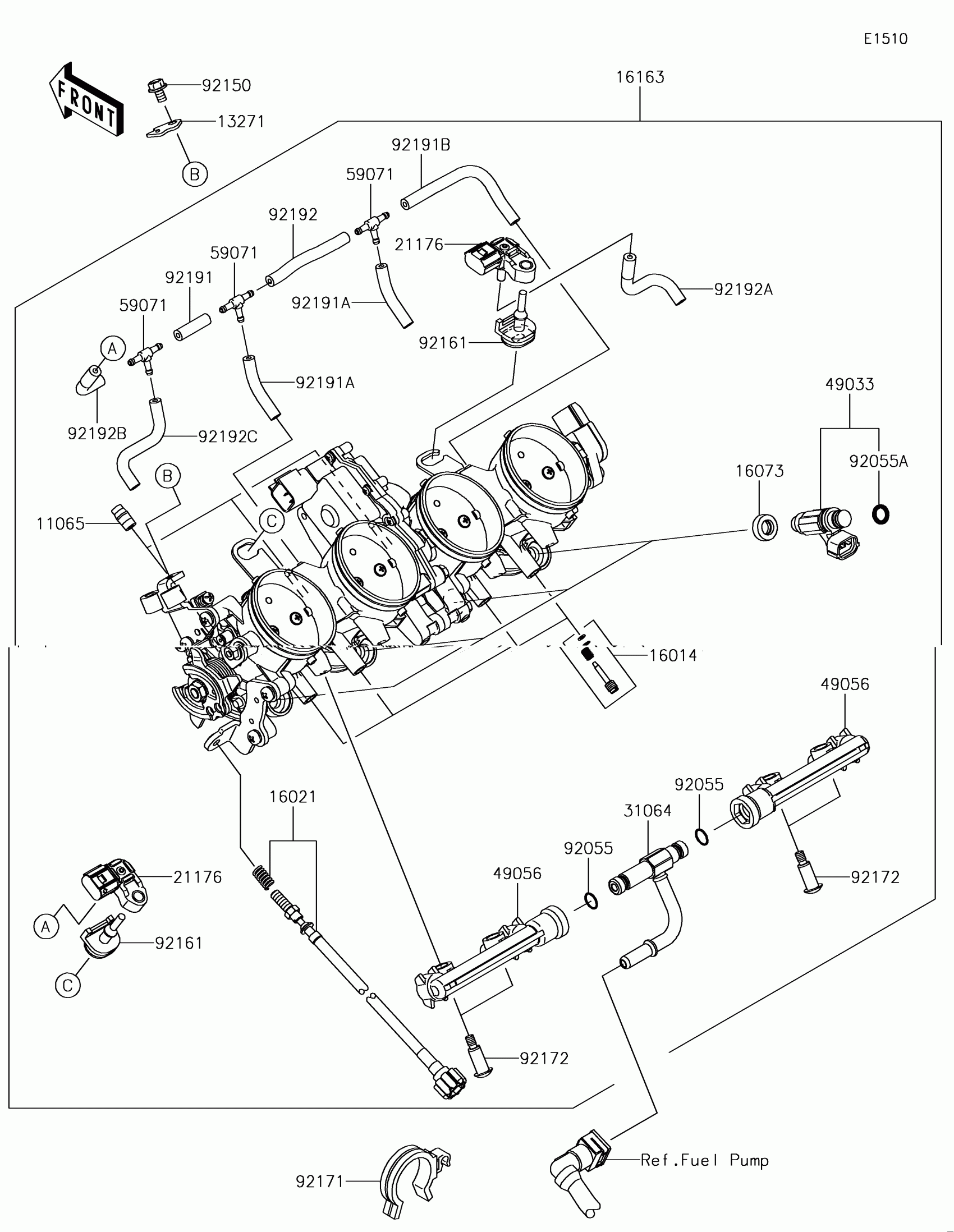

Kawasaki Ninja® ZX™-6R Throttle(CN,US) Diagram

Description

Price

11065

CAP

11065-0018

$4.61

13271

PLATE

13271-0559

Unavailable

16014

SCREW-PILOT AIR

16014-0002

$20.40

16021

SCREW-THROTTLE STOP

16021-0028

$115.41

16073

INSULATOR

16073-3707

$4.65

16163

THROTTLE-ASSY,TTK38

16163-0772

$2,044.09

21176

SENSOR,PRESSURE

21176-0111

$226.99

31064

PIPE-COMP

31064-0622

$92.72

49033

NOZZLE-INJECTION

49033-0012

$135.42

49056

PIPE-INJECTION

49056-0014

$105.63

59071

JOINT,3WAY,T

59071-3752

$7.76

92055

RING-O

92055-0064

$5.84

92055A

RING-O,INJECTION NOZZLE

92055-1622

$1.42

92150

BOLT,5X8

92150-1406

$3.56

92161

DAMPER

92161-0673

$4.85

92171

CLAMP

92171-0359

$9.76

92172

SCREW,PIPE INJECTION

92172-0064

$1.98

92191

TUBE,3X7X25

92191-0020

$1.98

92191A

TUBE,3X7X40

92191-0022

$2.61

92191B

TUBE,3X7X100

92191-0023

$3.71

92192

TUBE,3X7X72

92192-0739

$8.19

92192A

TUBE,THROBO RH-SENSOR

92192-0840

$9.63

92192B

TUBE,THROBO LH-JOINT

92192-0841

$9.63

92192C

TUBE,SENSOR-JOINT

92192-0842

$9.63
