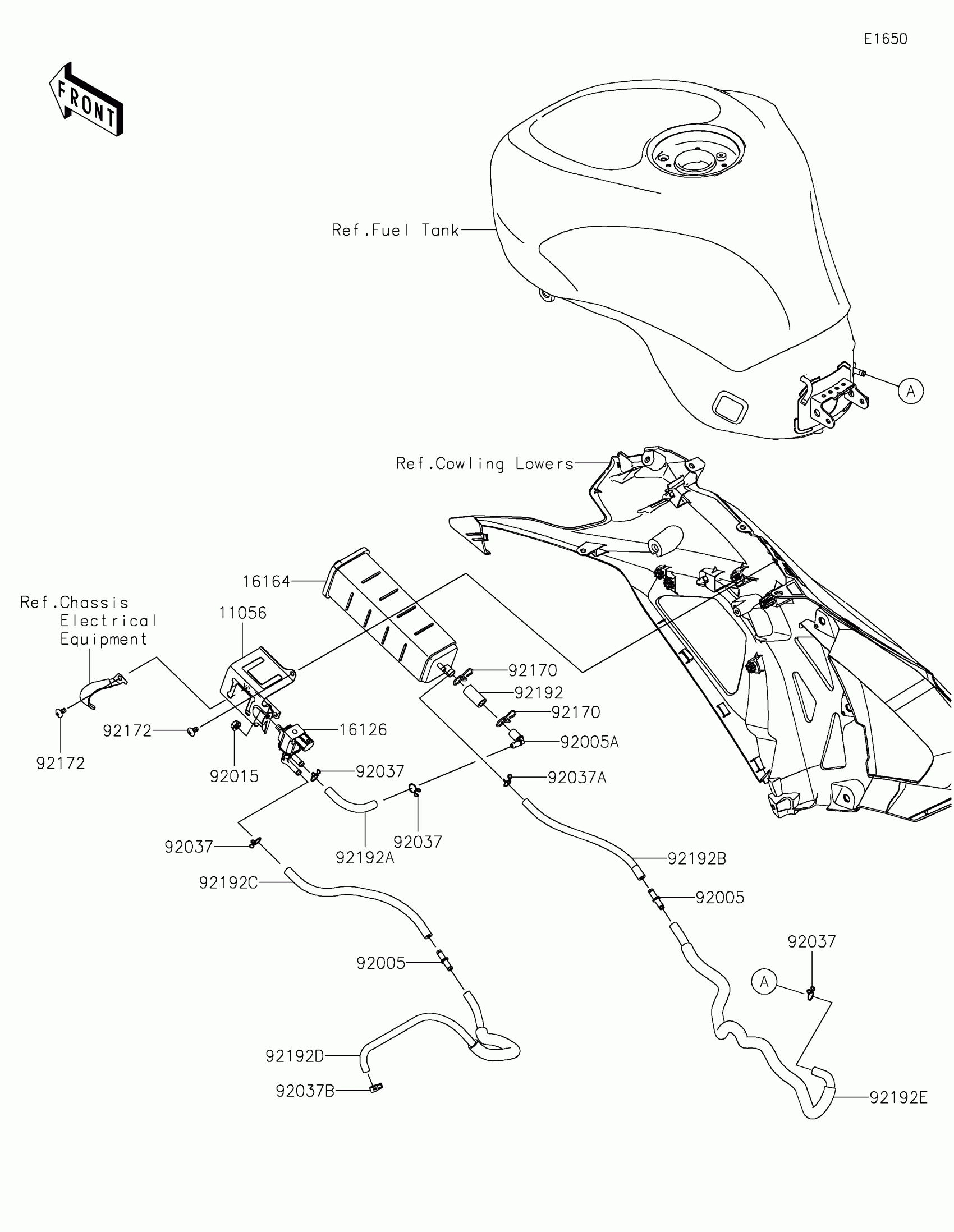

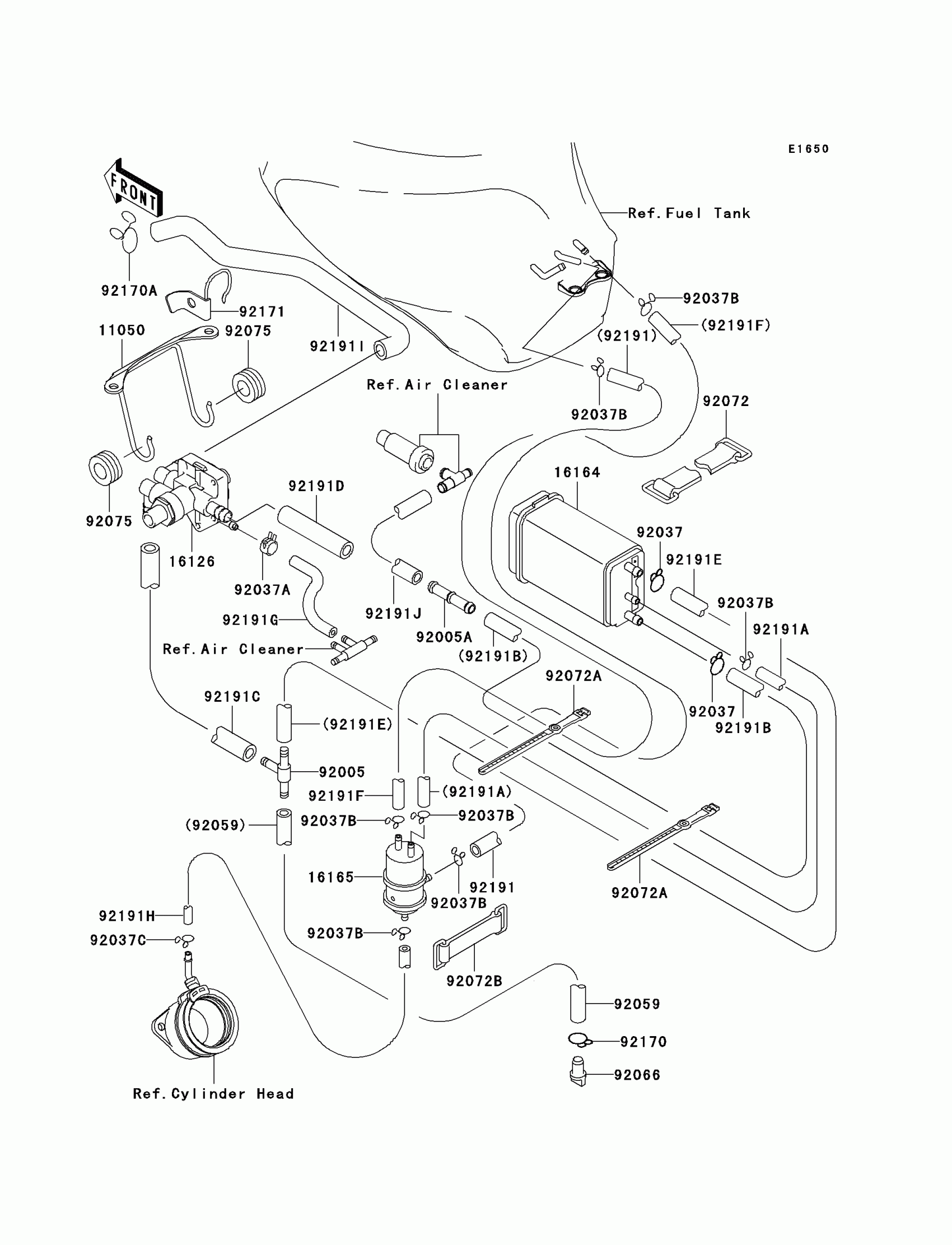

Kawasaki Ninja® ZX™-6R Fuel Evaporative System(CA) Diagram

Description

Price

11050

BRACKET

11050-1729

$22.37

16126

VALVE

16126-1354

$147.11

16164

CANISTER

16164-1052

$134.03

16165

SEPARATOR

16165-1001

$79.83

92005

FITTING

92005-1304

Unavailable

92005A

FITTING

92005-1377

$9.12

92037

CLAMP-HOSE

92037-1104

$1.09

92037A

CLAMP,TUBE

92037-1461

$2.93

92037B

CLAMP,TUBE

92037-147

$5.61

92037C

CLAMP

92037-1712

$3.81

92059

TUBE,7X12X440,YELLOW

92059-1440

$41.92

92066

PLUG,DRAIN

92066-1211

$6.48

92072

BAND,L=90

92072-045

$14.14

92072A

BAND,L=202

92072-1195

$1.16

92072B

BAND,L=50

92072-1419

$12.21

92075

DAMPER,MUFFLER

92075-1621

$8.05

92170

CLAMP

92170-1529

$4.25

92170A

CLAMP

92170-1997

$1.89

92171

CLAMP

92171-1236

$19.37

92191

TUBE,SEPARATOR-TANK,RED

92191-1234

$10.27

92191A

TUBE,SEPARATOR-CANIST,BLUE

92191-1236

$21.85

92191B

TUBE,CANISTER-FILTER,GREEN

92191-1237

$30.17

92191C

TUBE,VALVE-FITTING,YELLOW

92191-1238

$15.76

92191D

TUBE,CARB-VALVE

92191-1240

$2.71

92191E

TUBE,FITTING-CANIST,YELLOW

92191-1250

$24.80

92191F

TUBE,SEPARATOR-TANK,BLUE

92191-1268

$10.27

92191G

TUBE,FITTING-VALVE

92191-1275

$4.02

92191H

TUBE,SEPARATOR-CARB,WHITE

92191-1276

$7.51

92191I

TUBE,AIR VENT-VALVE

92191-1503

$14.97

92191J

TUBE

92191-1514

$14.97
