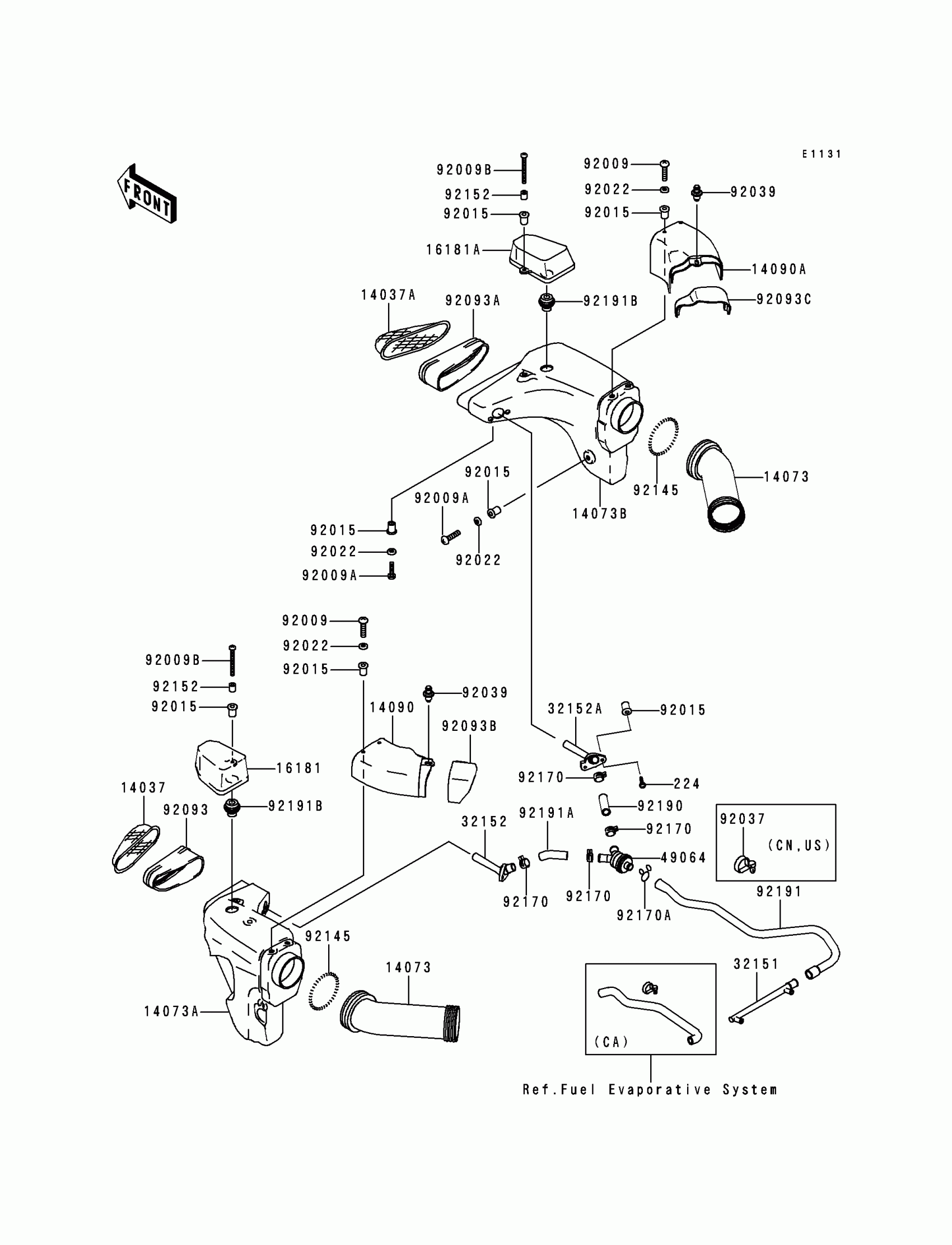

Kawasaki Ninja® ZX™-6R Air Duct Diagram

#

Description
Price

224

SCREW-PAN-WP-CROS

224C0520

$3.92

14037

SCREEN,DUCT,LH

14037-1254

Unavailable

14037A

SCREEN

14037-1255

Unavailable

14073

DUCT,INNER

14073-1720

$48.66

14073A

DUCT,RAM,LH,M.F.C.GRAY

14073-1732-E4

Unavailable

14073B

DUCT,RAM,RH,M.F.C.GRAY

14073-1733-E4

Unavailable

14090

COVER,RAM DUCT,LH,M.F.C.GRAY

14090-1918-E4

Unavailable

14090A

COVER,RAM DUCT,RH,M.F.C.GRAY

14090-1919-E4

Unavailable

16181

TANK-RESONATOR,LH,M.F.C.GRAY

16181-1091-E4

Unavailable

16181A

TANK-RESONATOR,RH,M.F.C.GRAY

16181-1092-E4

Unavailable

32151

PIPE

32151-1317

Unavailable

32152

PIPE,LH

32152-1628

Unavailable

32152A

PIPE,RH

32152-1629

Unavailable

49064

FILTER-AIR

49064-1061

$28.88

92009

SCREW,5X16,BLACK

92009-1654

$2.17

92009A

SCREW,5X20,BLACK

92009-1656

$3.03

92009B

SCREW,5X35

92009-1847

Unavailable

92015

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$2.99

92039

RIVET

92039-1227

$1.33

92093

SEAL,DUCT,LH

92093-1466

Unavailable

92093A

SEAL,DUCT,RH

92093-1467

Unavailable

92093B

SEAL,COVER,LH

92093-1478

$8.59

92093C

SEAL,COVER,RH

92093-1479

$7.41

92145

SPRING,BOOT

92145-1162

$9.10

92152

COLLAR

92152-1103

Unavailable

92170

CLAMP

92170-1909

$3.55

92170A

CLAMP

92170-1997

$1.89

92190

TUBE,RH

92190-1502

$2.71

92191A

TUBE,LH

92191-1273

Unavailable

92191B

TUBE

92191-1285

Unavailable

92037

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92191

TUBE

92191-1227

Unavailable
