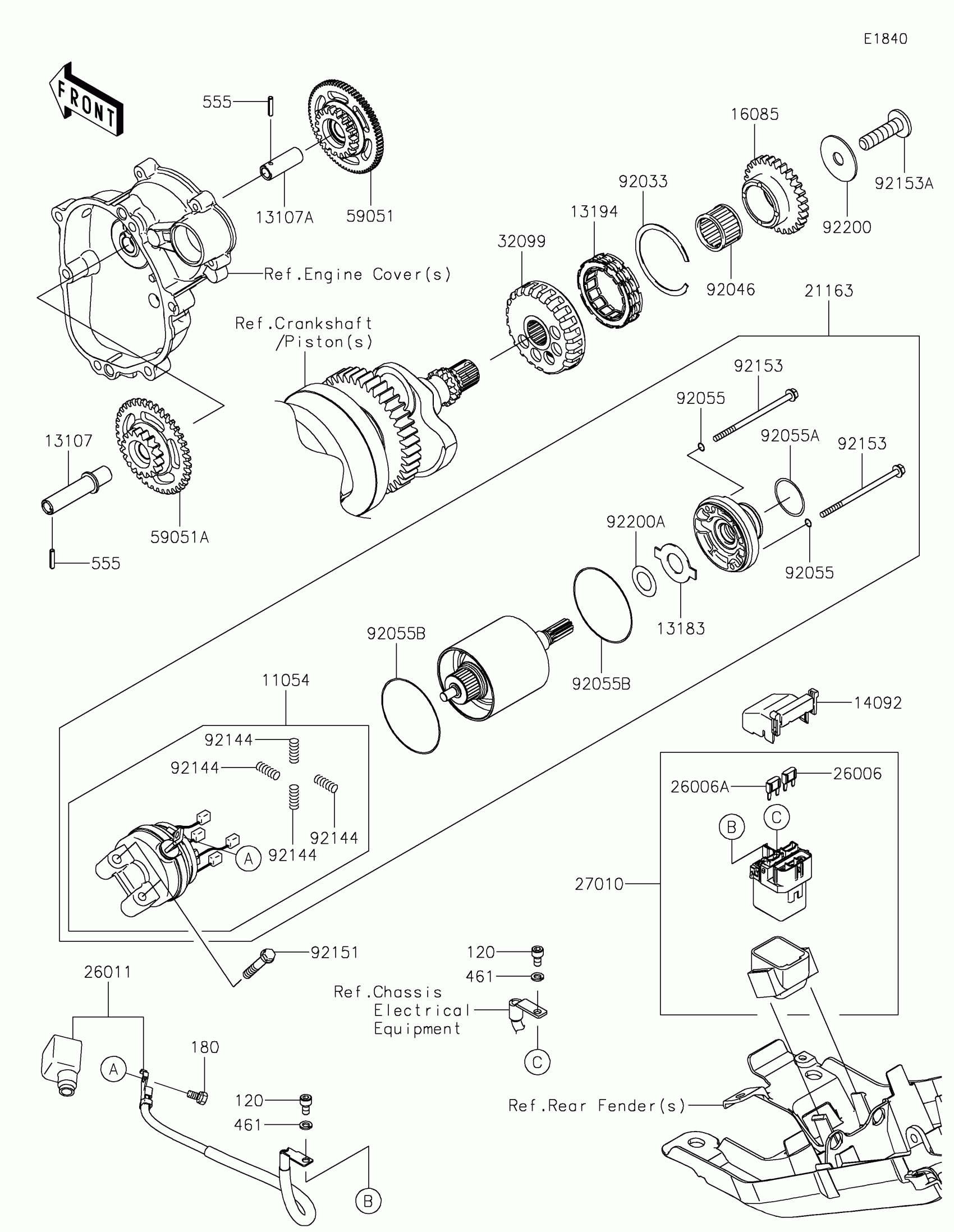

Kawasaki Ninja ZX-6R (CA) Starter Motor Diagram

#

Description
Price

11054

BRACKET

11054-1175

$154.19

13107

SHAFT,ONEWAY CLUTCH SIDE

13107-0168

$64.91

13107A

SHAFT,STARTER SIDE

13107-0174

$12.95

13183

PLATE

13183-1460

$12.32

13194

CLUTCH-ONEWAY

13194-3705

$106.33

14092

COVER

14092-0109

$9.22

16085

GEAR,29T

16085-0101

$119.06

21163

STARTER-ELECTRIC

21163-0734

$624.38

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26011

WIRE-LEAD

26011-1885

$39.03

27010

SWITCH,MAGNETIC

27010-0794

$149.48

32099

CASE,STARTER CLUTCH

32099-0026

$107.48

59051

GEAR-SPUR,STARTER SIDE

59051-0094

$78.52

59051A

GEAR-SPUR,ONEWAY CLUTCH SIDE

59051-0728

$112.09

92033

RING-SNAP

92033-3731

$5.37

92046

BEARING-NEEDLE,RS263020

92046-0004

$22.86

92055

RING-O,STARTER

92055-0013

$11.10

92055A

RING-O

92055-0126

$4.27

92055B

RING-O

92055-1455

$9.47

92144

SPRING,BRUSH

92144-1423

$3.59

92151

BOLT,6X35

92151-1874

$1.98

92153

BOLT

92153-0405

$20.34

92153A

BOLT,TORX,10X38

92153-1521

$6.62

92200

WASHER,10.5X37X1.6

92200-0238

$3.51

92200A

WASHER

92200-1019

$5.61

120

BOLT-SOCKET,5X10

120CB0510

Unavailable

180

BOLT-UPSET-WS,5X10

180BA0510

$1.20

461

WASHER-SPRING,5MM

461DB0500

$1.29

555

PIN-SPRING,3X16

555A0316

$1.05
