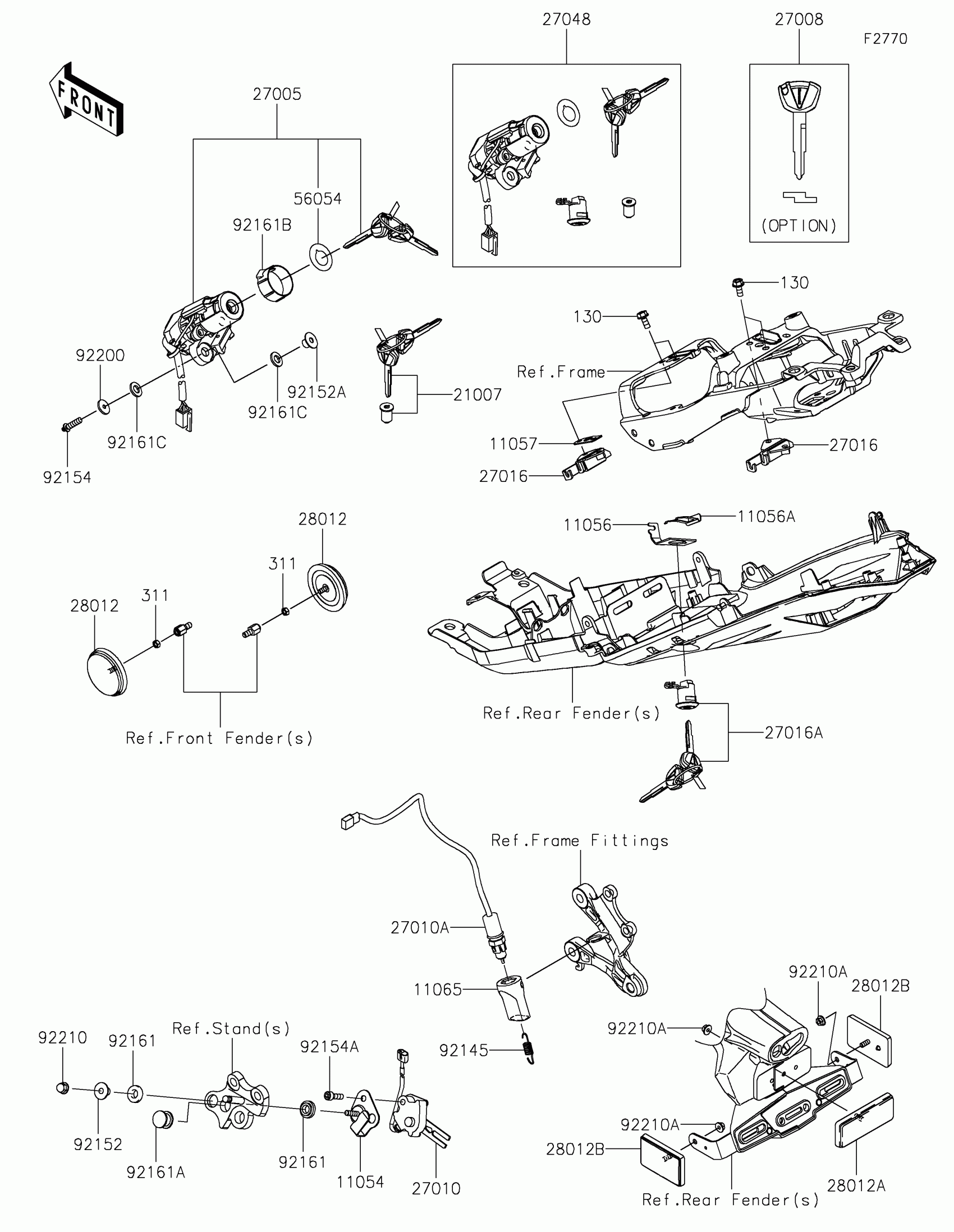

Kawasaki Ninja ZX-6R (CA) Ignition Switch/Locks/Reflectors Diagram

Description

Price

11054

BRACKET,SIDE STAND SWITCH

11054-1904

$10.83

11056

BRACKET

11056-0237

$3.36

11056A

BRACKET,CLASP

11056-0238

$4.53

11057

BRACKET,FR

11057-2650

$2.41

11065

CAP,RR BRAKE SWITCH

11065-0381

$11.59

21007

ROTOR,LOCK,TANK CAP

21007-5068

$90.02

27005

SWITCH-ASSY-IGNITION

27005-0568

$178.58

27008

KEY-LOCK,BLANK

27008-0069

$19.64

27010

SWITCH,SIDE STAND

27010-0741

$118.06

27010A

SWITCH,RR BRAKE

27010-0867

$33.64

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

$29.14

27016A

LOCK-ASSY,SEAT

27016-5373

$92.15

27048

SWITCH-ASSY

27048-5023

$410.42

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$19.59

28012A

REFLECTOR-REFLEX

28012-1077

$21.76

28012B

REFLECTOR-REFLEX

28012-1088

$18.15

56054

MARK,IGNITION SWITCH

56054-0969

Unavailable

92145

SPRING,REAR BRAKE SWITCH

92145-1890

$3.25

92152

COLLAR

92152-1074

$4.67

92152A

COLLAR,6.8X10X11.6

92152-1699

$3.93

92154

BOLT,TORX,6X24

92154-1129

$3.13

92154A

BOLT,SOCKET,6X22

92154-1898

$1.54

92161

DAMPER

92161-0117

$2.36

92161A

DAMPER

92161-0118

$2.36

92161B

DAMPER

92161-1506

$4.97

92161C

DAMPER,10X17X3

92161-1507

$1.87

92200

WASHER,6X20X1.6

92200-0212

$2.31

92210

NUT,CAP,6MM

92210-0003

$0.60

92210A

NUT,FLANGED,5MM

92210-0007

$1.90

130

BOLT-FLANGED,6X14

130BC0614

$1.27

311

NUT-HEX,5MM

311AB0500

$0.46
