2023 Kawasaki Ninja ZX-6R (CA) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2023 Kawasaki Ninja ZX-6R (CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

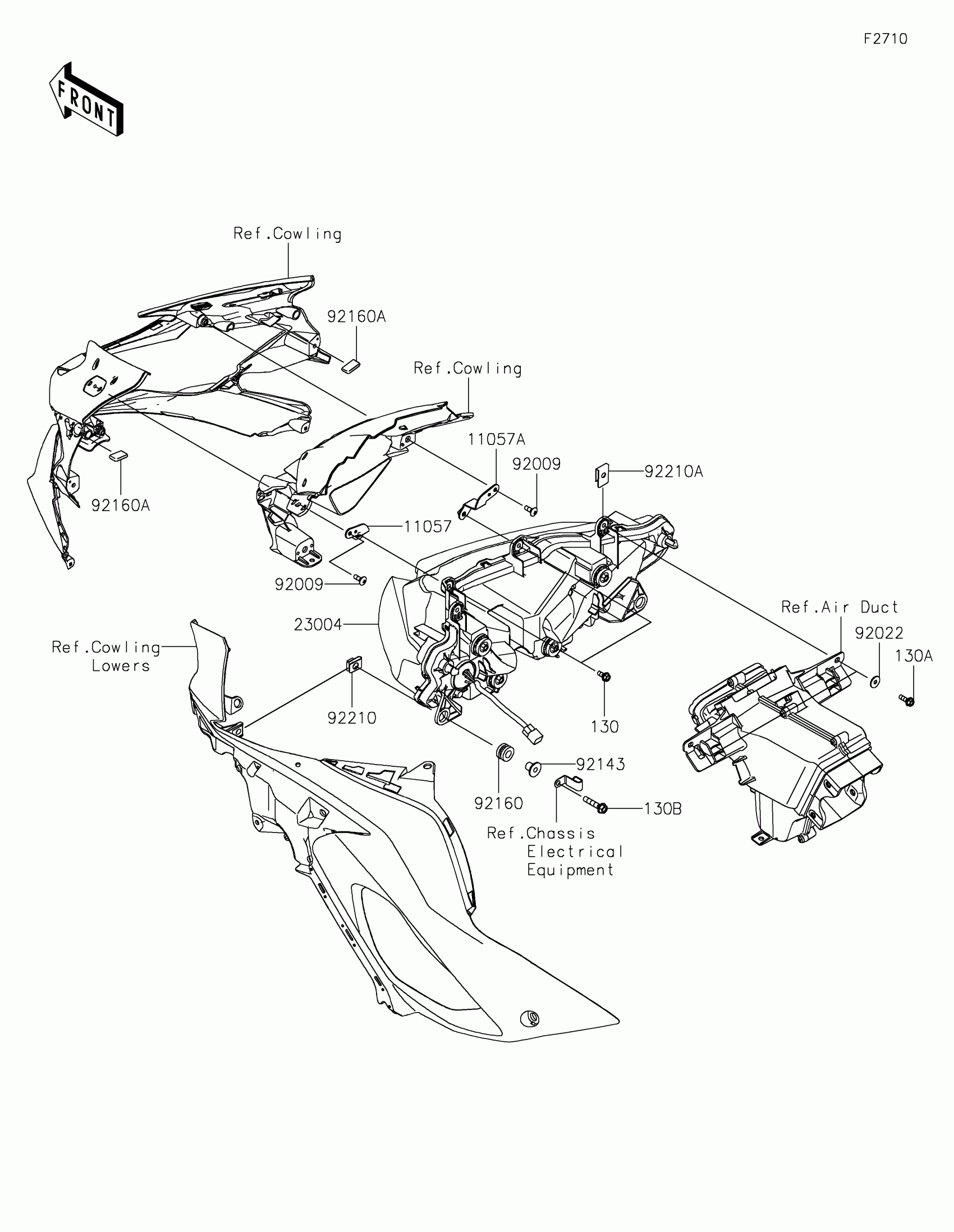

2023 Kawasaki Ninja ZX-6R (CA) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,LH

11057-1639

1
Out of stock

11057A

BRACKET,RH

11057-1640

1
Out of stock

23004

LAMP-HEAD,LED

23004-0420

1
Out of stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92143

COLLAR

92143-1353

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

92160A

DAMPER

92160-1190

1
Out of stock

92210

NUT

92210-0130

1
Out of stock

92210A

NUT

92210-1652

1
Out of stock

130

BOLT-FLANGED,5X12

130BA0512

1
Out of stock

130A

BOLT-FLANGED,5X16

130BA0516

1
Out of stock

130B

BOLT-FLANGED,6X30

130BB0630

1
Out of stock
