1990 Kawasaki Ninja® ZX™-6 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1990 Kawasaki Ninja® ZX™-6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

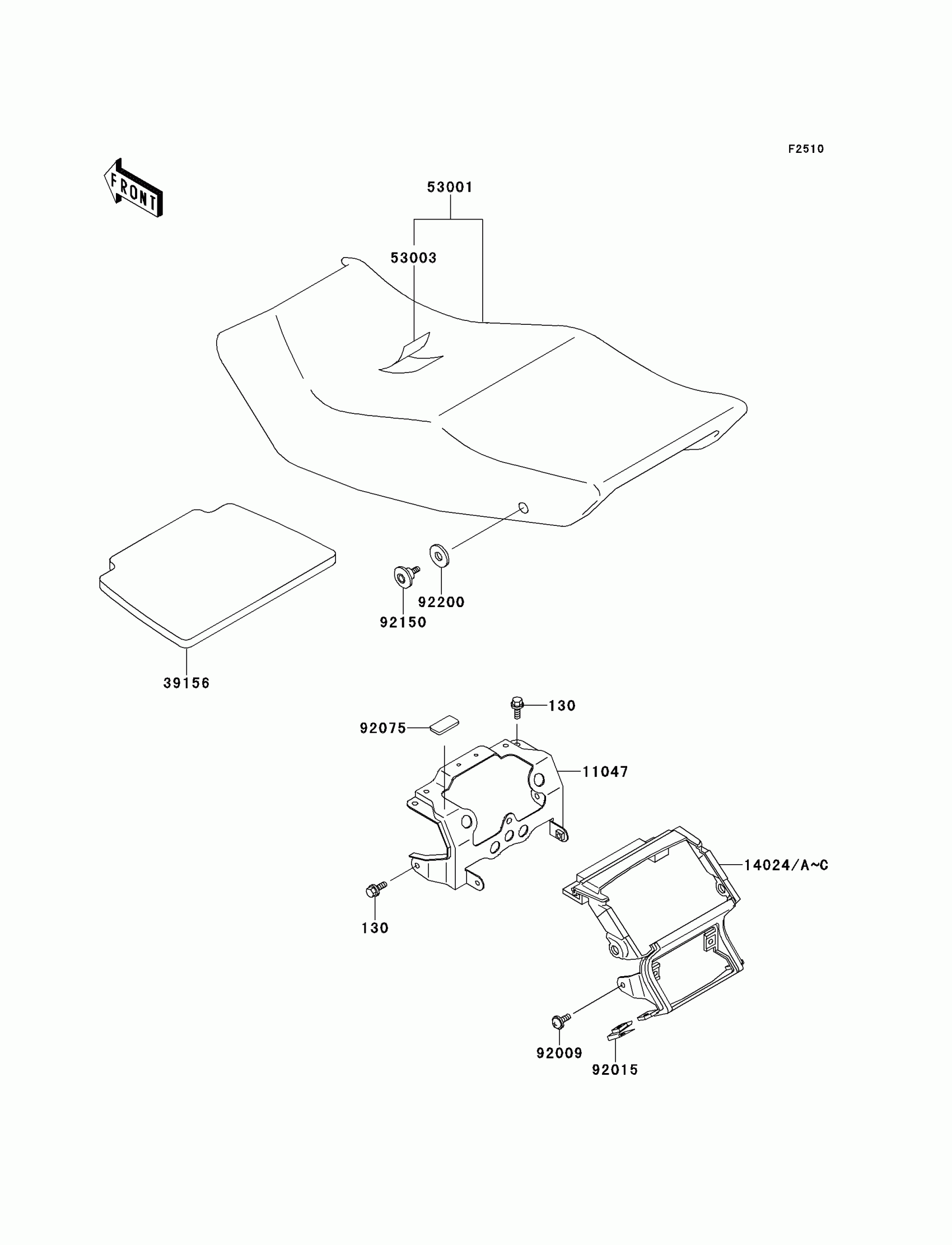

1990 Kawasaki Ninja® ZX™-6 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

11047

BRACKET,TAIL

11046-1950

1
Out of stock

39156

PAD,SEAT

39156-1214

1

$22.51

In stock

53001

SEAT-ASSY,DUAL,BLACK

53001-1601-MA

1

$525.52

In stock

53003

LEATHER,SEAT,BLACK

53003-1237-MA

1

$228.25

In stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92015

NUT,5MM

92015-1798

1
Out of stock

92075

DAMPER

92075-1883

1
Out of stock

92150

BOLT,SOCKET,6MM

92150-1154

1
Out of stock

92200

WASHER,10.3X20X1

92200-1013

1
Out of stock

14024

COVER,TAIL,M.S.BLUE

14024-1897-GW

1
Out of stock

14024A

COVER,TAIL,ROSE OPERA

14024-1897-HC

1
Out of stock

14024B

COVER,TAIL,M.S.BLUE

14024-1897-HM

1
Out of stock

14024C

COVER,TAIL,ROSE OPERA

14024-1897-HS

1
Out of stock
