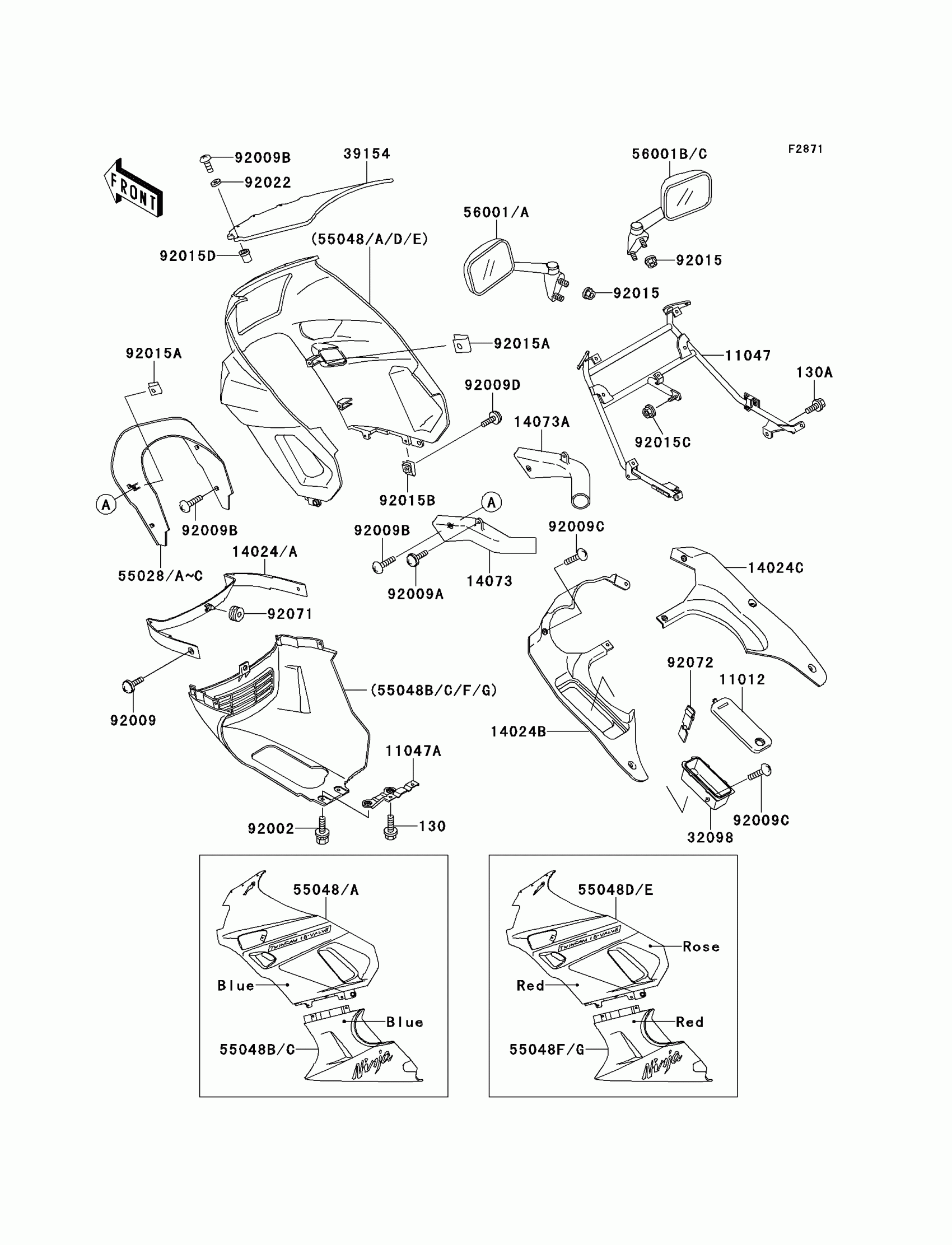

Kawasaki Ninja® ZX™-6 Cowling Diagram

#

Description
Price

11012

CAP,INNER COWLING,LH

11012-1735

$42.11

11047

BRACKET,COWLING

11046-1962

$426.31

11047A

BRACKET,LWR COWLING

11047-1091

$23.68

14024B

COVER,INNER COWLING,LH

14024-1901

Unavailable

14024C

COVER,INNER COWLING,RH

14024-1902

Unavailable

14073

DUCT,AIR INTAKE,LH

14073-1426

Unavailable

14073A

DUCT,AIR INTAKE,RH

14073-1427

Unavailable

32098

CASE-TOOL

32098-1093

$44.29

39154

WINDSHIELD

39154-1109

Unavailable

56001

MIRROR-ASSY,LH,C.A.BLUE

56001-1392-FC

$180.83

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED,8X12

130J0812

Unavailable

56001A

MIRROR-ASSY,LH,C.C.RED

56001-1392-L1

Unavailable

56001B

MIRROR-ASSY,RH,C.A.BLUE

56001-1393-FC

Unavailable

56001C

MIRROR-ASSY,RH,C.C.RED

56001-1393-L1

Unavailable

92002

BOLT,6X16

92002-1242

$4.19

92009

SCREW,6X14,WHITE

92009-1287

$1.81

92009A

SCREW,6X14

92009-1288

$2.99

92009B

SCREW,5X16,BLACK

92009-1301

$2.17

92009C

SCREW,6X14

92009-1611

$4.08

92009D

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92015A

NUT,5MM

92015-1573

$4.97

92015B

NUT,6MM

92015-1602

$5.61

92015C

NUT,FLANGED,LOCK,8MM

92015-1696

$3.55

92015D

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$2.99

92071

GROMMET

92071-056

$3.25

92072

BAND,L=300

92072-1235

$20.37

14024

COVER,COWLING,CNT,G.GRAY

14024-1877-GD

Unavailable

14024A

COVER,COWLING,CNT,G.GRAY

14024-1877-HN

Unavailable

55028

COWLING,FR,C.A.BLUE

55028-1244-FC

Unavailable

55028A

COWLING,FR,BLUE

55028-1244-HL

$85.36

55028B

COWLING,FR,C.C.RED

55028-1244-HR

Unavailable

55028C

COWLING,FR,C.C.RED

55028-1244-L1

Unavailable

55048

COWLING.,UPP,BLUE/BLUE

55048-5428-GX

Unavailable

55048A

COWLING.,UPP,BLUE/BLUE

55048-5428-HK

Unavailable

55048B

COWLING.,LWR,BLUE/BLUE

55048-5429-GX

Unavailable

55048C

COWLING.,LWR,BLUE/BLUE

55048-5429-HK

Unavailable

55048D

COWLING.,UPP,RED/ROSE OPERA

55048-5430-HF

$1,066.51

55048E

COWLING.,UPP,RED/ROSE OPERA

55048-5430-HP

Unavailable

55048F

COWLING.,LWR,RED/ROSE OPERA

55048-5431-HF

Unavailable

55048G

COWLING.,LWR,RED/ROSE OPERA

55048-5431-HP

Unavailable
