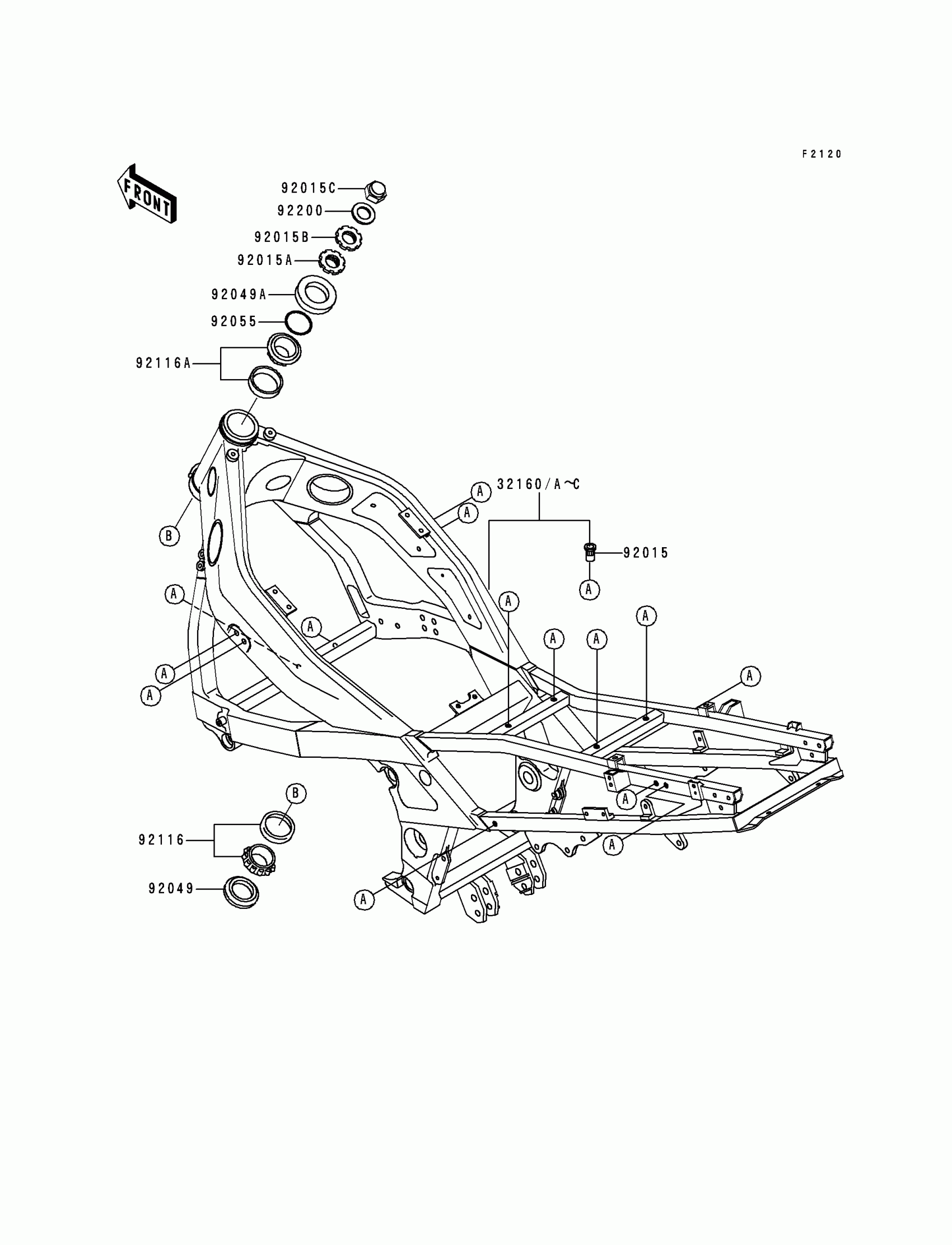

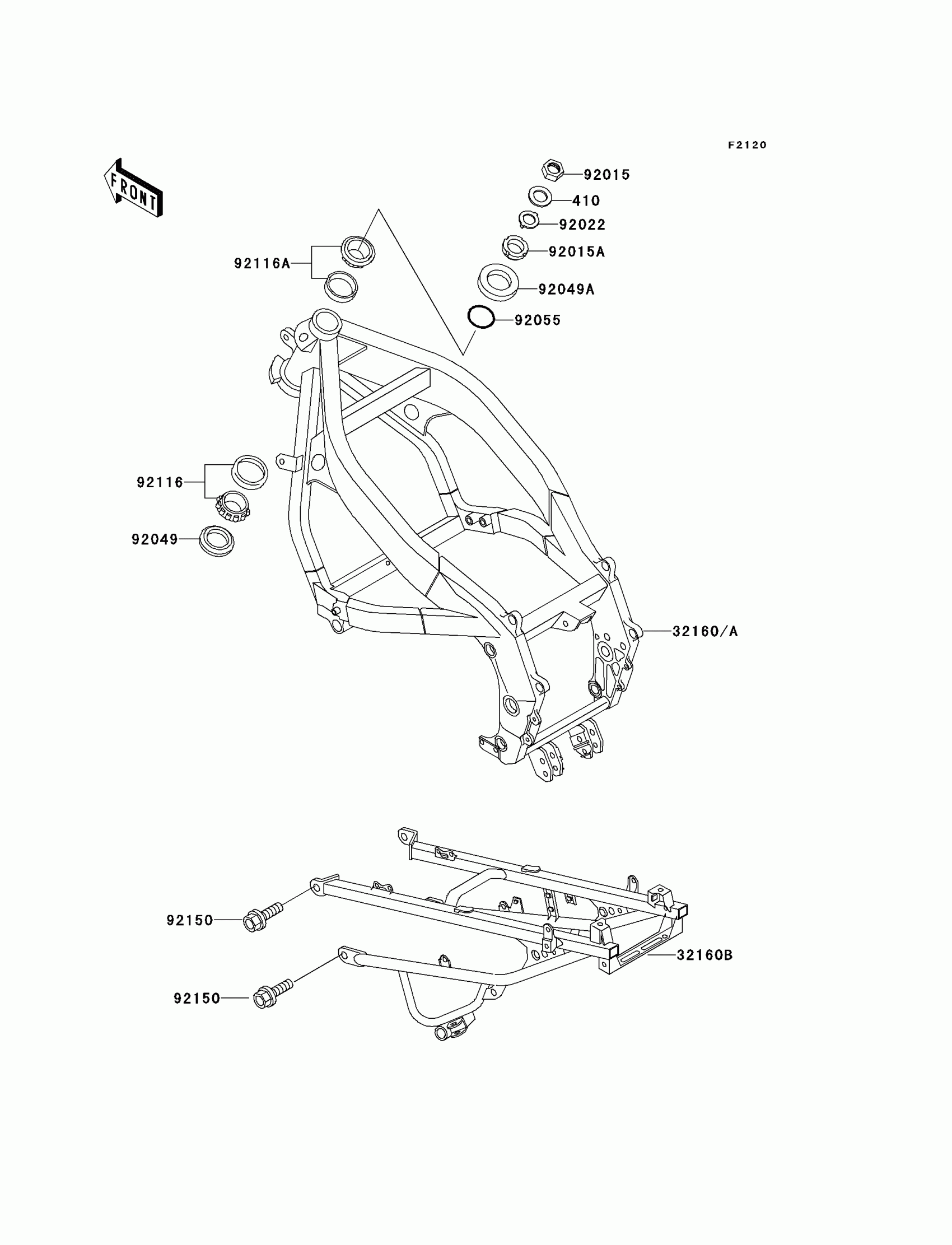

Kawasaki Ninja® ZX™-6 Frame Diagram

Description

Price

410

W-PLAIN-S

410F1800

Unavailable

32160B

FRAME-COMP,RR,BLACK

32160-1120-10

$1,214.90

92015

NUT,18MM

92015-1404

$21.97

92015A

NUT,25MM,T=12

92015-1546

$19.66

92022

WASHER,CLAW,18.5X30X2.3

92022-1555

$7.49

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

$7.08

92049A

SEAL-OIL,XMH33 70 6.4J-A

92049-1313

$21.61

92055

RING-O,ID=24.5

92055-1459

$3.60

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

$32.44

92116A

BEARING-ROLLER,HI-CAP32005JR-1

92116-1056

$43.76

92150

BOLT,FLANGED,10X20

92150-1410

$4.88

32160

FRAME-COMP,FR,G.GRAY

32160-1118-GD

Unavailable

32160A

FRAME-COMP,FR,G.GRAY

32160-1118-HN

$704.97
