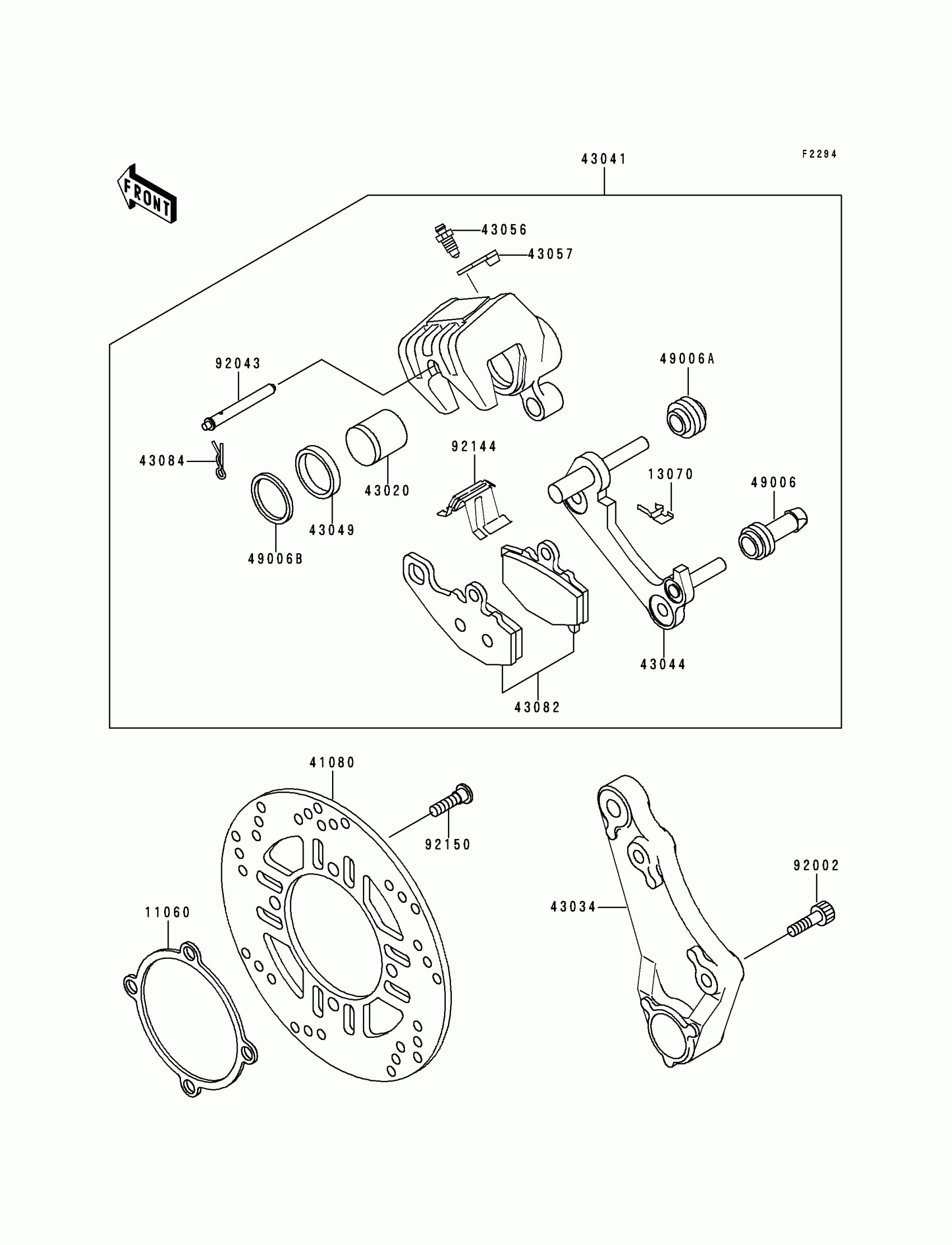

Kawasaki Ninja® ZX™-6 Rear Brake Diagram

Description

Price

11060

GASKET,DISC PLATE

11060-1357

Unavailable

13070

GUIDE,BRAKE PAD

13070-1273

Unavailable

41080

DISC,RR,C.GRAY

41080-1255-FB

$316.23

43020

PISTON-COMP-BRAKE

43020-1108

$65.03

43034

HOLDER-BRAKE,REAR CALIPER

43034-1125

$176.14

43041

CALIPER-ASSY,RR,M.F.GRAY

43041-1501-FE

$509.44

43044

HOLDER-COMP-CALIPER,RR

43044-1110

$147.38

43049

PACKING,PISTON SEAL

43049-001

$8.41

43056

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082

PAD-ASSY-BRAKE

43082-1157

$68.49

43084

CLAMP,PAD

43084-003

$3.29

49006

BOOT,CALIPER

49006-1054

$8.83

49006A

BOOT,CALIPER

49006-1095

$5.55

49006B

BOOT,PISTON SEAL

49006-1212

$18.77

92002

BOLT,SOCKET,8X20

92002-1178

$3.85

92043

PIN,PAD

92043-1489

$4.93

92144

SPRING,PAD

92144-1719

$37.56

92150

BOLT,SOCKET,8X30

92150-1771

$3.57
