1995 Kawasaki Ninja® ZX™-6 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 1995 Kawasaki Ninja® ZX™-6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

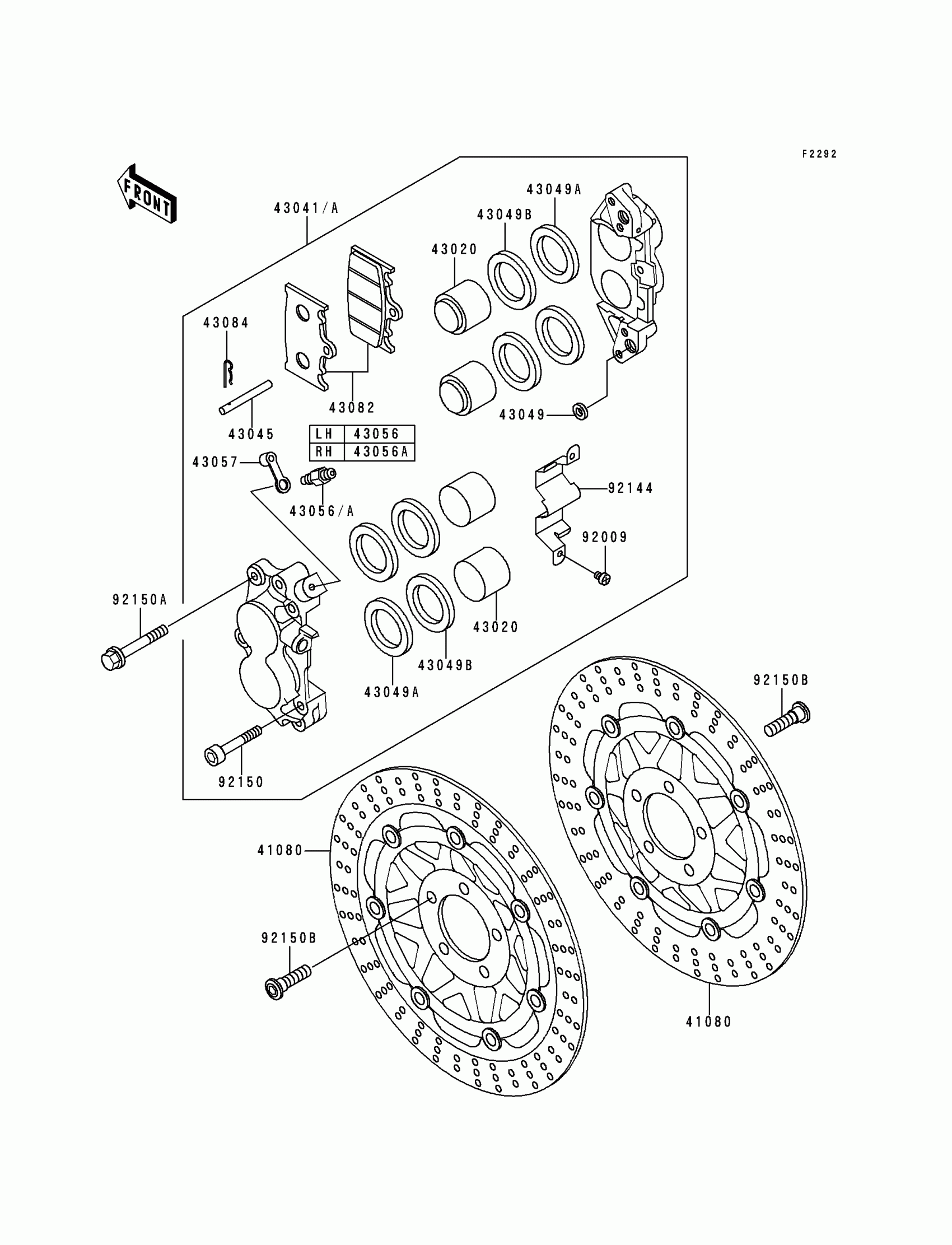

1995 Kawasaki Ninja® ZX™-6 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR,GRAY

41080-1352-FF

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1089

1
Out of stock

43041

CALIPER-ASSY,FR,LH,M.F.GRAY

43041-1497-FE

1
Out of stock

43041A

CALIPER-ASSY,FR,RH,M.F.GRAY

43041-1498-FE

1
Out of stock

43045

SHAFT-CALIPER

43045-007

1
Out of stock

43049

PACKING,SEAL,6.5X11.5X2.2

43049-1004

1
Out of stock

43049A

PACKING,PISTON SEAL

43049-1067

1
Out of stock

43049B

PACKING

43049-1068

1
Out of stock

43056

BREATHER

43056-003

1
Out of stock

43056A

BREATHER-BRAKE

43056-1054

1
Out of stock

43057

CAP-BREATHER

43057-003

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-1142

1
Out of stock

43084

CLAMP,PAD

43084-003

1
Out of stock

92009

SCREW,4X6

92009-1569

1
Out of stock

92144

SPRING

92144-1399

1
Out of stock

92150

BOLT,SOCKET,8X40

92150-1272

1
Out of stock

92150A

BOLT,FLANGED,10X38

92150-1297

1
Out of stock

92150B

BOLT,8X30

92150-1728

1
Out of stock
