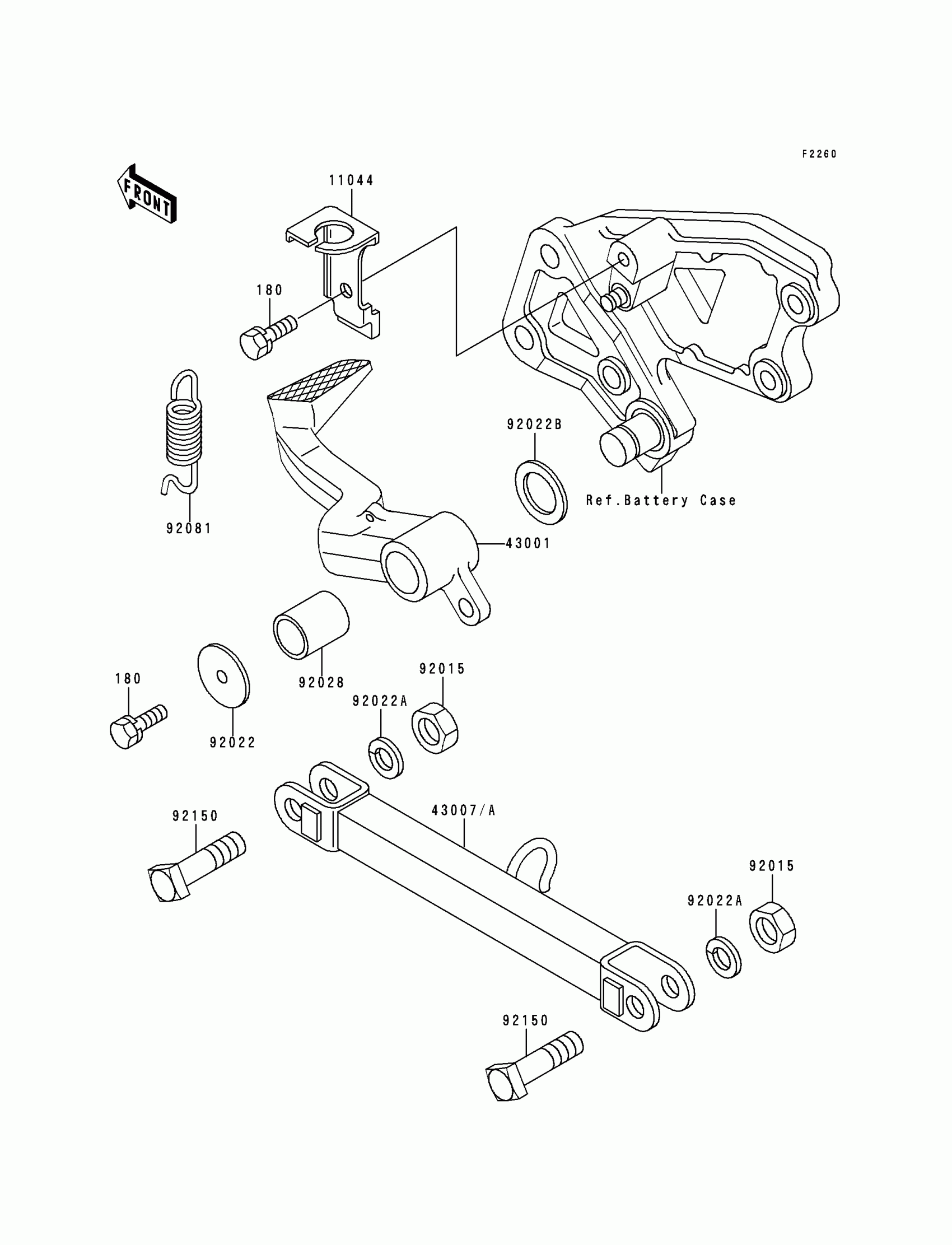

Kawasaki Ninja® ZX™-6 Brake Pedal/Torque Link Diagram

Description

Price

180

BOLT-UPSET-WS,6X14

180H0614

Unavailable

11044

BRACKET,RR BRAKE SWITCH

11044-1107

$10.24

43001

LEVER-BRAKE,PEDAL

43001-1224

$106.18

92015

NUT,LOCK,10MM

92015-1962

$4.59

92022

WASHER,7X28X1.6

92022-1282

$3.57

92022A

WASHER,SPRING,10MM

92022-1540

$3.14

92022B

WASHER,15.3X24X1

92022-326

$2.99

92028

BUSHING,BRAKE PEDAL

92028-1282

$13.39

92081

SPRING,BRAKE PEDAL

92081-1833

$7.76

92150

BOLT,10X37

92150-1901

$5.97

43007

ROD-TORQUE,SILVER NO.35

43007-1170-TX

Unavailable

43007A

ROD-TORQUE,SILVER NO.35

43007-1170-VZ

$74.08
