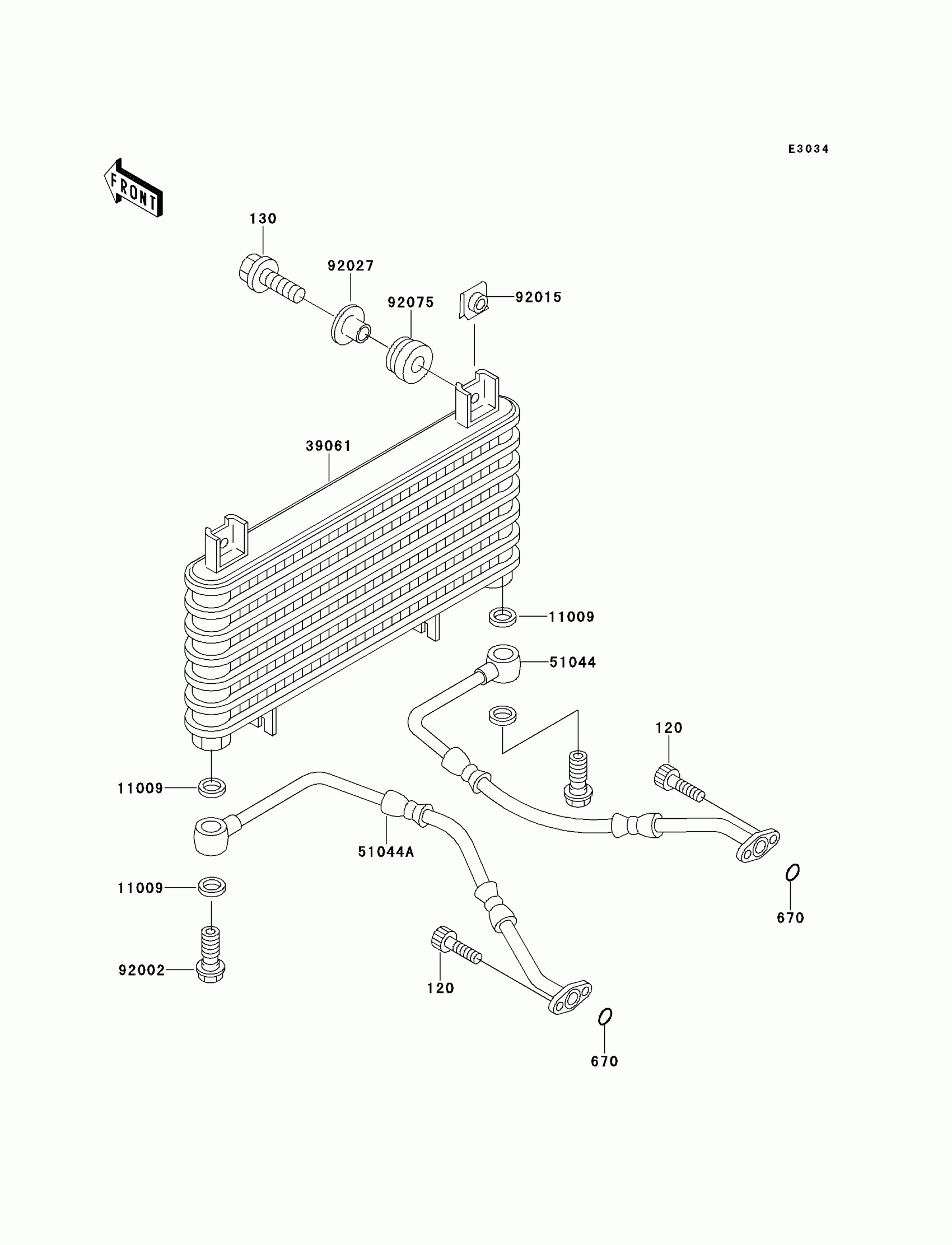

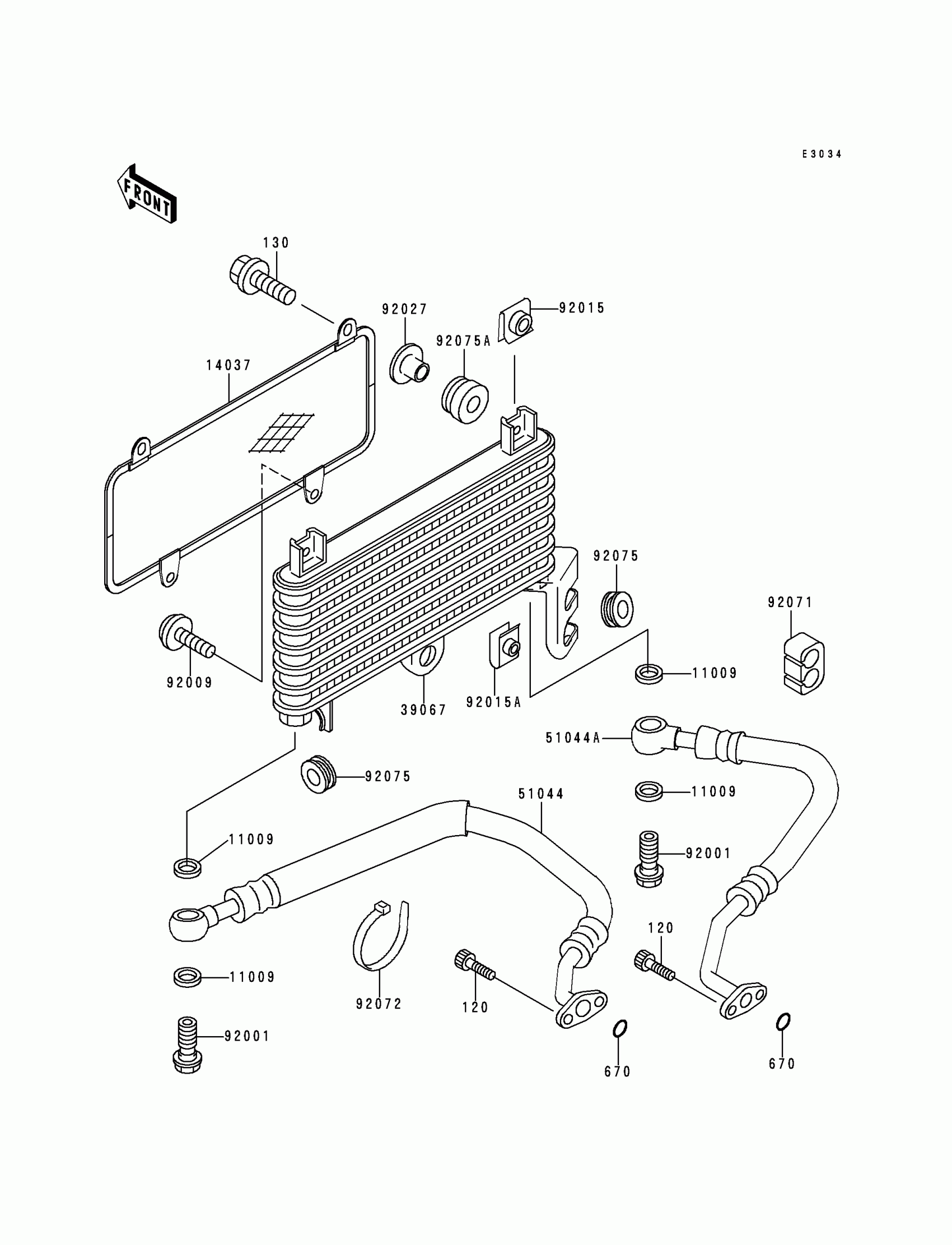

Kawasaki Ninja® ZX™-6 Oil Cooler Diagram

#

Description
Price

120

BOLT-SOCKET,6X16

120S0616

Unavailable

130

BOLT-FLANGED,6X25

130J0625

Unavailable

670

O RING,10MM

670B2010

$1.13

11009

GASKET,14X19.5X1.4

11009-1461

$4.04

39061

OIL COOLER

39061-1095

$643.19

51044

TUBE-ASSY

51044-1122

Unavailable

51044A

TUBE-ASSY

51044-1123

Unavailable

92002

BOLT,14X28.5

92001-1930

$9.59

92015

NUT

92015-1487

$3.64

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$3.98

92075

DAMPER

92075-277

$1.90
