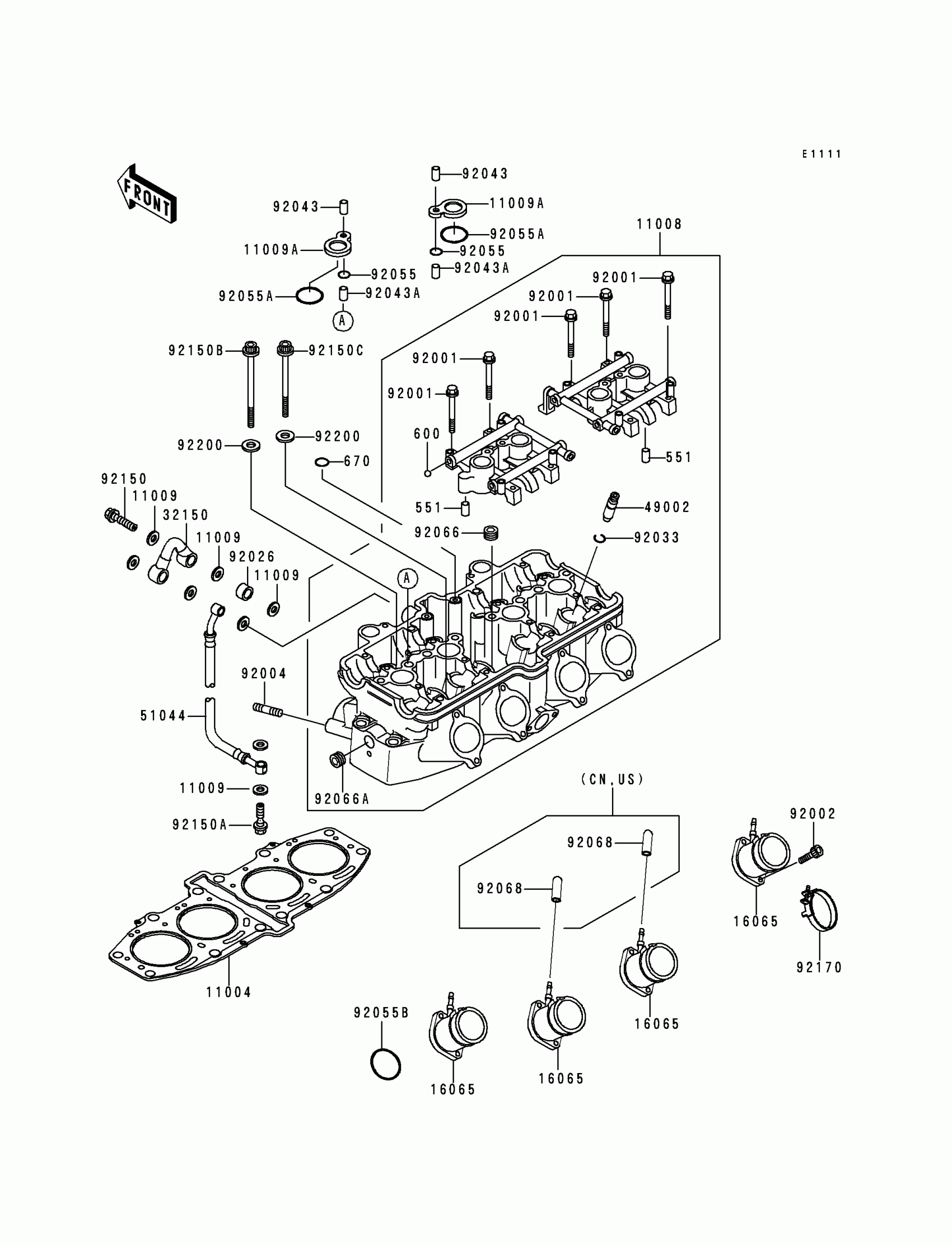

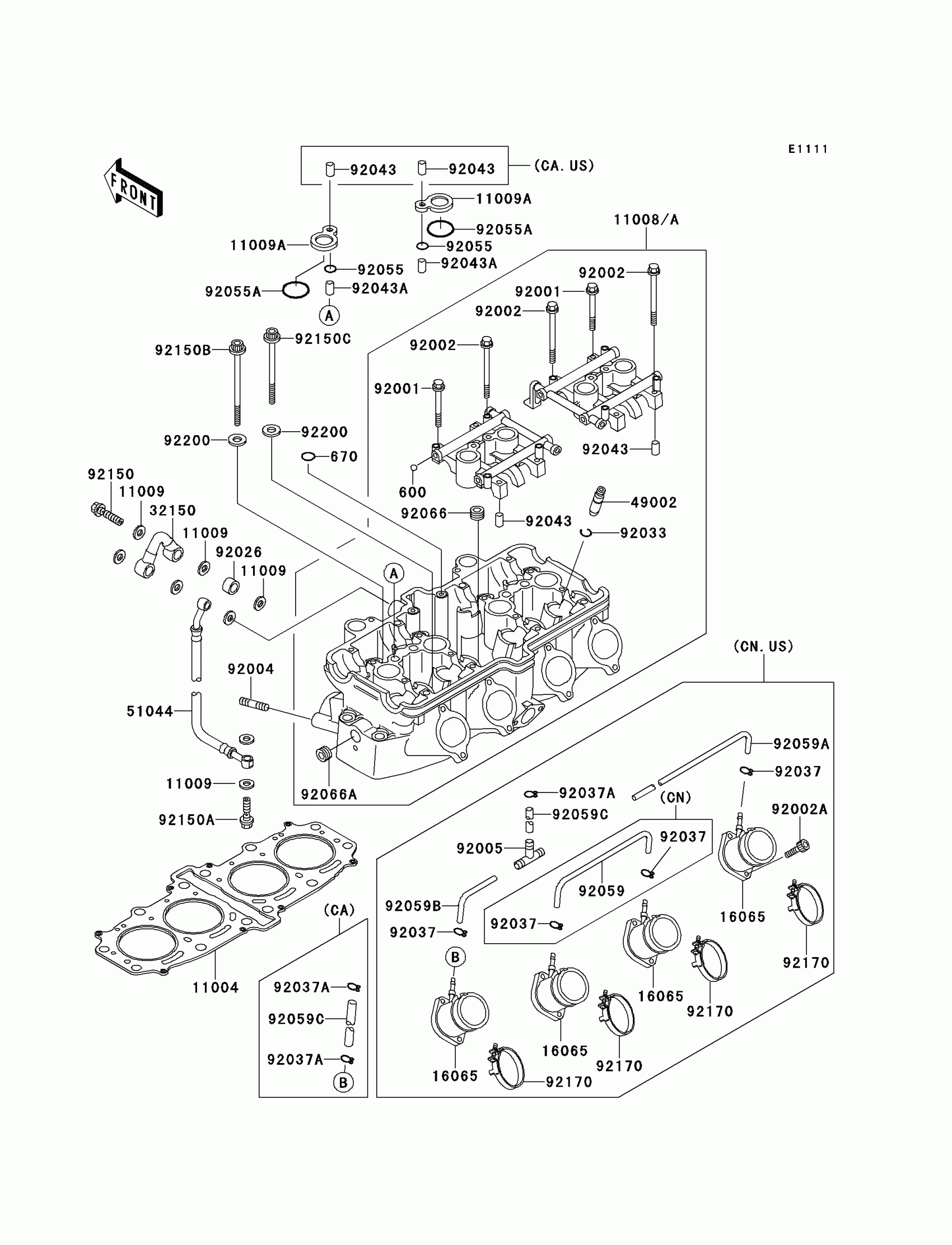

Kawasaki Ninja® ZX™-6 Cylinder Head Diagram

#

Description
Price

11004

GASKET-HEAD

11004-1206

Unavailable

11009

GASKET,10X14.5X1.5

11009-1105

$4.88

11009A

GASKET,SPARK PLUG

11009-1854

Unavailable

16065

HOLDER-CARBURETOR

16065-1213

Unavailable

32150

PIPE,HEAD

32150-1621

Unavailable

49002

GUIDE-VALVE

49002-1107

Unavailable

51044

TUBE-ASSY,HEAD-OIL PAN

51044-1121

$139.17

92001

BOLT,FLANGED,6X38

92001-1105

$3.57

92002

BOLT,6X46

92001-1872

$3.29

92002A

BOLT,6X16

92002-1143

$2.99

92004

STUD,8X18

92004-1186

$4.58

92026

SPACER,10.5X15.1X10

92026-1393

$5.32

92033

RING-SNAP

92033-1247

$2.98

92055A

RING-O

92055-1470

$3.34

92059C

TUBE,4X9X500,WHITE

92059-1533

$14.40

92066

PLUG,PT1/2X12.5

92066-1253

$6.85

92066A

PLUG,PT3/8X10

92066-1346

$7.44

600

BALL-STEEL,9/32

600A0900

$2.68

670

O RING,8MM

670D1508

$3.29

92150

BOLT,BANJO,10X37

92150-1122

$8.47

92150A

BOLT,BANJO,10X23

92150-1123

Unavailable

92150B

BOLT,10X165

92150-1368

$17.66

92150C

BOLT,10X151

92150-1369

$18.69

92170

CLAMP

92170-1146

$9.56

92200

WASHER,10.5X19X2.3

92200-1042

$2.99

11008

HEAD-COMP-CYLINDER

11008-1241

Unavailable

11008A

HEAD-COMP-CYLINDER

11008-1242

Unavailable

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92037

CLAMP

92037-1610

$1.42

92037

CLAMP

92037-1610

$1.42

92037A

CLAMP

92037-1712

$3.81

92037A

CLAMP

92037-1712

$3.81

92043

PIN,6.2X8X14

92043-1263

$0.46

92043

PIN,6.2X8X14

92043-1263

$0.46

92043A

PIN,8.2X10X14

92043-1264

$0.51

92055

RING-O,11.5X1.5

92055-1469

$2.25

92059

TUBE,4X9X155

92059-1033

$14.40

92059A

TUBE,4X9X230

92059-1068

$14.40

92059B

TUBE,4X9X80

92059-1365

$12.97
