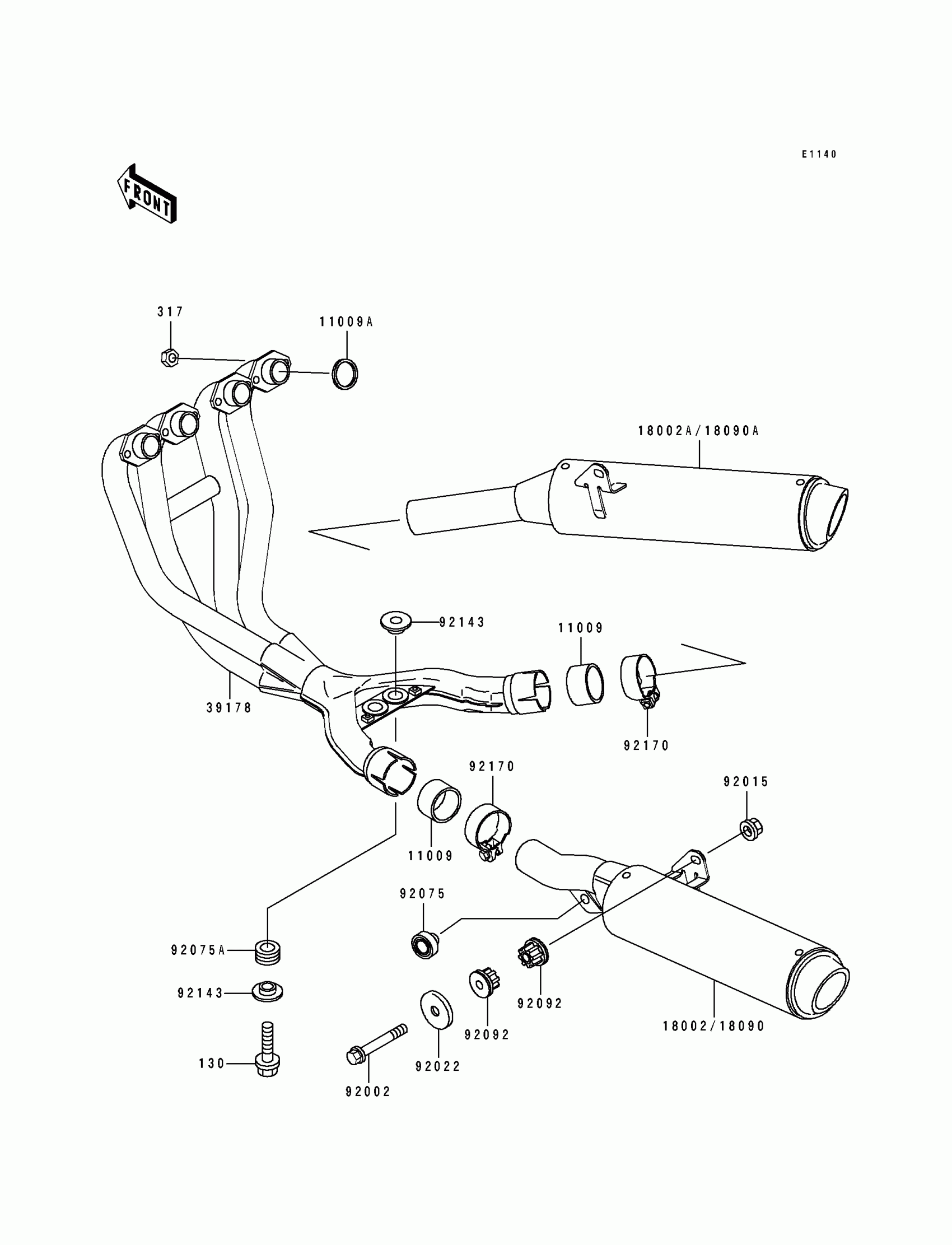

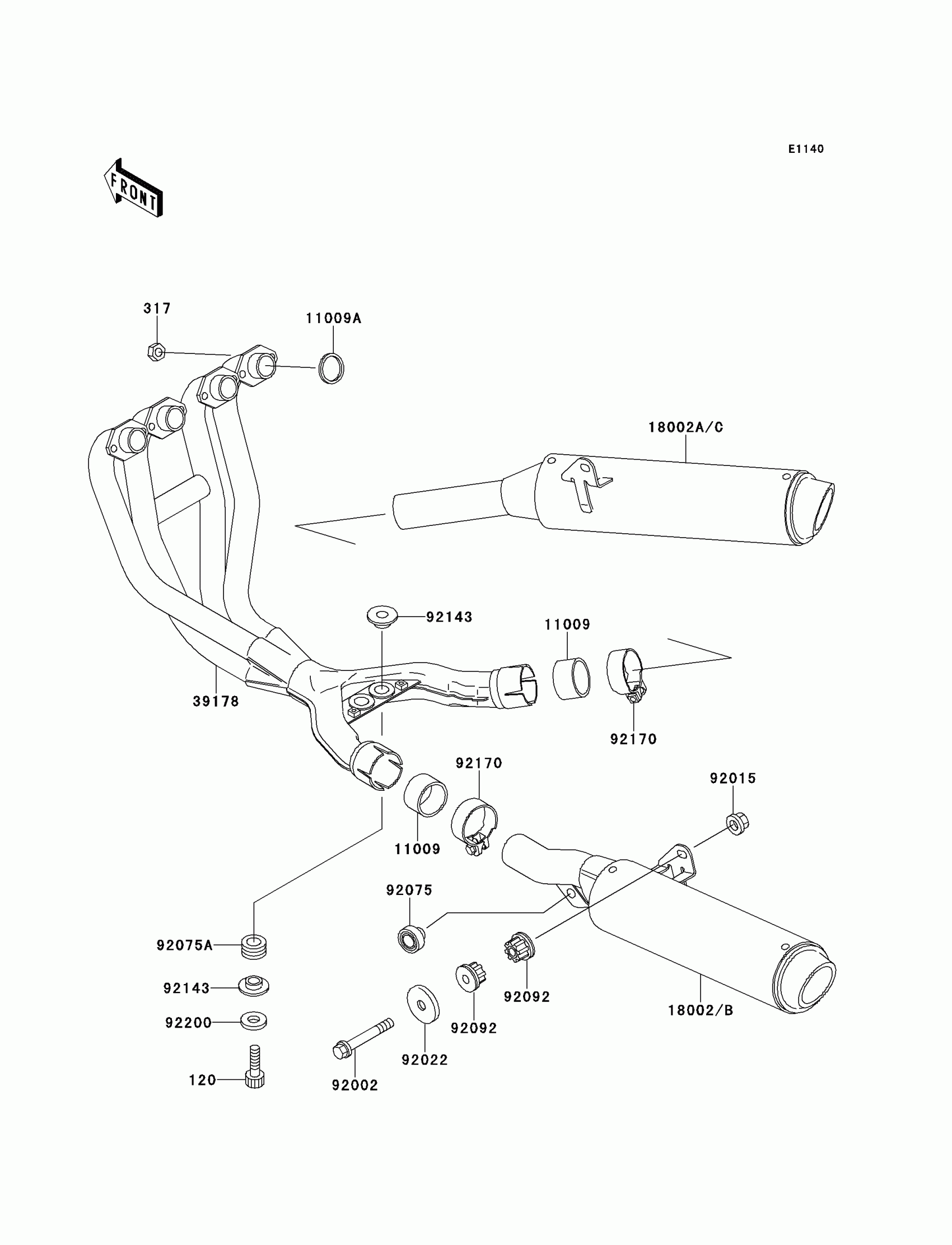

Kawasaki Ninja® ZX™-6 Muffler Diagram

Description

Price

120

BOLT-SOCKET,10X35

120P1035

Unavailable

317

NUT-HEX-SMALL,8MM,BLACK

317J0800

Unavailable

11009

GASKET,EXHAUST PIPE

11009-1680

Unavailable

11009A

GASKET,EXHAUST PIPE HOLDER

11009-1856

$4.28

39178

MANIFOLD-COMP-EXHAUST

39178-1158

$1,237.14

92002

BOLT,10X55

92002-1127

$9.27

92015

NUT,FLANGED,10MM

92015-1387

$3.29

92022

WASHER

92022-289

$12.40

92075

DAMPER

92075-015

$3.81

92075A

DAMPER,MUFFLER

92075-1621

$8.05

92092

BUSHING-RUBBER,MUFFLER

92092-1013

$13.15

92143

COLLAR

92143-1395

$7.12

92170

CLAMP

92170-1154

$34.32

92200

WASHER,10.5X19X2.3

92200-1042

$2.99

18002

BODY-COMP-MUFFLER,LH

18002-1947

$591.05

18002A

BODY-COMP-MUFFLER,RH

18002-1948

$591.05

18002B

BODY-COMP-MUFFLER,LH

18002-1982

Unavailable

18002C

BODY-COMP-MUFFLER,RH

18002-1983

Unavailable
