1990 Kawasaki Ninja® ZX™-6 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1990 Kawasaki Ninja® ZX™-6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

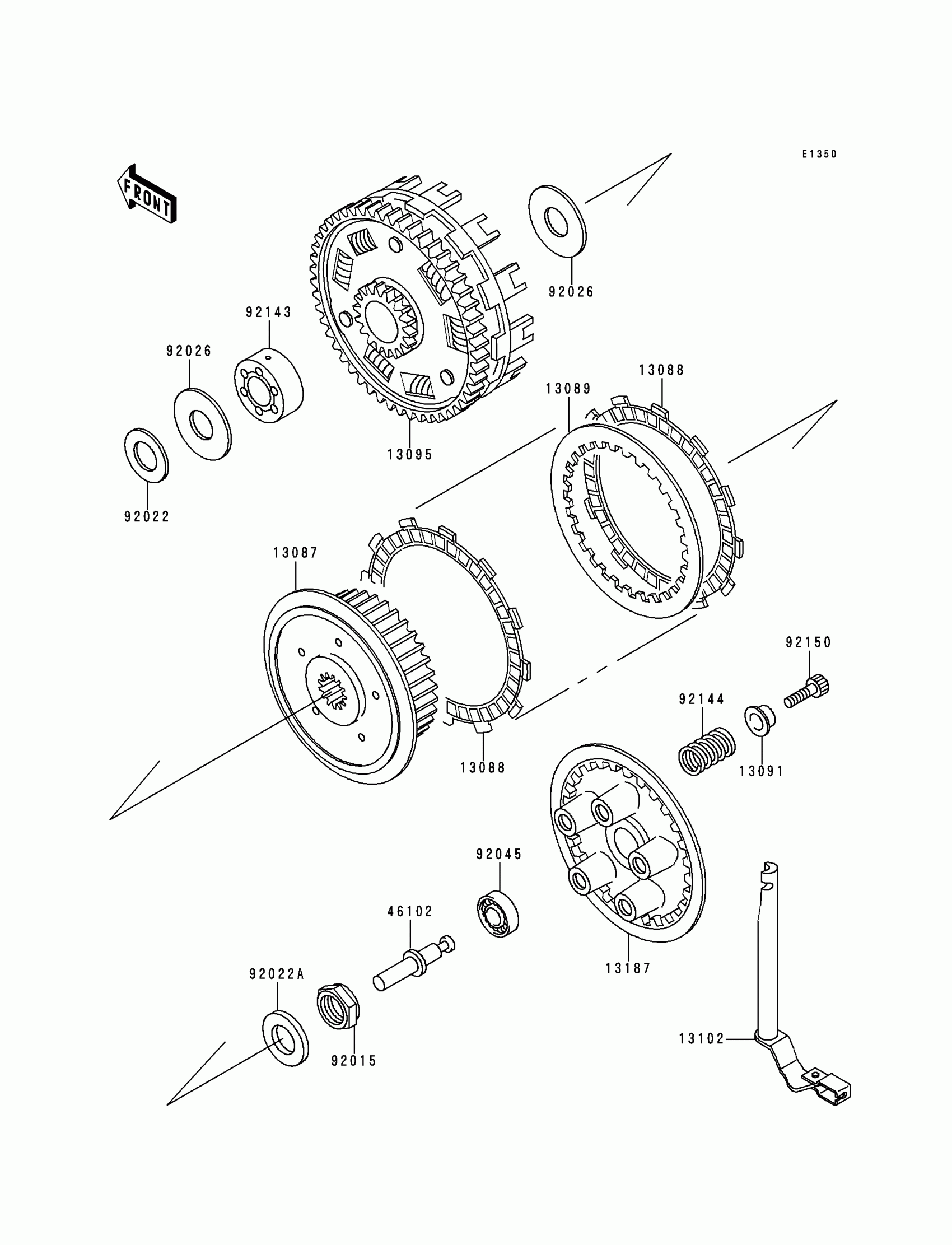

1990 Kawasaki Ninja® ZX™-6 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13087

HUB-CLUTCH

13087-042

1
Out of stock

13088

PLATE-FRICTION

13088-1062

1
Out of stock

13089

PLATE-CLUTCH,T=2.3

13089-1004

1

$10.41

In stock

13095

HOUSING-COMP-CLUTCH

13095-1217

1
Out of stock

13102

RELEASE-COMP-CLUTCH

13102-1105

1

$77.87

In stock

13187

1

$76.98

In stock

46102

ROD,CLUTCH

46102-1030

1

$27.10

In stock

92001

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

WASHER,25.5X38X1

92022-145

1

$7.22

In stock

92022A

WASHER,20.3X36X3.7

92022-1868

1
Out of stock

92026

SPACER,25X66X2.0

92026-1383

1

$11.41

In stock

92045

1

$12.85

In stock

92081

SPRING,CLUTCH

92081-1033

1

$5.88

In stock

92143

COLLAR

92143-1387

1

$108.97

In stock
