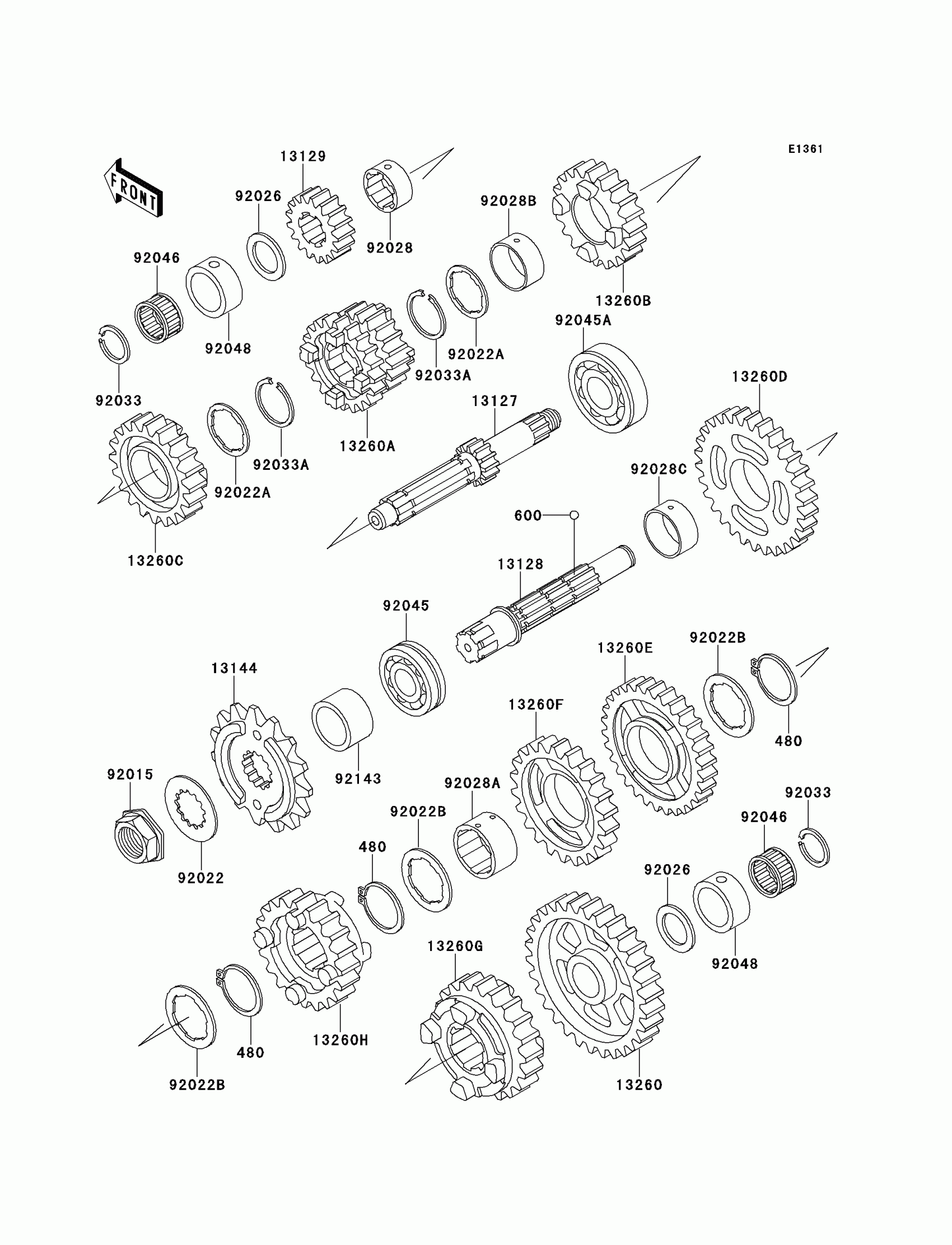

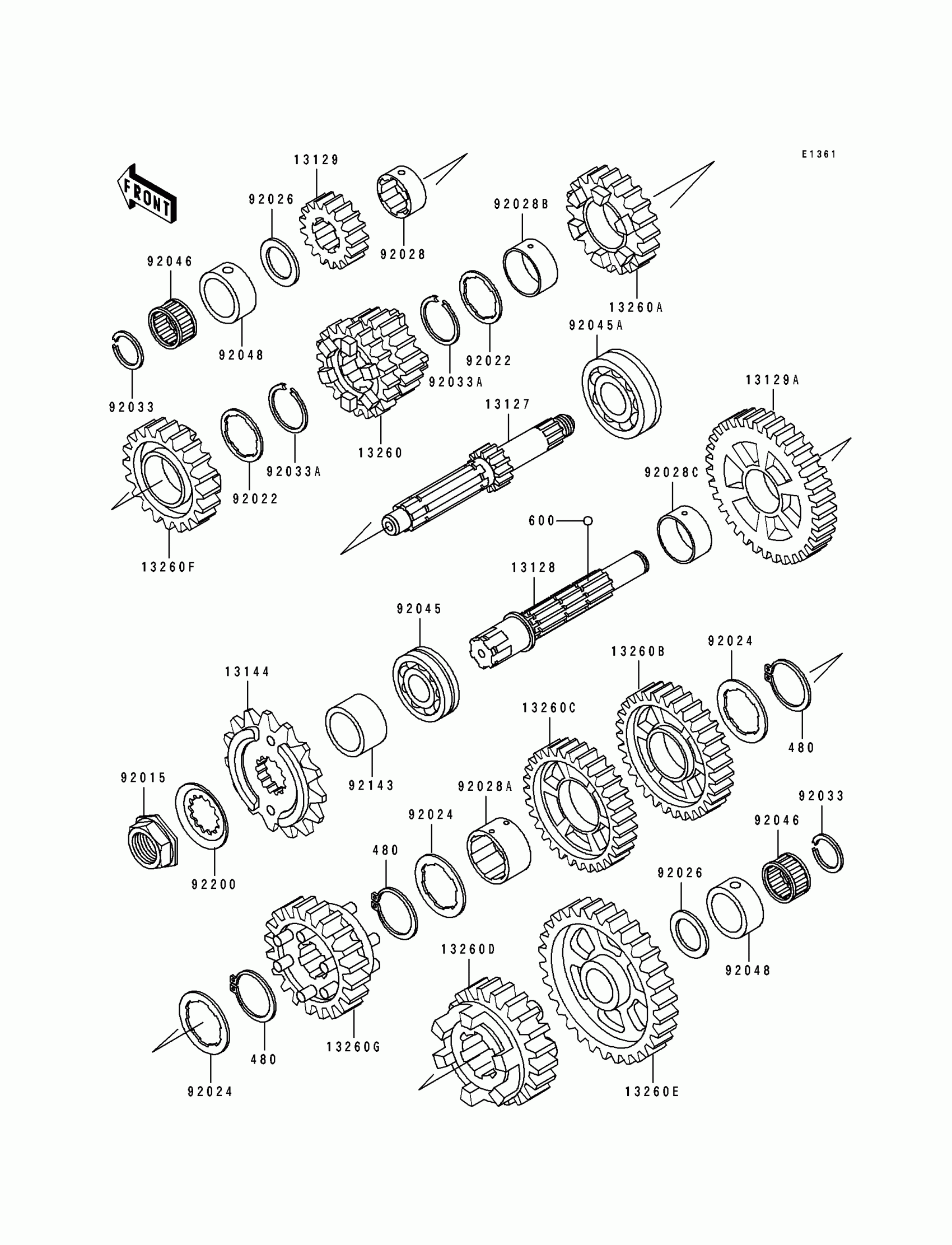

Kawasaki Ninja® ZX™-6 Transmission Diagram

#

Description
Price

480

CIRCLIP

480J2900

$5.42

600

BALL-STEEL,5/32

600A0500

$0.80

13127

SHAFT-TRANSMISSION INPUT,12T

13127-1198

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

13128-1176

Unavailable

13129

GEAR,INPUT 2ND,16T

13129-1810

Unavailable

13144

SPROCKET-OUTPUT,15T

13144-1164

Unavailable

13260

GEAR,OUTPUT LOW,38T

13260-1125

Unavailable

13260A

GEAR,INPUT 3RD&4TH,35T&29T

13260-1142

Unavailable

13260B

GEAR,INPUT 5TH,23T

13260-1143

Unavailable

13260C

GEAR,INPUT TOP,24T

13260-1144

Unavailable

13260D

GEAR,OUTPUT 2ND,34T

13260-1145

Unavailable

13260E

GEAR,OUTPUT 3RD,35T

13260-1146

Unavailable

13260F

GEAR,OUTPUT 4TH,29T

13260-1147

Unavailable

13260G

GEAR,OUTPUT 5TH,28T

13260-1148

Unavailable

13260H

GEAR,OUTPUT TOP,26T

13260-1149

Unavailable

92015

NUT,20MM

92015-1254

$11.79

92022

WASHER,TOOTHED,25.5X42X1

92022-1076

$5.25

92022A

WASHER,TOOTHED,28.3X33.5X1

92022-1139

$5.74

92022B

WASHER,TOOTHED,30.3X40X1.5

92024-043

$12.47

92026

SPACER,22X35.5X2.1

92026-1224

$9.27

92028

BUSHING,INPUT TOP GEAR

92028-1255

$41.11

92028A

BUSHING,OUTPUT 3RD&4TH

92028-1363

$46.37

92028B

BUSHING,INPUT GEAR

92028-1449

$24.03

92028C

BUSHING,OUTPUT 2ND

92028-1450

$29.55

92033

RING-SNAP,20X25.5X1.2

92033-025

$3.94

92033A

RING-SNAP,25.9X30.6X1.2

92033-1037

$3.69

92045

BEARING-BALL,83993SH2-CS

92045-035

$74.98

92045A

BEARING-BALL,6305N2SH2

92045-1224

$37.61

92046

BEARING-NEEDLE,FWF-223014

92046-031

$18.28

92048

RACE,NEEDLE BEARING

92048-1066

$35.51

92143

COLLAR,25X32X17.2

92143-1427

$17.14
