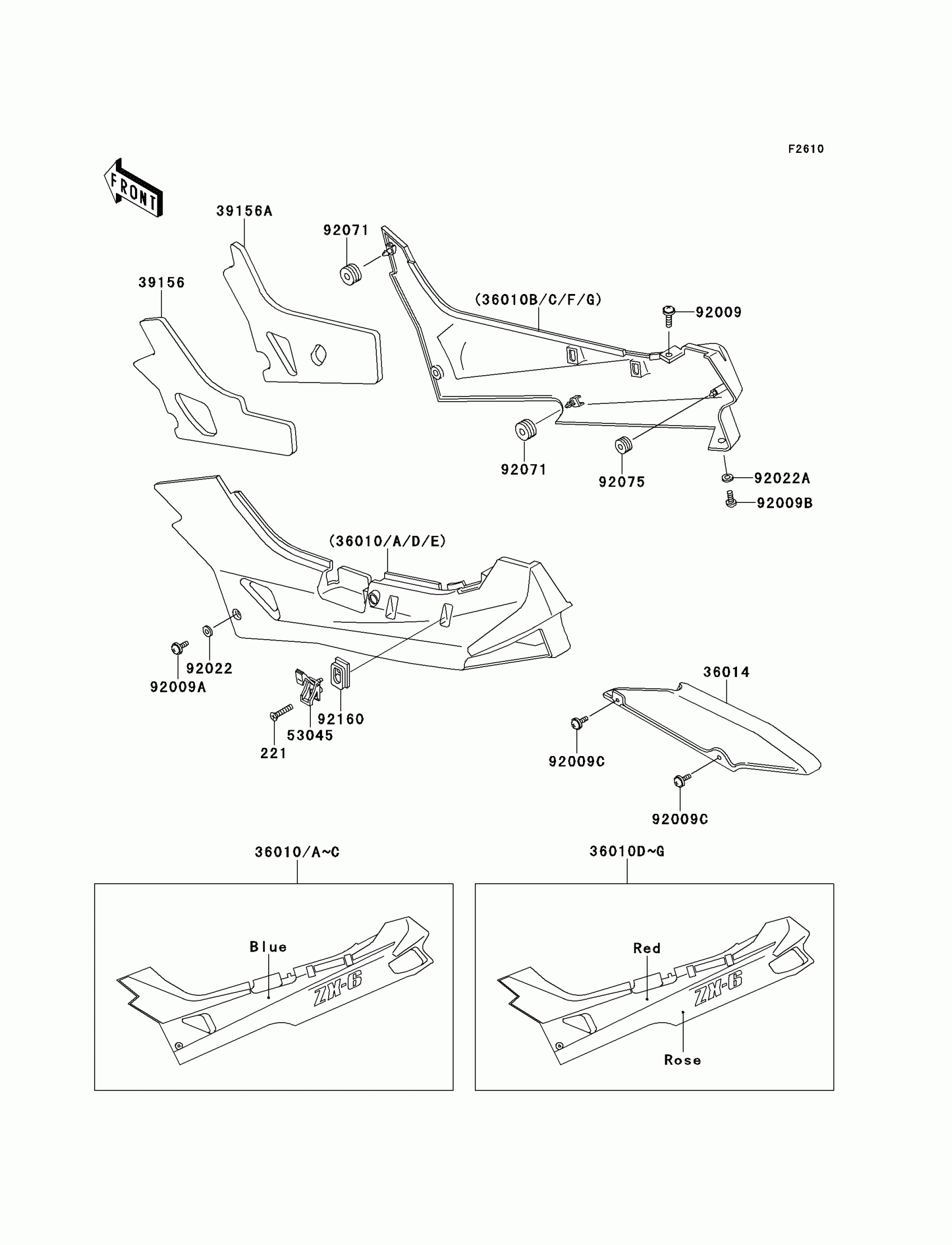

Kawasaki Ninja® ZX™-6 Side Cover/Chain Case Diagram

Description

Price

221

SCREW-CSK-CROS,6X25

221E0625

$3.32

36014

CASE-CHAIN

36014-1164

$111.51

39156

PAD,SIDE COVER,LH

39156-1202

$38.87

39156A

PAD,SIDE COVER,RH

39156-1203

Unavailable

53045

HOOK-ASSY,TOOL BOX

53045-1053

$42.33

92009

SCREW,6X18,BLACK

92009-1181

$1.98

92009A

SCREW,6X14

92009-1288

$2.99

92009B

SCREW,5X16,BLACK

92009-1301

$2.17

92009C

SCREW,6X10

92009-1402

$1.73

92022

WASHER,6.5X16X1

92022-1143

$2.99

92022A

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$2.99

92071

GROMMET

92071-056

$3.25

92075

DAMPER

92075-1629

$3.81

92160

DAMPER,ROPE HOOK

92160-1042

$5.37

36010

COVER-SIDE,LH,BLUE/BLUE

36010-5368-GX

Unavailable

36010A

COVER-SIDE,LH,BLUE/BLUE

36010-5368-HK

$209.26

36010B

COVER-SIDE,RH,BLUE/BLUE

36010-5369-GX

Unavailable

36010C

COVER-SIDE,RH,BLUE/BLUE

36010-5369-HK

$209.26

36010D

COVER-SIDE,LH,RED/ROSE OPERA

36010-5370-HF

Unavailable

36010E

COVER-SIDE,LH,RED/ROSE OPERA

36010-5370-HP

Unavailable

36010F

COVER-SIDE,RH,RED/ROSE OPERA

36010-5371-HF

Unavailable

36010G

COVER-SIDE,RH,RED/ROSE OPERA

36010-5371-HP

Unavailable
