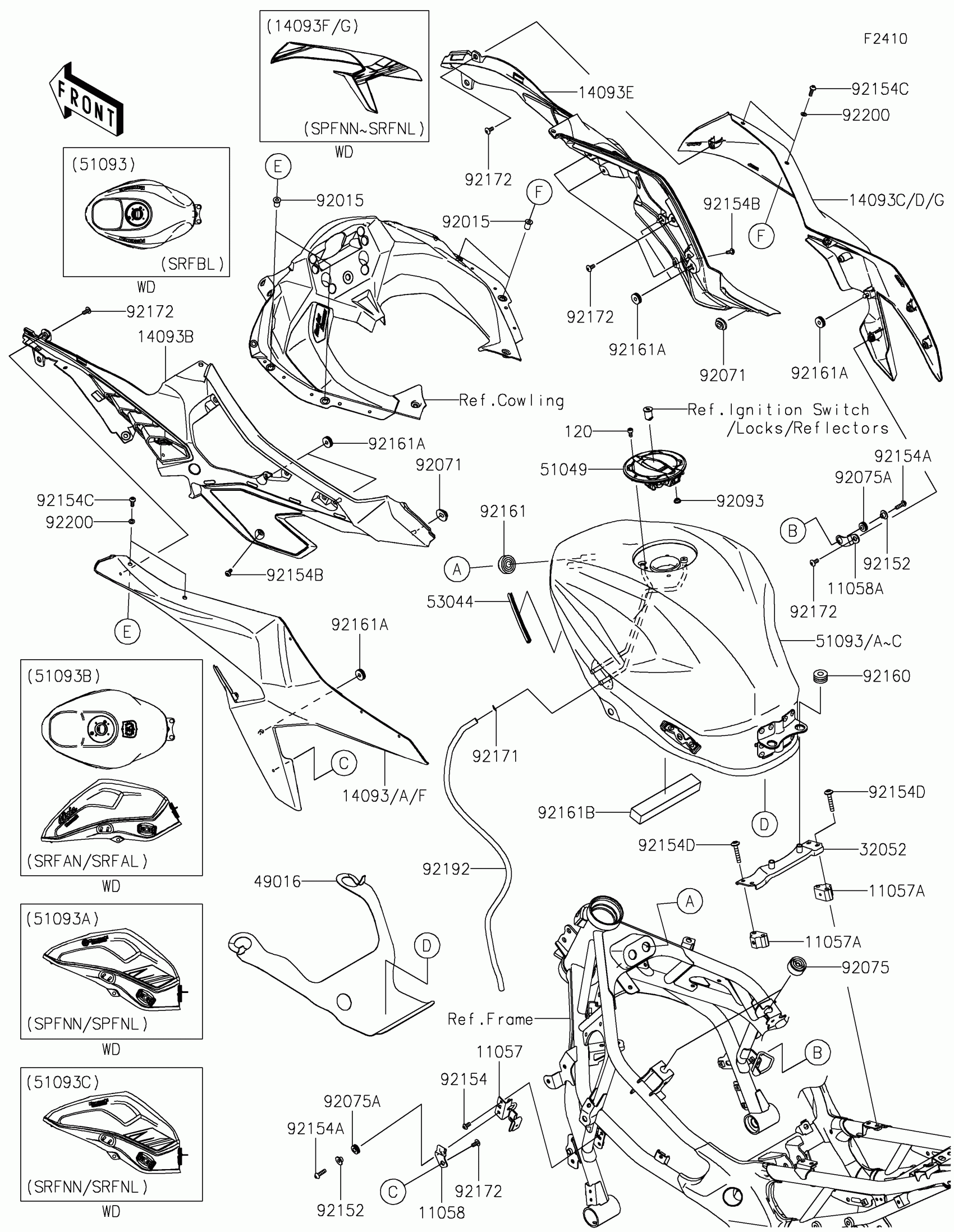

Kawasaki Ninja ZX-4RR Fuel Tank Diagram

#

Description
Price

11057

BRACKET,KNEE GRIP COVER

11057-2917

$8.85

11057A

BRACKET

11057-7937

$20.31

11058

BRACKET,KNEE GRIP COVER,LH

11058-0610

Unavailable

11058A

BRACKET,KNEE GRIP COVER,RH

11058-1068

$3.68

14093B

COVER,KNEE GRIP,INNER,LH

14093-0962

$122.75

14093E

COVER,KNEE GRIP,INNER,RH

14093-0964

$122.75

14093F

COVER,KNEE GRIP,OUTER,LH,EBONY

14093-5404-H8

$268.42

14093G

COVER,KNEE GRIP,OUTER,RH,EBONY

14093-5453-H8

$301.98

32052

BRACKET-TANK

32052-0824

$14.20

49016

COVER-SEAL

49016-0702

$15.61

51049

CAP-TANK,FUEL

51049-0756

$139.17

51093A

TANK-COMP-FUEL,L.GREEN

51093-5067-777

$1,034.02

51093C

TANK-COMP-FUEL,L.GREEN

51093-5280-777

$1,034.02

53044

TRIM,105MM

53044-0627

$2.61

92015

NUT,WELL,5MM

92015-1757

$5.58

92071

GROMMET,20X24X7.5

92071-0766

$1.09

92075

DAMPER

92075-015

$3.81

92075A

DAMPER

92075-161

$3.57

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92152

COLLAR

92152-0017

$1.98

92154

BOLT,SOCKET,5X10

92154-1691

$1.32

92154A

BOLT,SOCKET,5X18

92154-2107

$1.54

92154B

BOLT,SOCKET,5X10

92154-2548

$1.14

92154C

BOLT,SOCKET,5X16

92154-4294

$1.95

92154D

BOLT,SOCKET,6X30

92154-4487

$1.44

92160

DAMPER

92160-1162

$3.81

92161

DAMPER,10X32X8

92161-1791

$1.88

92161A

DAMPER,6X19X5.6

92161-1911

$0.76

92161B

DAMPER,150X25X20

92161-2305

$8.00

92171

CLAMP,8X0.7

92171-1973

$1.04

92172

SCREW,5X12

92172-0821

$0.73

92192

TUBE,DRAIN,1.5X6X685

92192-2278

$3.63

92200

WASHER,5.2X10X0.5

92200-1730

$0.60

120

BOLT-SOCKET,5X12

120CA0512

$1.19
