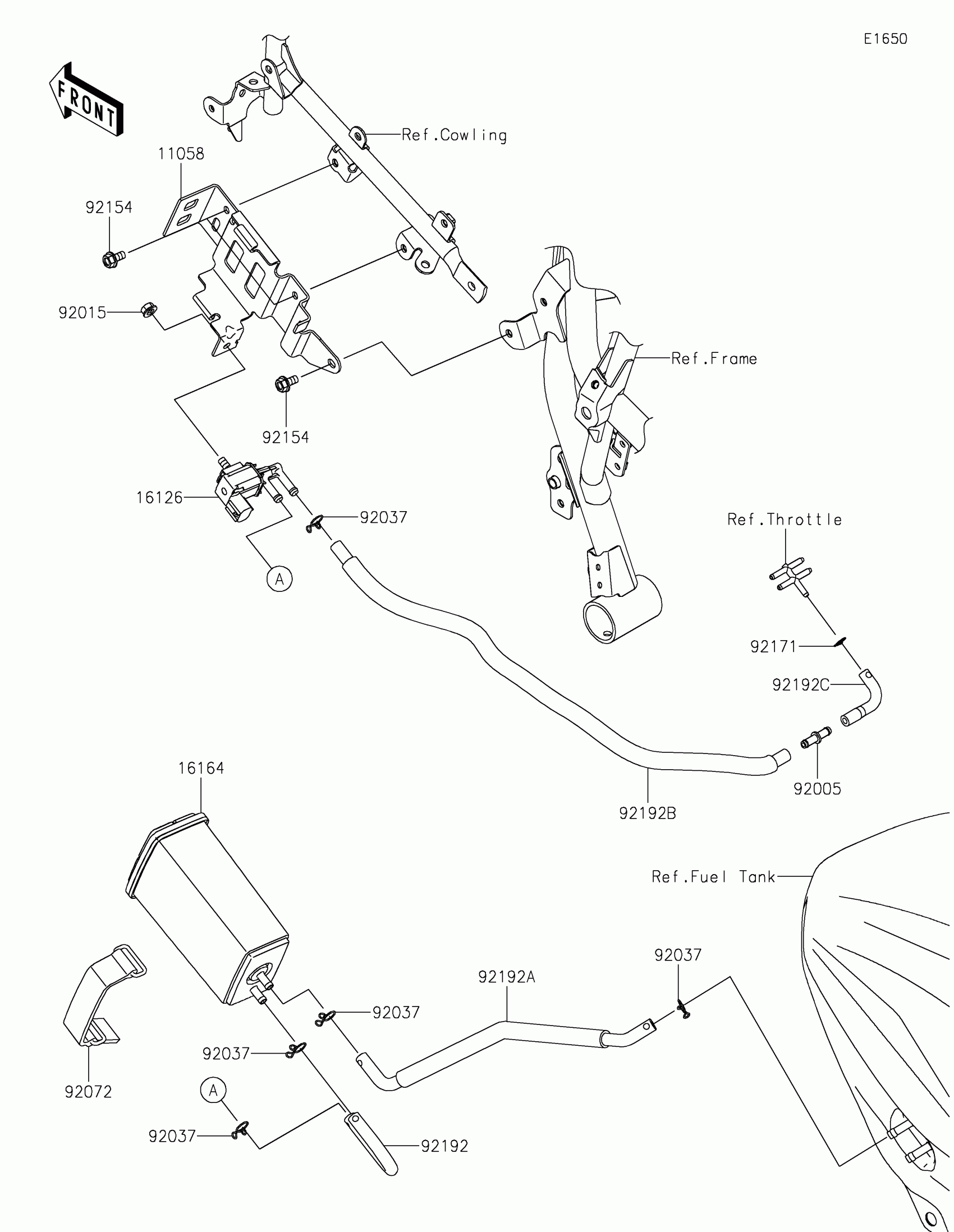

Kawasaki Ninja ZX-4RR Fuel Evaporative System Diagram

Description

Price

11058

BRACKET,CANISTER

11058-0547

$33.44

16126

VALVE,SOLENOID

16126-0705

$109.25

16164

CANISTER

16164-0012

$152.89

92005

FITTING

92005-0721

$8.85

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP,TUBE

92037-147

$5.61

92072

BAND,CANISTER

92072-0815

$10.36

92154

BOLT,FLANGED,6X12

92154-7035

$1.02

92171

CLAMP

92171-0573

$1.20

92192

TUBE,SOLENOID VALVE-FITTING

92192-1808

$25.24

92192A

TUBE,TANK-CANISTER

92192-2270

$45.43

92192B

TUBE,VALVE-FITTING

92192-2271

$50.69

92192C

TUBE,THB-FITTING

92192-2304

$21.58
