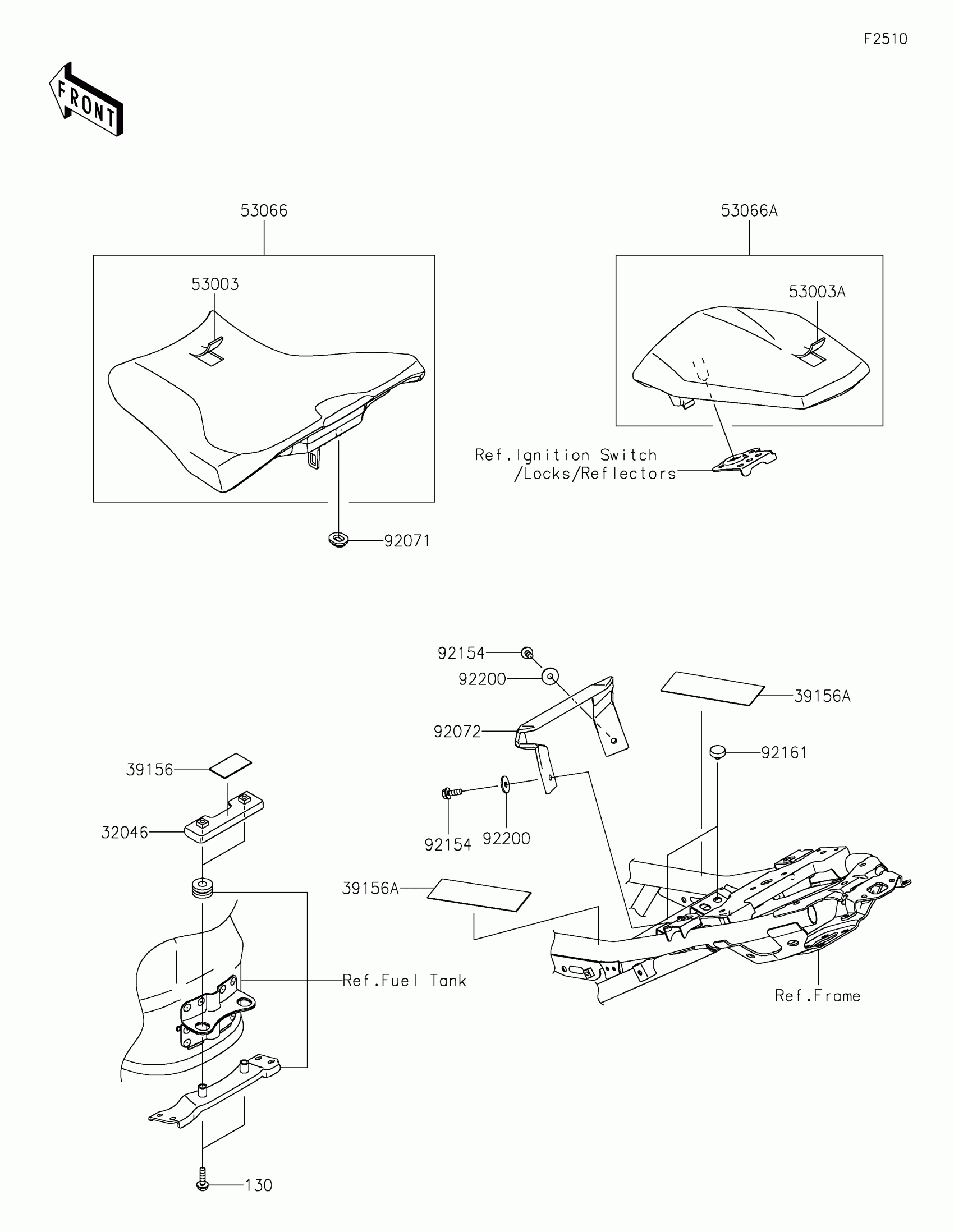

Kawasaki Ninja ZX-4R ABS Seat Diagram

Description

Price

32046

BRACKET-SEAT

32046-0453

$5.56

39156

PAD,45X26X1

39156-2607

$1.78

39156A

PAD,130X35X1

39156-2835

$7.61

53003

LEATHER,FR SEAT,BLACK

53003-0531-MA

$87.79

53003A

LEATHER,RR SEAT,BLACK

53003-0537-MA

$83.60

53066

SEAT-ASSY,FR,BLACK

53066-0670-MA

$220.58

53066A

SEAT-ASSY,RR,BLACK

53066-0671-MA

Unavailable

92071

GROMMET,20X24X7.5

92071-0766

$1.09

92072

BAND,SEAT,BLACK

92072-0861-MA

$9.44

92154

BOLT,FLANGED,6X16

92154-2900

$0.88

92161

DAMPER,9.5X18X6

92161-1473

$1.24

92200

WASHER,6.5X20X1.6

92200-1962

Unavailable

130

BOLT-FLANGED,6X22

130CA0622

$1.90
